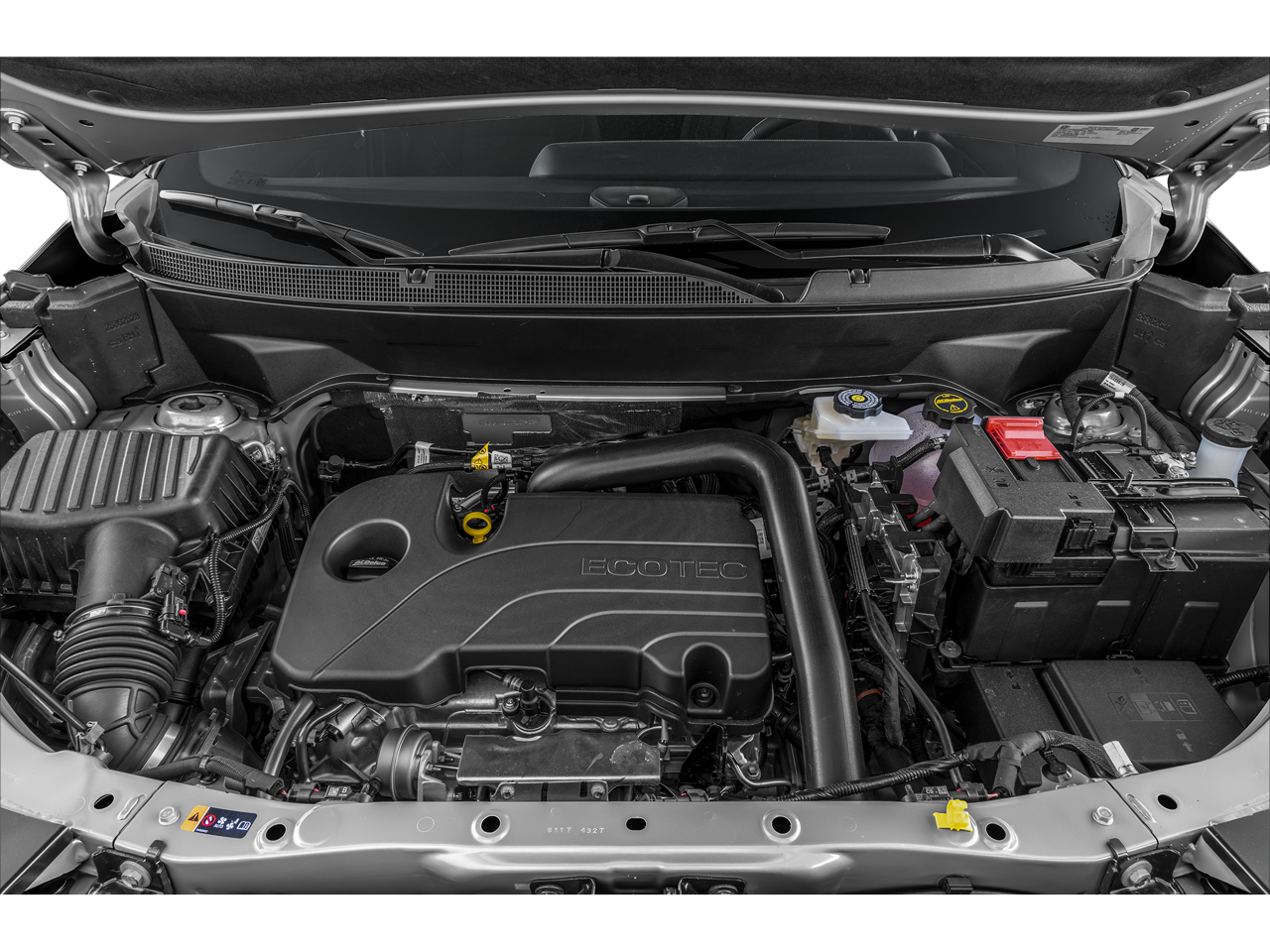

ENGINE, 1.5L TURBO DOHC 4-CYLINDER, SIDI, VVT

• (175 hp [131 kW] @ 5600 rpm
• 184 lb-ft of torque [250 Nm] @1750-4800 rpm). (STD)

• Vehicle
• EPA Classification: Small Sport Utility Vehicle 2WD
• Mileage
• Fuel Economy Est-Combined (MPG): 27
• EPA Fuel Economy Est - City (MPG): 26
• EPA Fuel Economy Est - Hwy (MPG): 28
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 760
• Maximum Alternator Capacity (amps): 130
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 3446
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 800
• Dead Weight Hitch - Max Tongue Wt. (lbs): 80
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 80
• Suspension
• Suspension Type - Front: McPherson Strut
• Suspension Type - Rear: 4-Link
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 16 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 16 x - TBD -
• Tires
• Front Tire Order Code: RJS
• Rear Tire Order Code: RJS
• Spare Tire Order Code: QCL
• Front Tire Size: 235/65R17
• Rear Tire Size: 235/65R17
• Spare Tire Size: T125/70R17
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 37.1
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14.8
• Exterior Dimensions
• Wheelbase (in): 107.48
• Length, Overall (in): 181
• Width, Max w/o mirrors (in): 74.5
• Height, Overall (in): 65.81
• Track Width, Front (in): 63.79
• Track Width, Rear (in): 63.87
• Min Ground Clearance (in): 5.75
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -

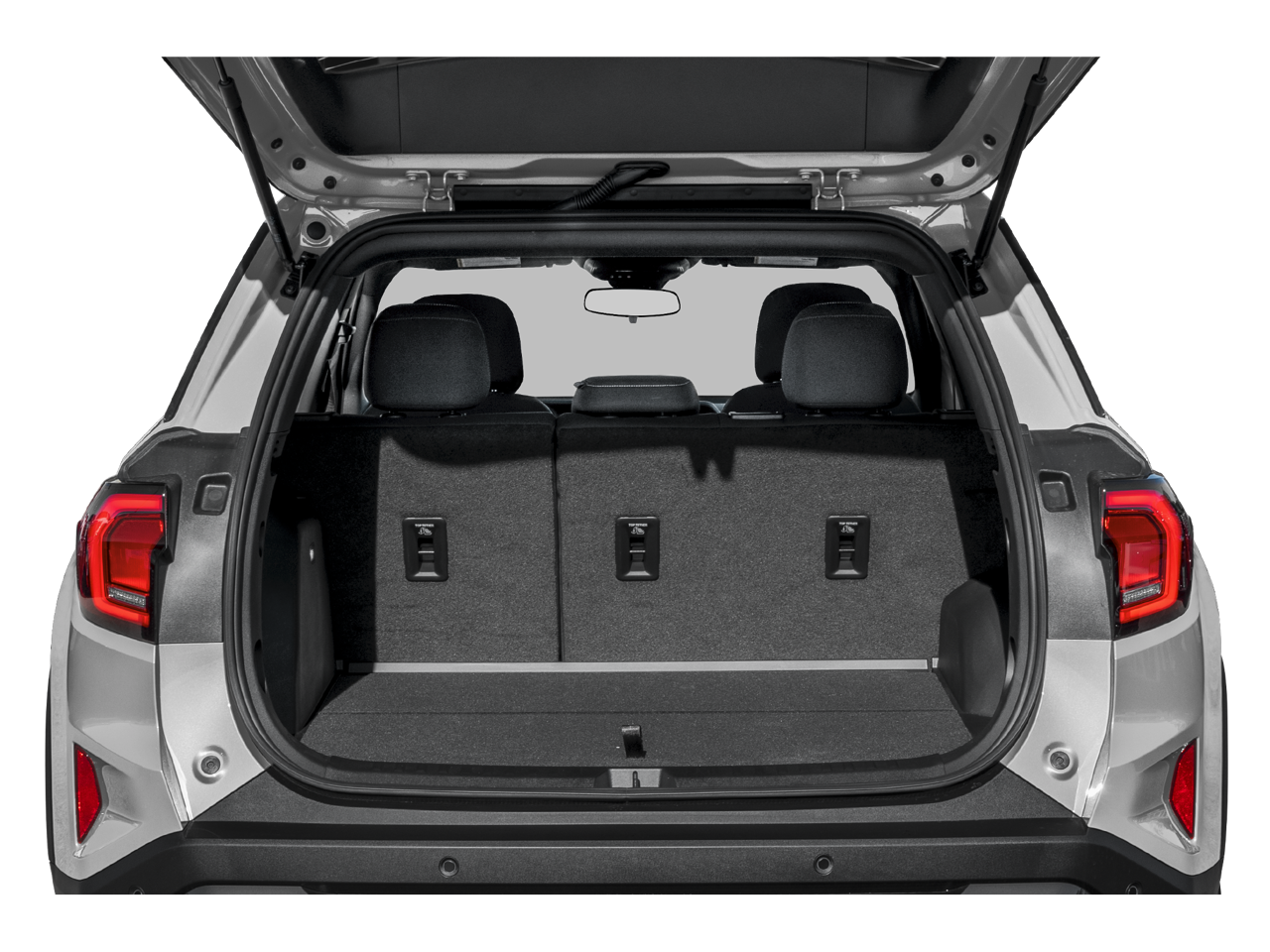

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 63.5
• Cargo Volume to Seat 2 (ft³): 29.8

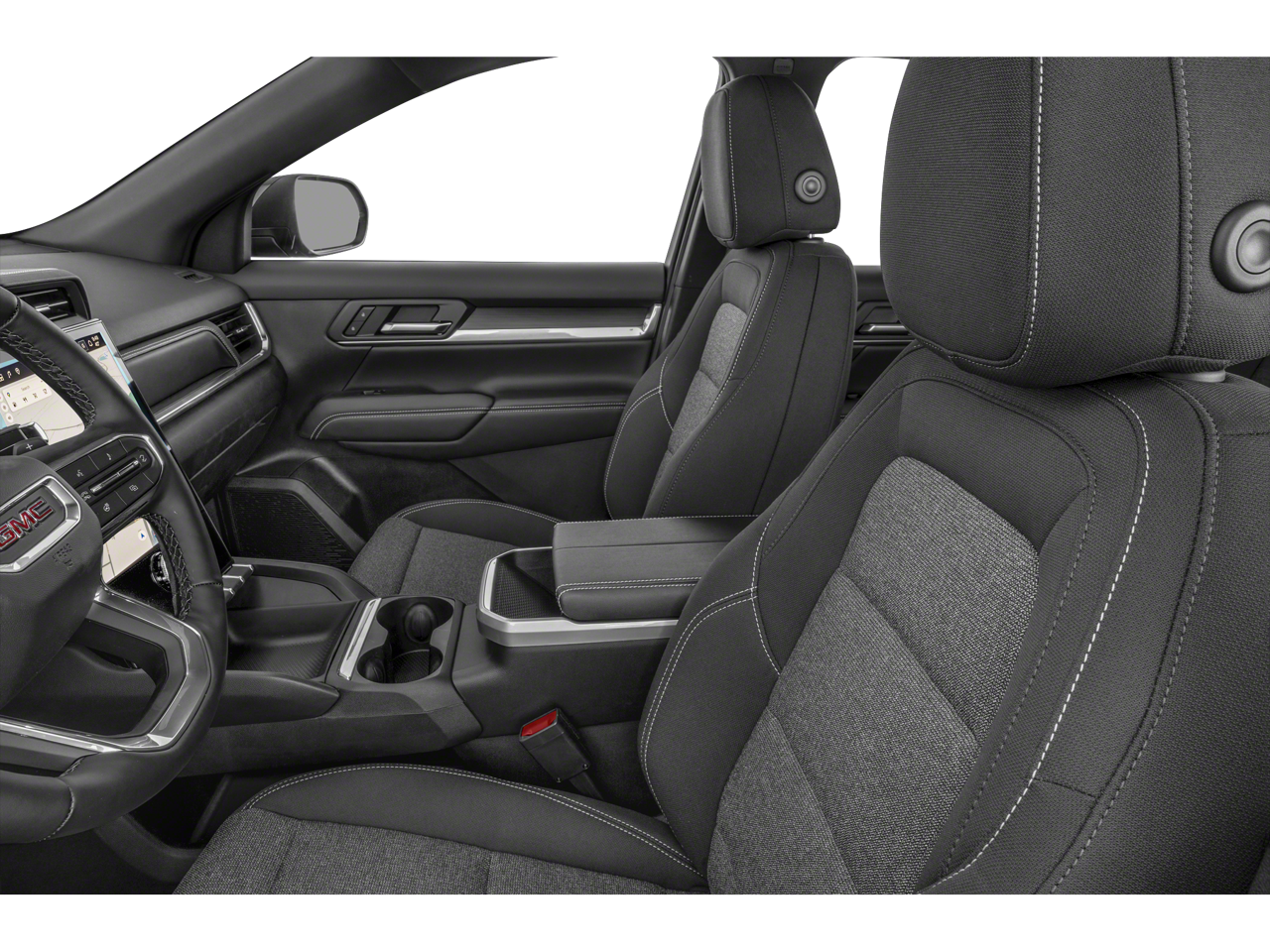

• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): - TBD -
• Front Head Room (in): 40.58
• Front Leg Room (in): 43.95
• Front Shoulder Room (in): 57.69
• Front Hip Room (in): 55.25
• Second Head Room (in): 39.18
• Second Leg Room (in): 39.7
• Second Shoulder Room (in): 55.7
• Second Hip Room (in): 51
• Summary

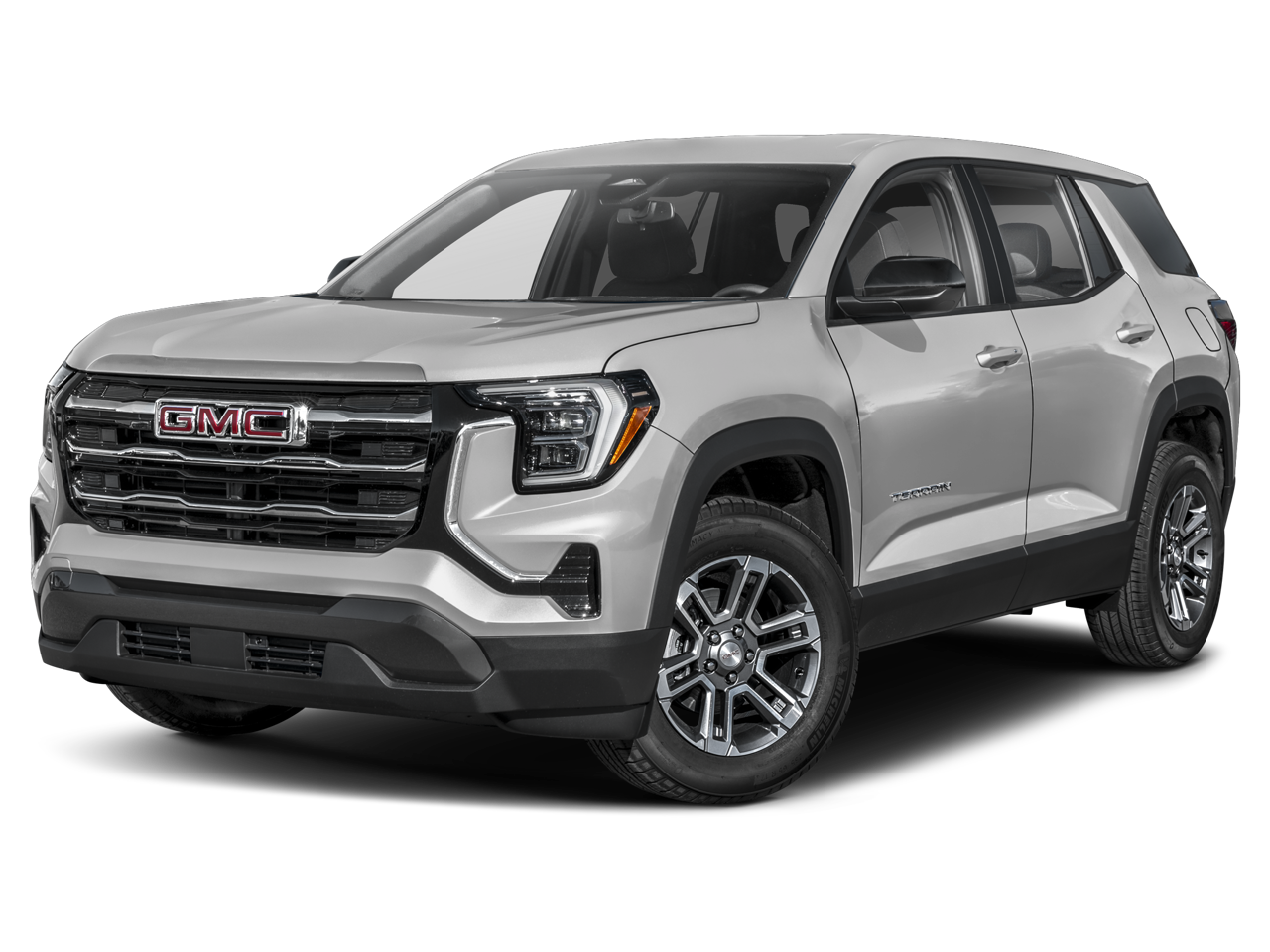

• Vehicle Name: GMC Terrain
• Body Style: Sport Utility
• Emissions
• EPA Greenhouse Gas Score: 5
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.5
