ENGINE, TURBOMAX

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) (STD)

• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Bluetooth® for phone
• connectivity to vehicle infotainment system
• Audio system
• Chevrolet Infotainment 3 system 7 diagonal HD color touchscreen
• AM/FM stereo
• Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• Wireless Apple CarPlay and Wireless Android Auto compatibility
• Wireless phone projection for Apple CarPlay and Android Auto
• Audio system feature
• 6-speaker system
• Glass
• deep-tinted
• Lamps
• cargo area
• cab mounted integrated with center high mount stop lamp
• with switch in bank on left side of steering wheel (incandescent on Regular Cab models
• LED on Crew Cab and Double Cab models)
• Tailgate and bed rail protection cap
• top
• Door handles
• Black
• Tire
• spare 265/70R17SL all-season
• blackwall
• Tailgate
• standard
• Tailgate
• gate function manual with EZ Lift includes power lock and release
• Bumper
• front (High gloss black.)
• Cargo tie downs (12)
• fixed rated at 500 lbs per corner
• Mirrors
• outside heated power-adjustable
• Wheels
• 18 x 8.5 (45.7 cm x 21.6 cm) High gloss Black painted aluminum
• Tire carrier lock
• keyed cylinder lock that utilizes same key as ignition and door
• Taillamps with incandescent tail
• stop and reverse lights
• LED Cargo Area Lighting located in pickup bed
• activated with switch on center switch bank or key fob
• IntelliBeam
• automatic high beam on/off
• Headlamps
• halogen reflector with halogen Daytime Running Lamps
• CornerStep
• rear bumper
• Wheel
• 17 x 8 (43.2 cm x 20.3 cm) full-size
• steel spare
• Tires
• LT275/65R18C blackwall Goodyear Wrangler Territory MT
• Bumper
• rear (High gloss black.)
• Window
• power front
• drivers express up/down
• Steering column
• Tilt-Wheel
• manual with wheel locking security feature
• Steering column lock
• electrical
• Floor mats
• rubberized-vinyl rear (Deleted when LPO floor liners are ordered.)
• Windows
• power rear
• express down
• Remote Keyless Entry
• with 2 transmitters
• Mirror
• inside rearview
• manual tilt

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2845
• Curb Weight - Rear (lbs): 1981
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2225
• Maximum Trailering Capacity (lbs): 9300
• Suspension
• Suspension Type - Front: Lifted w/Independent coil-over-shock
• Suspension Type - Rear: Lifted w/Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: R3O
• Rear Tire Order Code: R3O
• Spare Tire Order Code: XCQ
• Front Tire Size: LT275/65R18C
• Rear Tire Size: LT275/65R18C
• Spare Tire Size: 265/70R17SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.5
• Length, Overall (in): 232.87
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 78.35
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 11.1
• Ground Clearance, Rear (in): 11.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

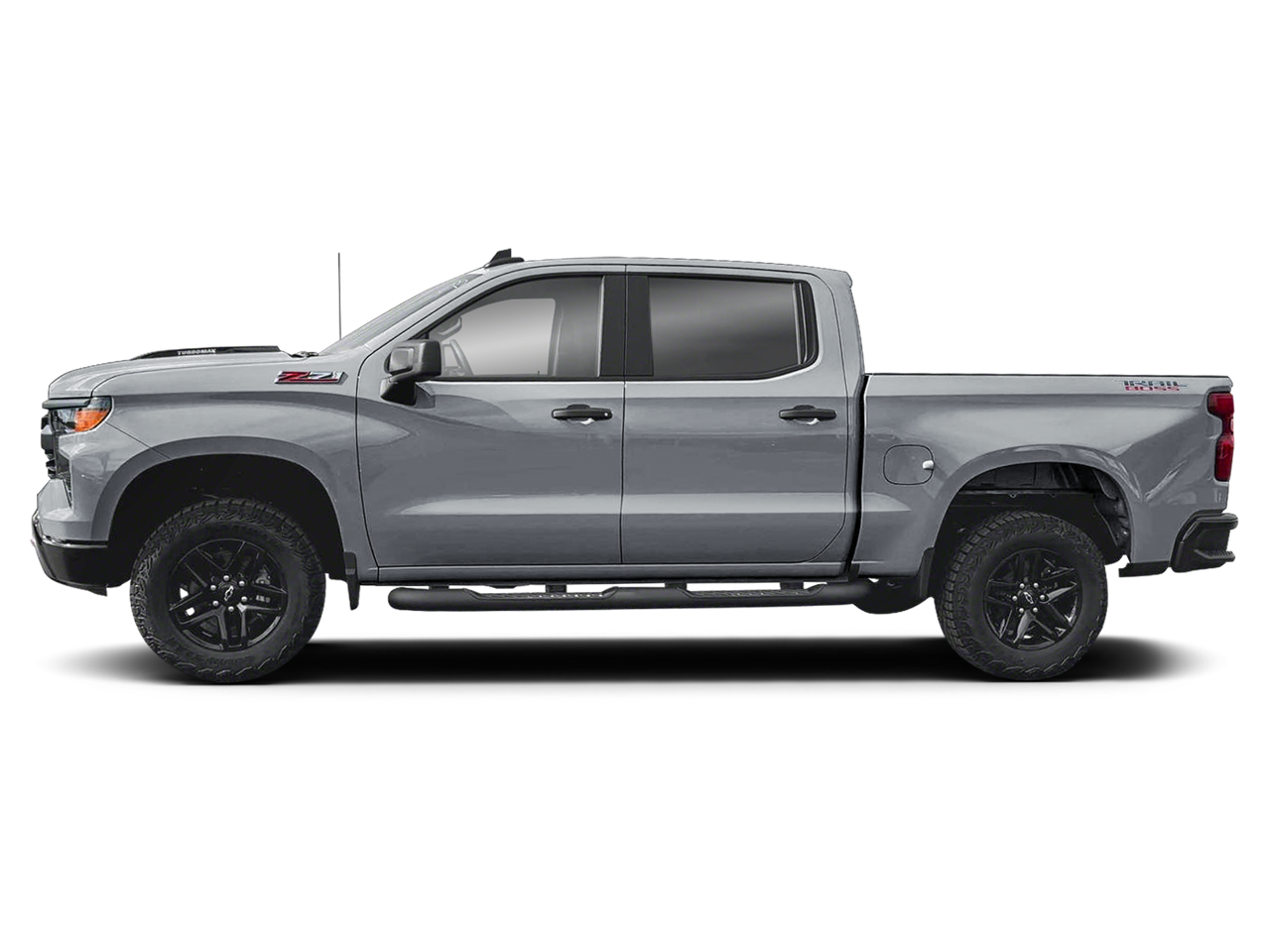

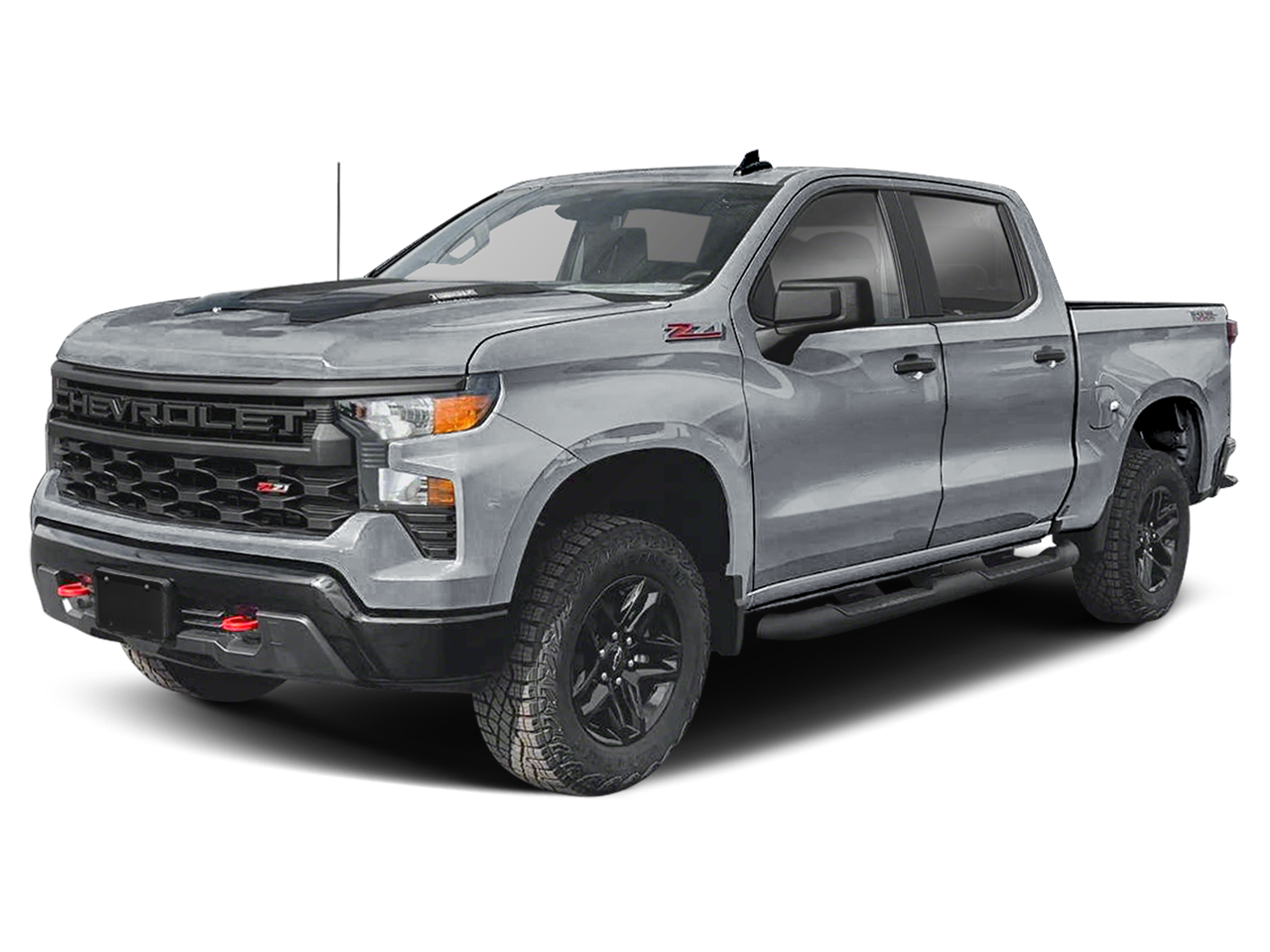

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.9
