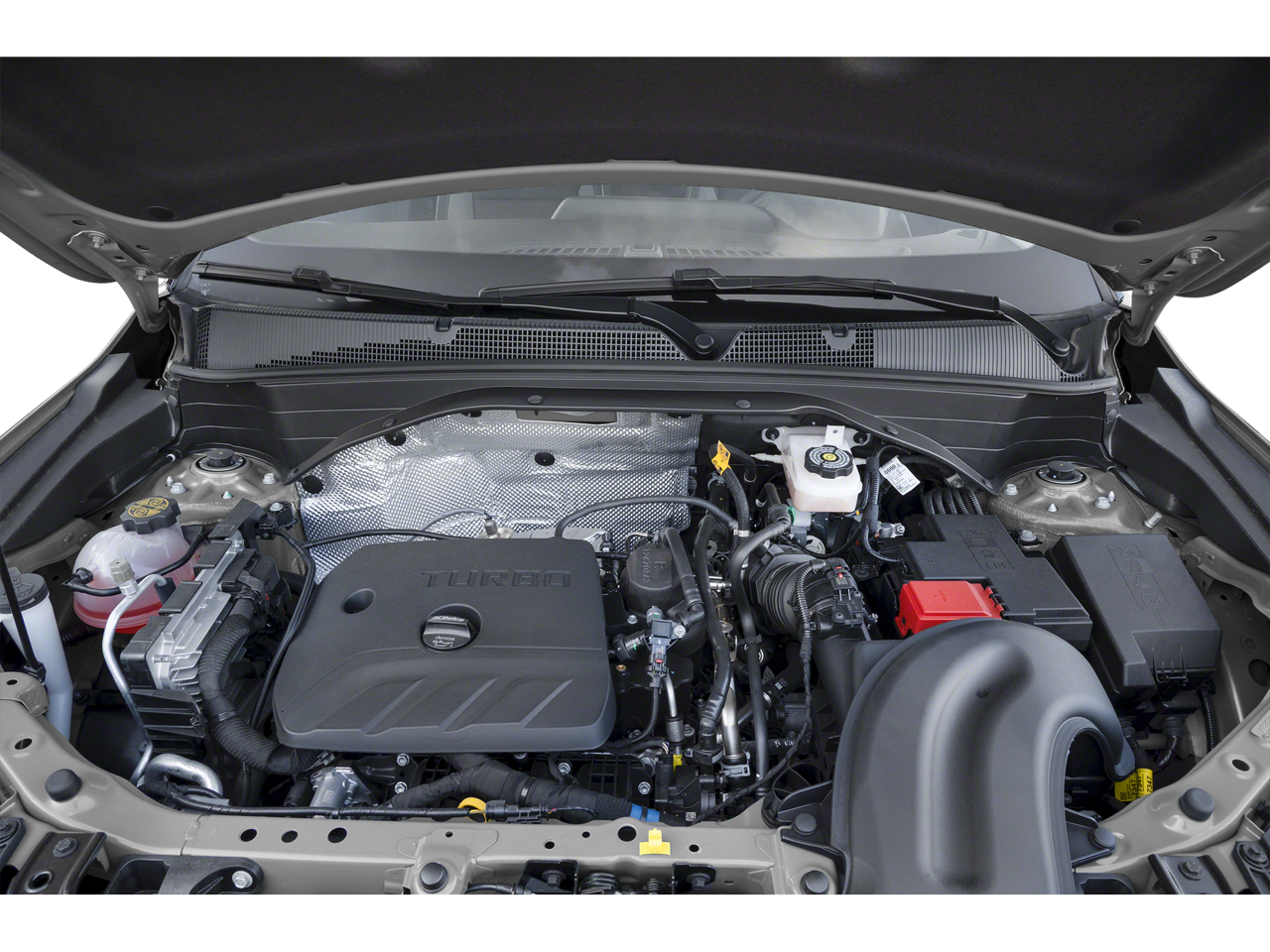

ENGINE, ECOTEC 1.2L I3 TURBO DOHC DI WITH VARIABLE VALVE TIMING (VVT)

• (137 hp [102 kW] @ 5000 rpm
• 162 lb-ft of torque [219 N-m] @ 2500 rpm) (STD)

• ENGINE
• ECOTEC 1.2L I3 TURBO DOHC DI WITH VARIABLE VALVE TIMING (VVT)
• TRANSMISSION
• CONTINUOUSLY VARIABLE (CVT) (STD)

• Vehicle
• EPA Classification: Sport Utility Vehicles
• Mileage
• Fuel Economy Est-Combined (MPG): 30 (2023)
• EPA Fuel Economy Est - City (MPG): 29 (2023)
• EPA Fuel Economy Est - Hwy (MPG): 31 (2023)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 3029
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 100
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Compound Crank
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QA3
• Rear Tire Order Code: QA3
• Spare Tire Order Code: ZDC
• Front Tire Size: 225/60R17
• Rear Tire Size: 225/60R17
• Spare Tire Size: 16"
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 37.3
• Turning Diameter - Wall to Wall (ft): N/A
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 13.2
• Exterior Dimensions
• Wheelbase (in): 103.95
• Length, Overall (in): 174.07
• Width, Max w/o mirrors (in): 71.2
• Height, Overall (in): 65.2
• Track Width, Front (in): 60.9
• Track Width, Rear (in): 61.27
• Min Ground Clearance (in): 7.5
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -

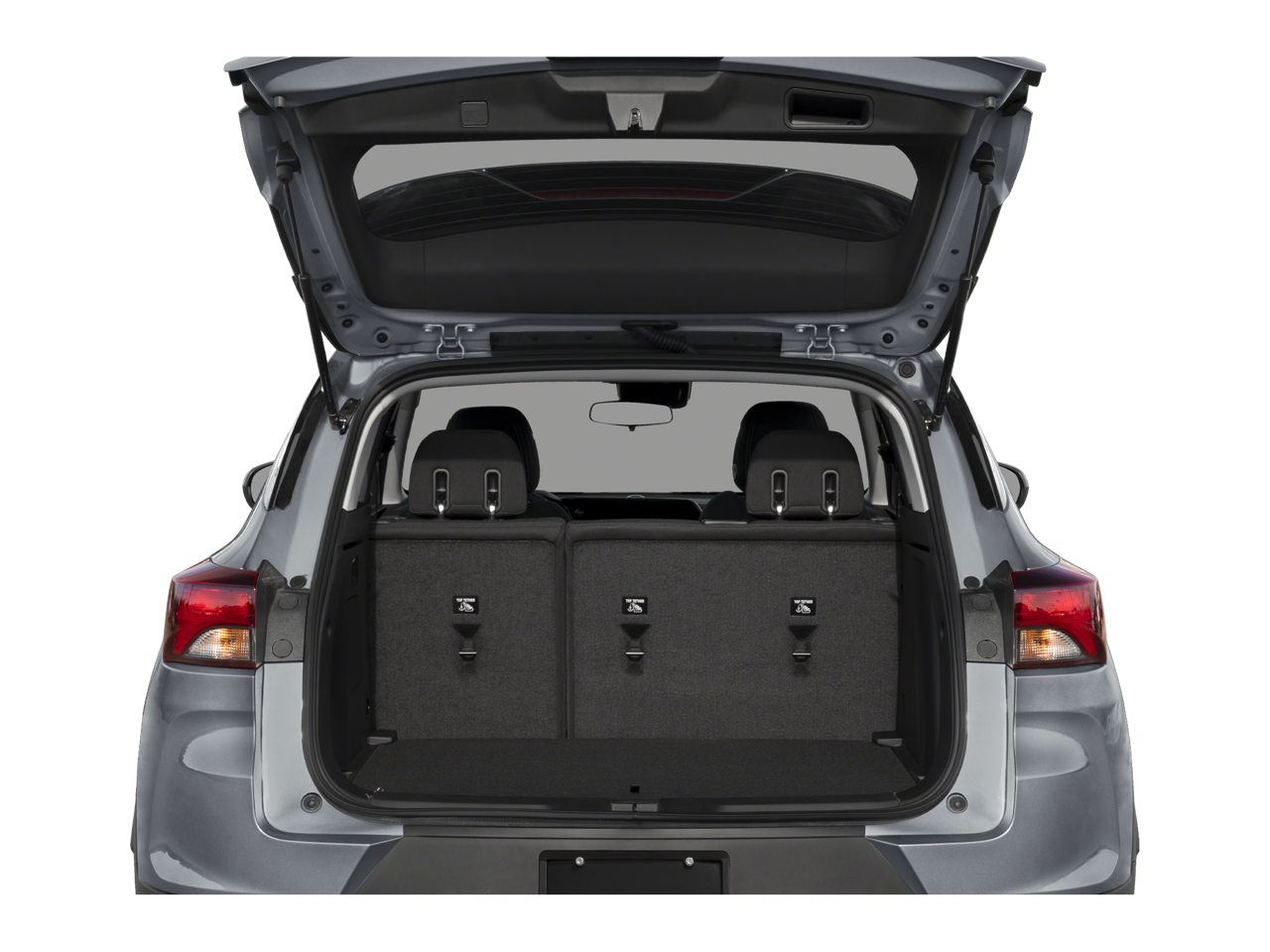

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 54.4
• Cargo Volume to Seat 2 (ft³): 25.3

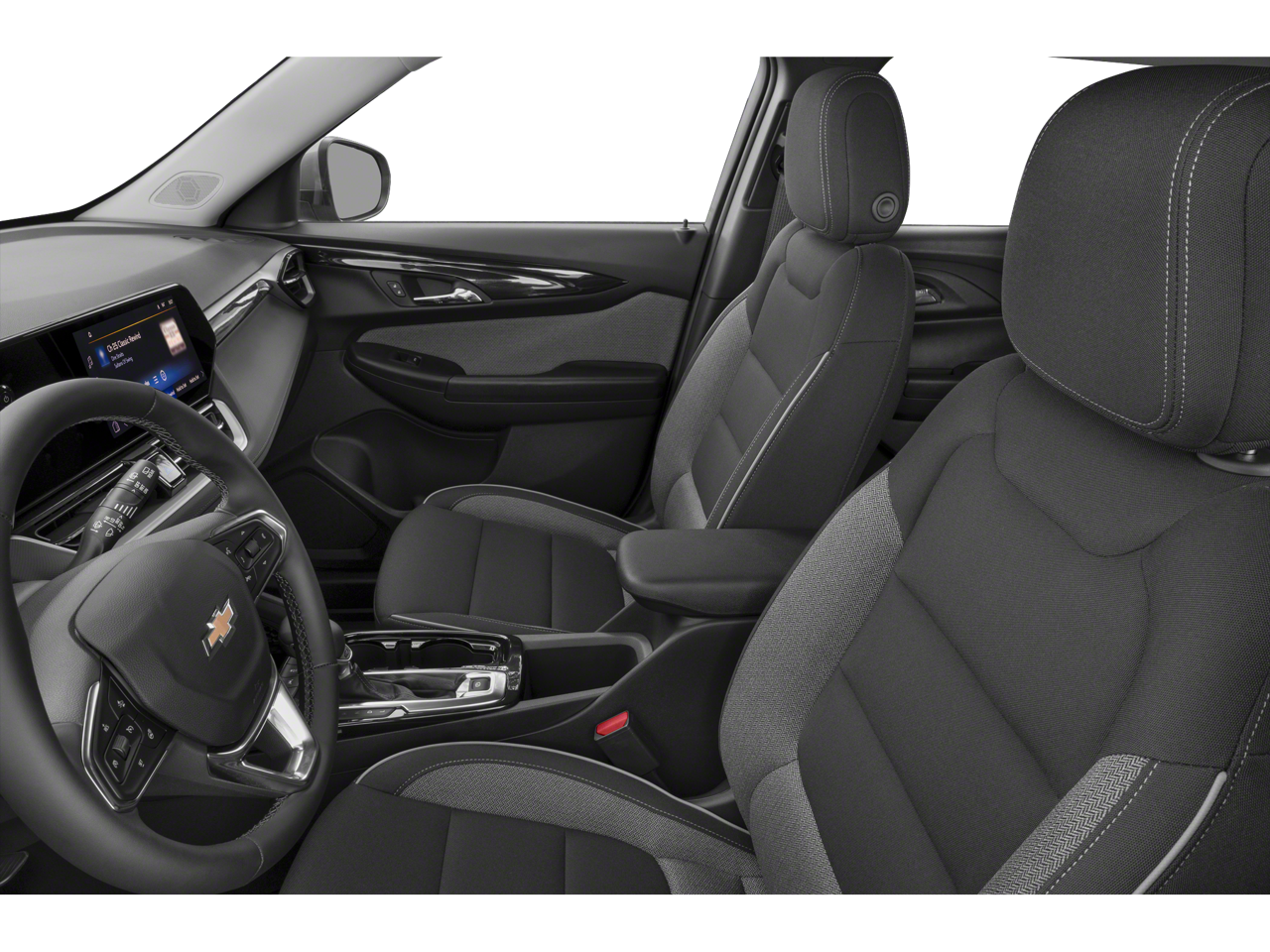

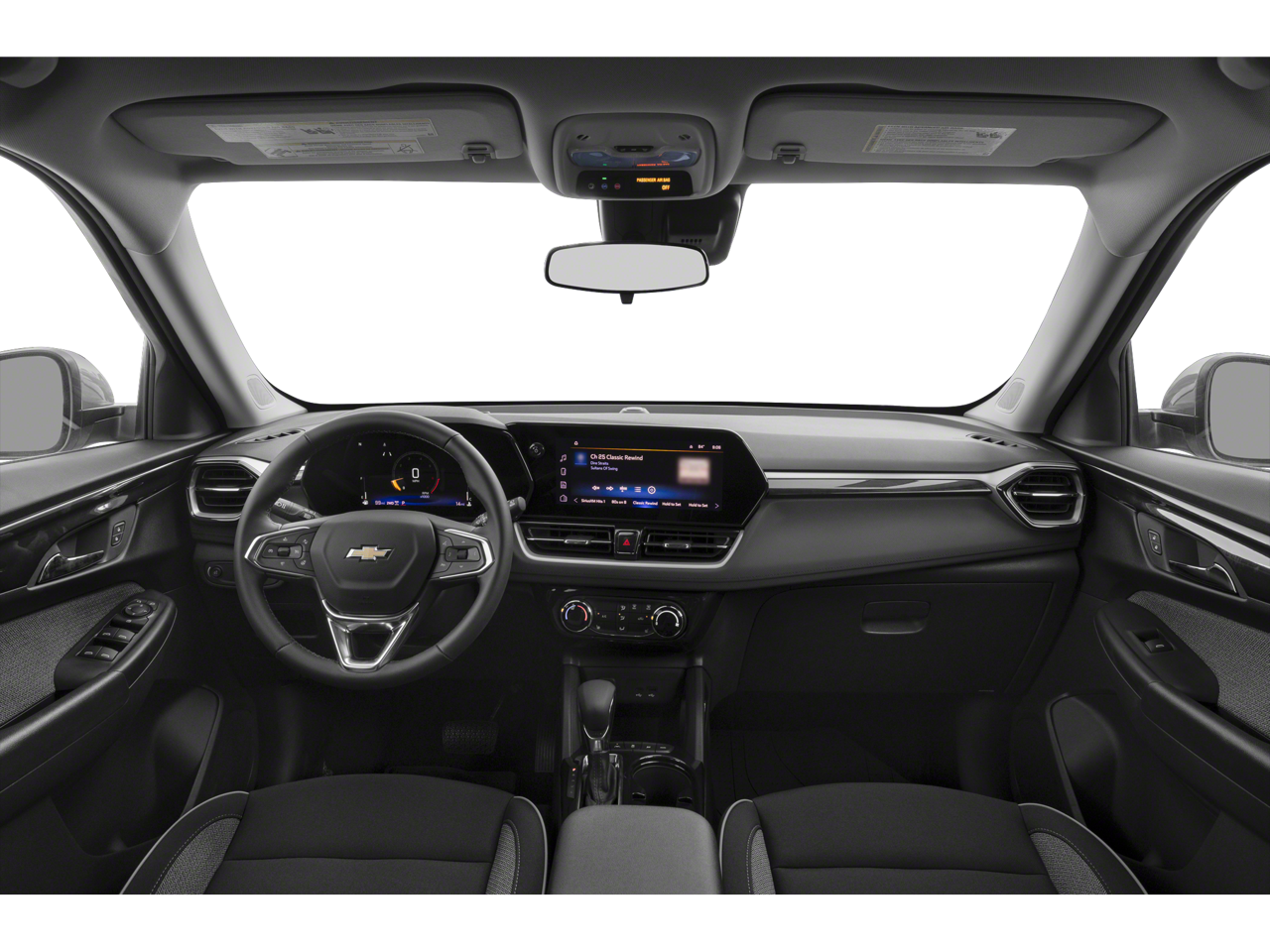

• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 98.2
• Front Head Room (in): 39.98
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 55.42
• Front Hip Room (in): 52.3
• Second Head Room (in): 38.4
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 53.79
• Second Hip Room (in): 50.39
• Summary

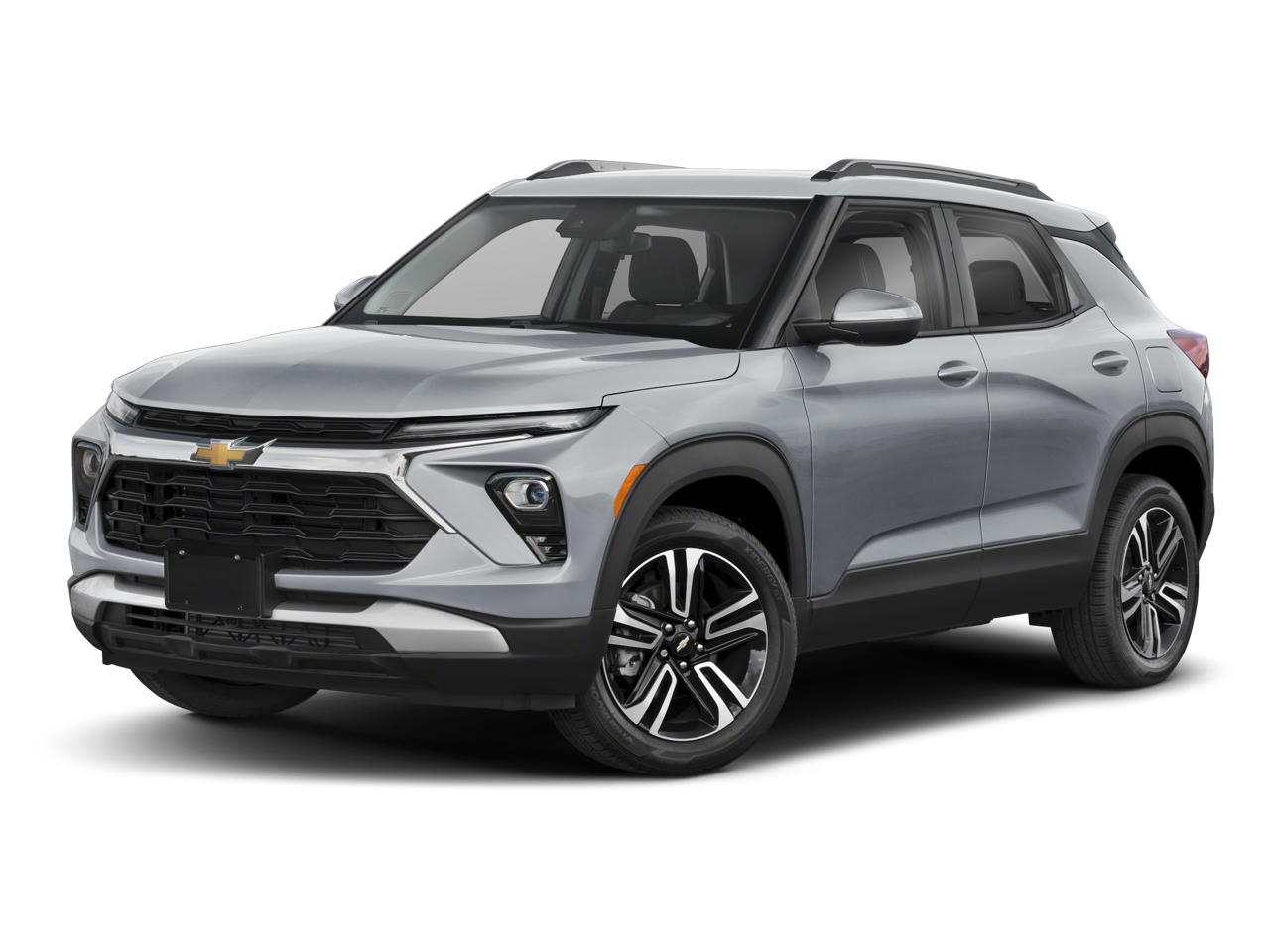

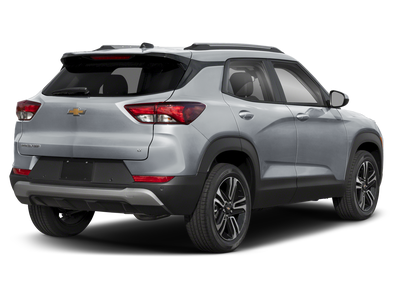

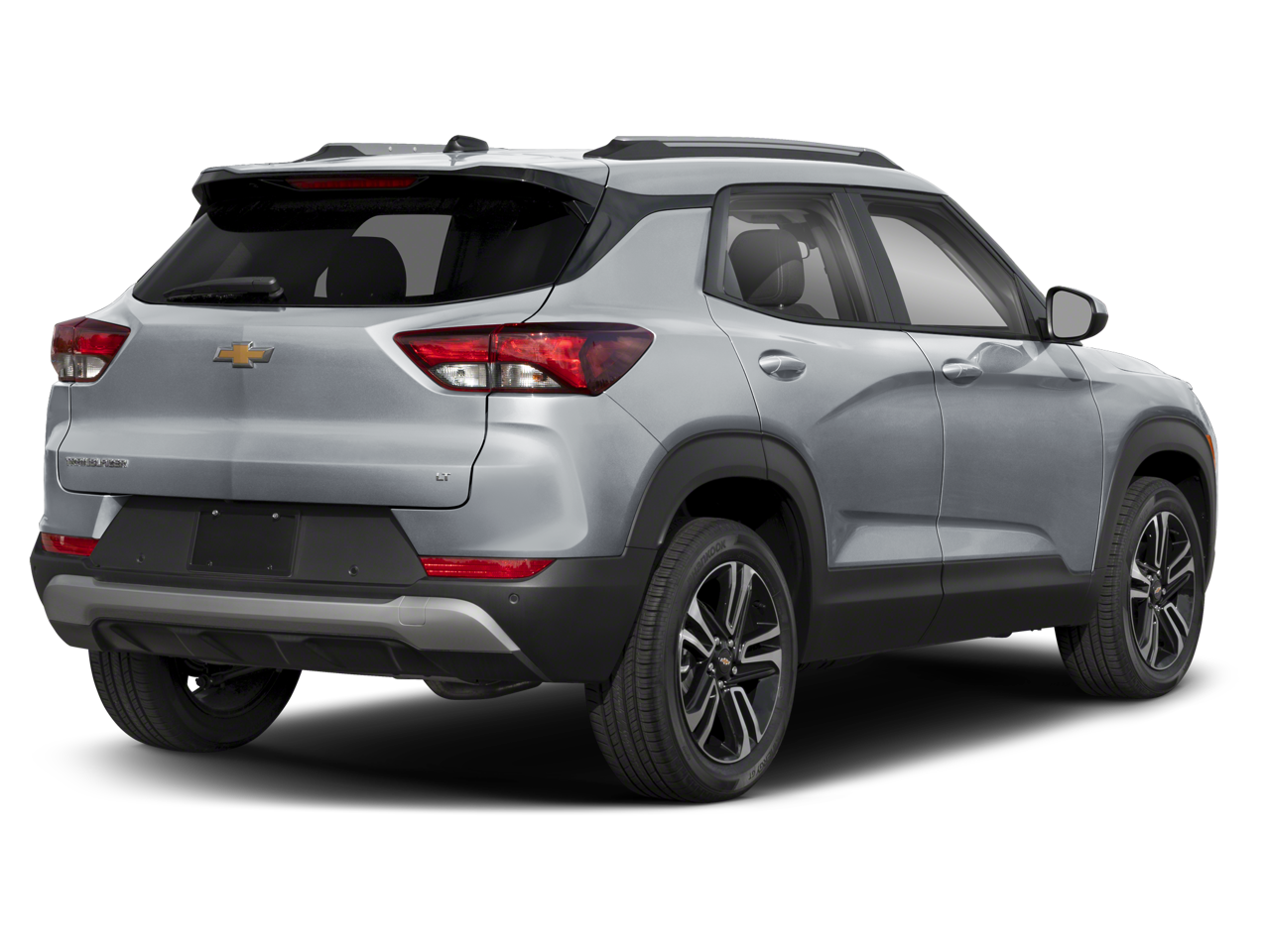

• Vehicle Name: Chevrolet Trailblazer
• Body Style: Sport Utility
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 5.9 (2023)
