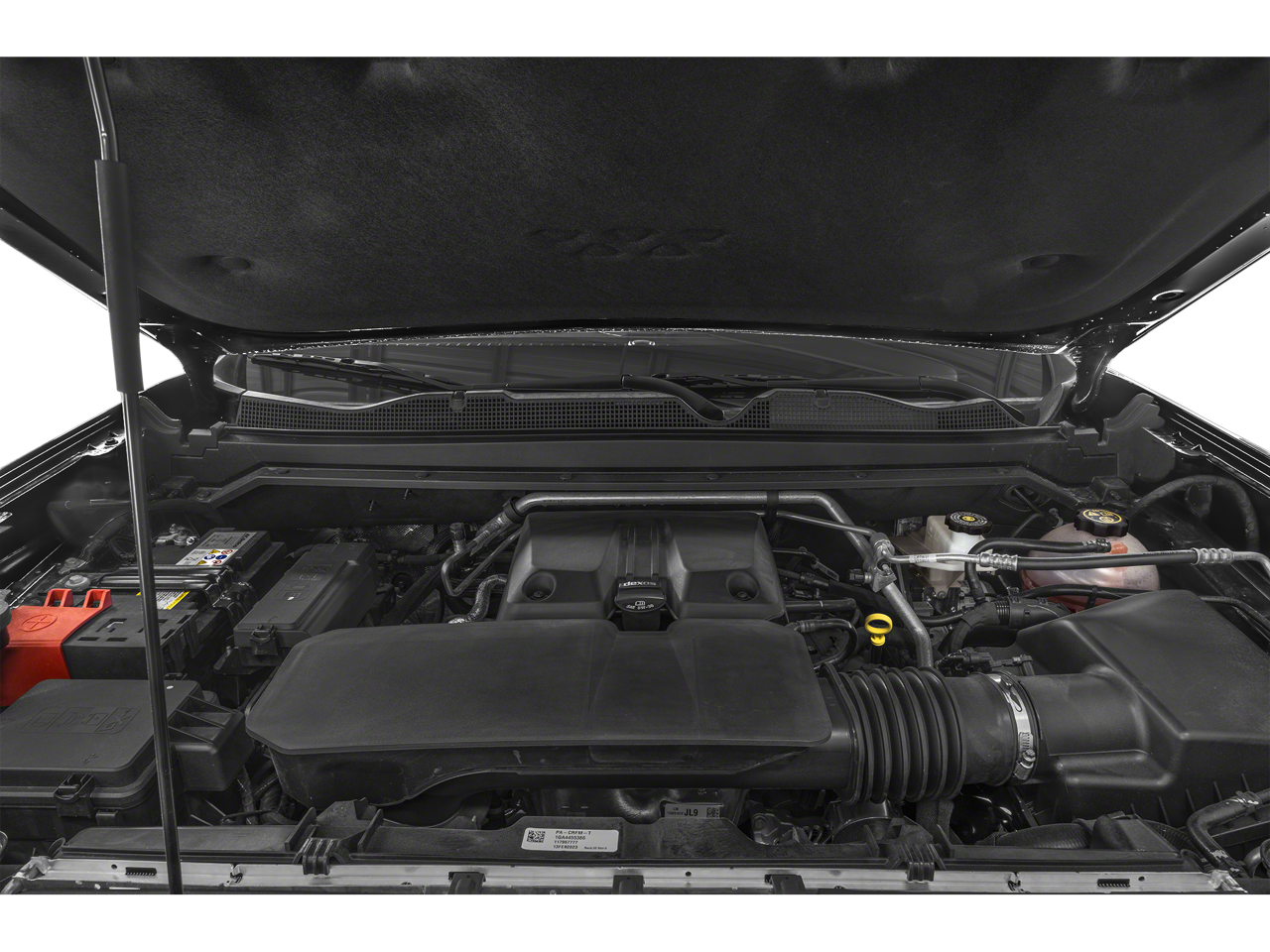

ENGINE, 2.7L TURBO HIGH-OUTPUT

• (GM Estimated 310 hp [231 kW] @ 5600 rpm
• GM Estimated 430 lb-ft of torque [583 Nm] @ 3000 rpm) (STD)

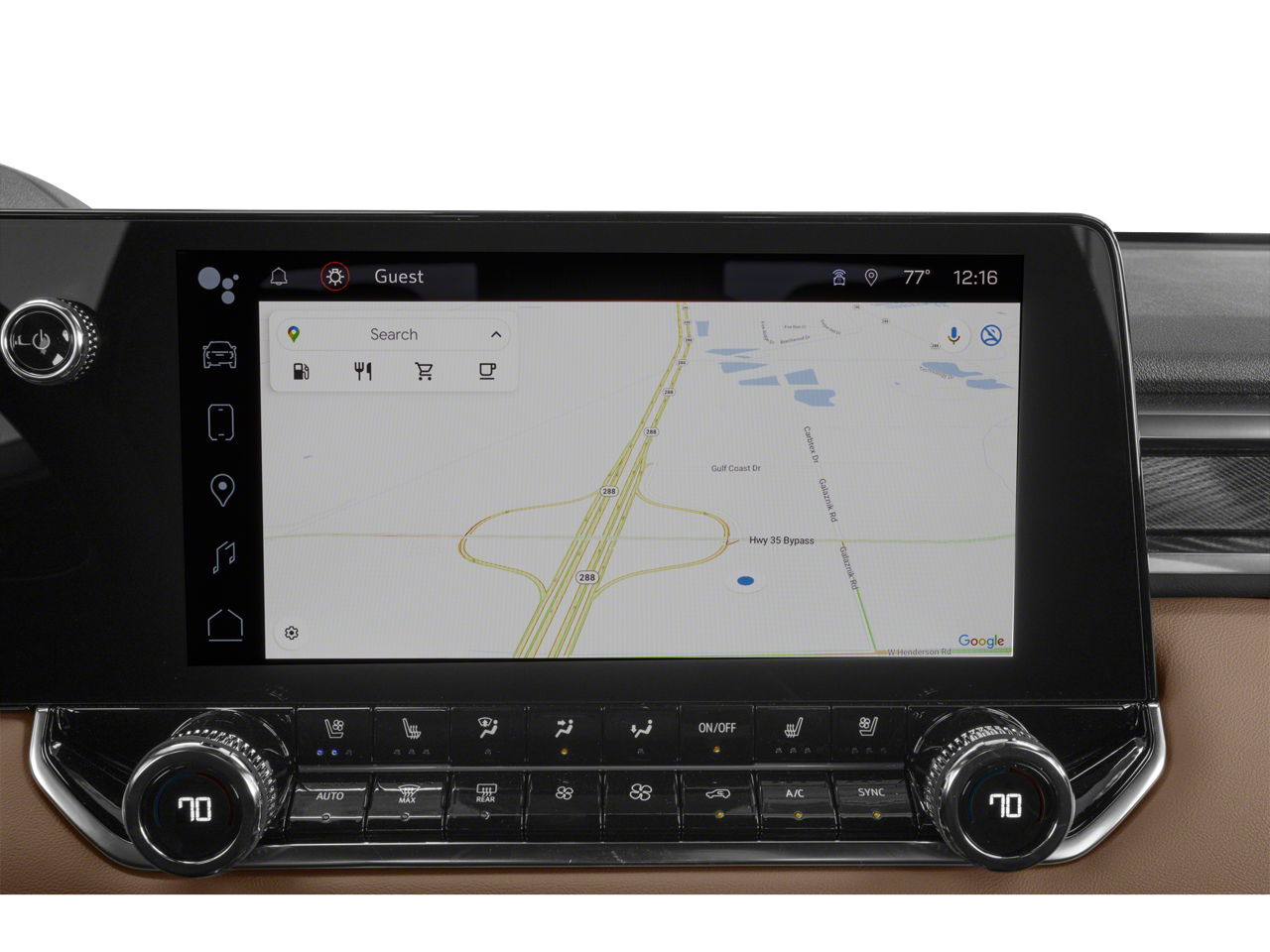

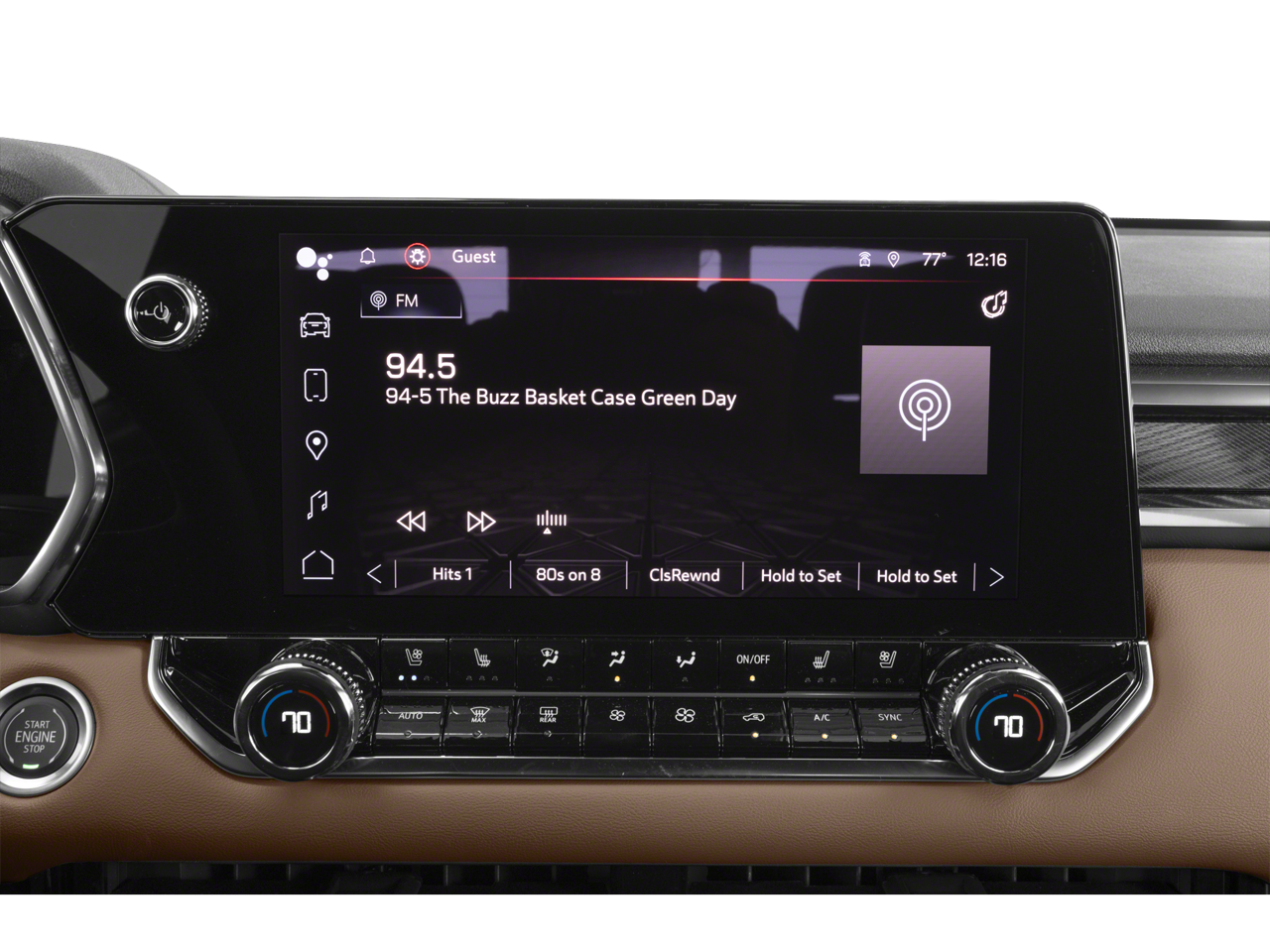

• 11.3 diagonal Premium GMC Infotainment System with Google built in
• includes color touch-screen
• multi-touch display
• AM/FM stereo
• Bluetooth® streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones
• advanced voice recognition
• in-vehicle apps
• personalized profiles for infotainment and vehicle settings
• Bose Sound System
• premium 7-speaker system with external amplifier
• Wireless Apple CarPlay/Wireless Android Auto
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Fog lamps
• front LED
• Moldings
• upper bodyside
• window surround
• Black finish
• Sport
• IntelliBeam
• automatic high beam on/off (Included and only available with (PCW) Canyon Pro Safety.)
• Mirrors
• outside heated power-adjustable
• Tailgate
• EZ-Lift and Lower
• Mirror caps
• painted Black

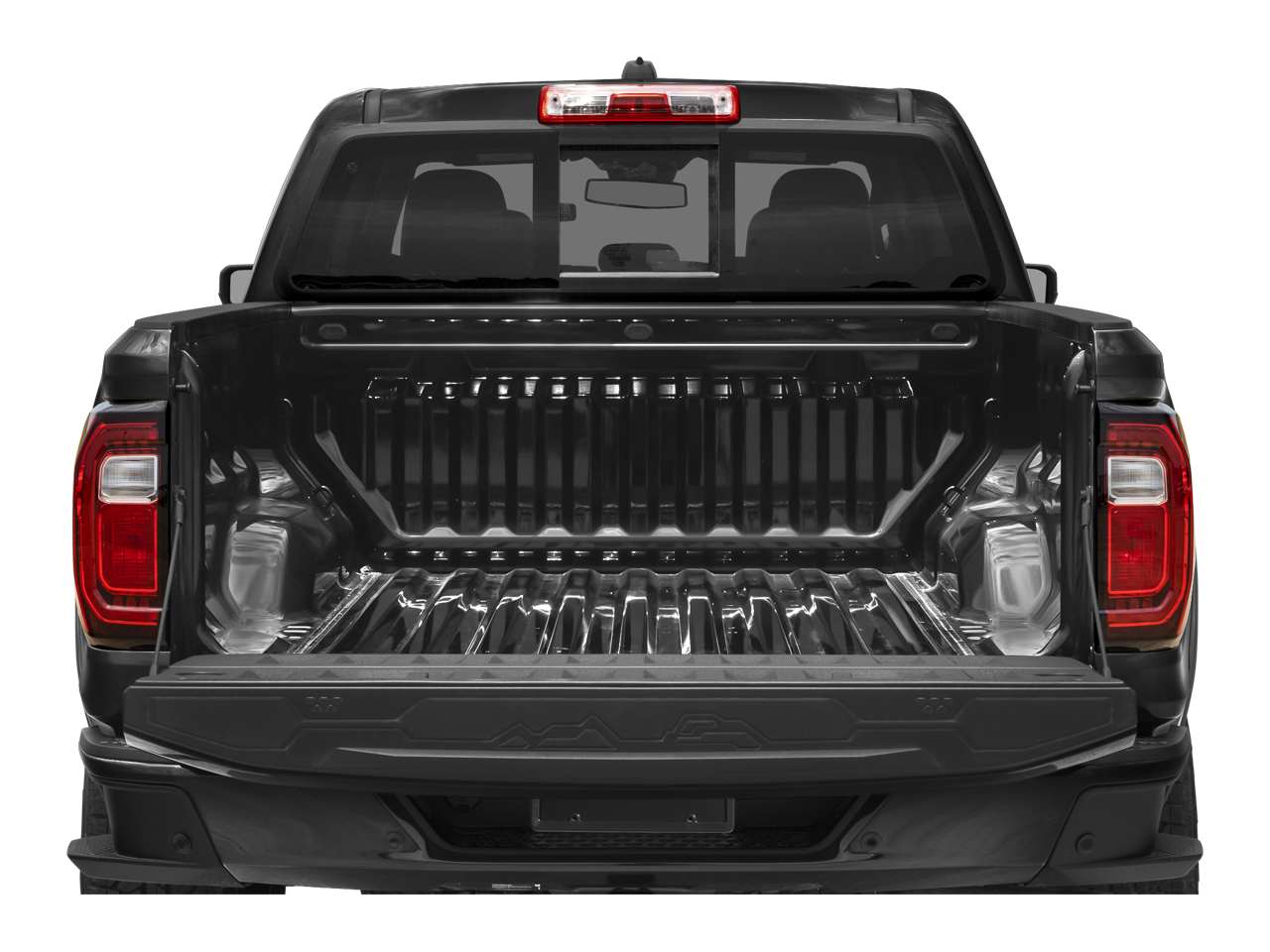

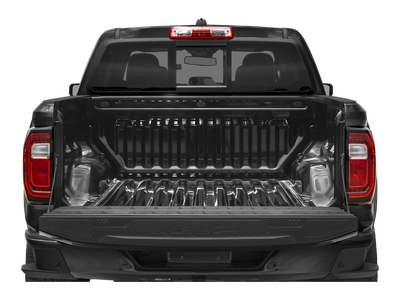

• Bedliner
• Spray-on (Includes AT4X logo on headboard.)
• Headlamp control
• automatic on and off with automatic delay
• Power outlet
• bed mounted
• 120-volt (400 watts shared with (KI6) power outlet)
• Wheel opening moldings
• Radiator Grille Shutters
• automatic
• Lamps
• cargo area
• cab mounted with switch on center switch bank
• MultiStow Tailgate
• storage compartment
• Tailgate
• remote locking

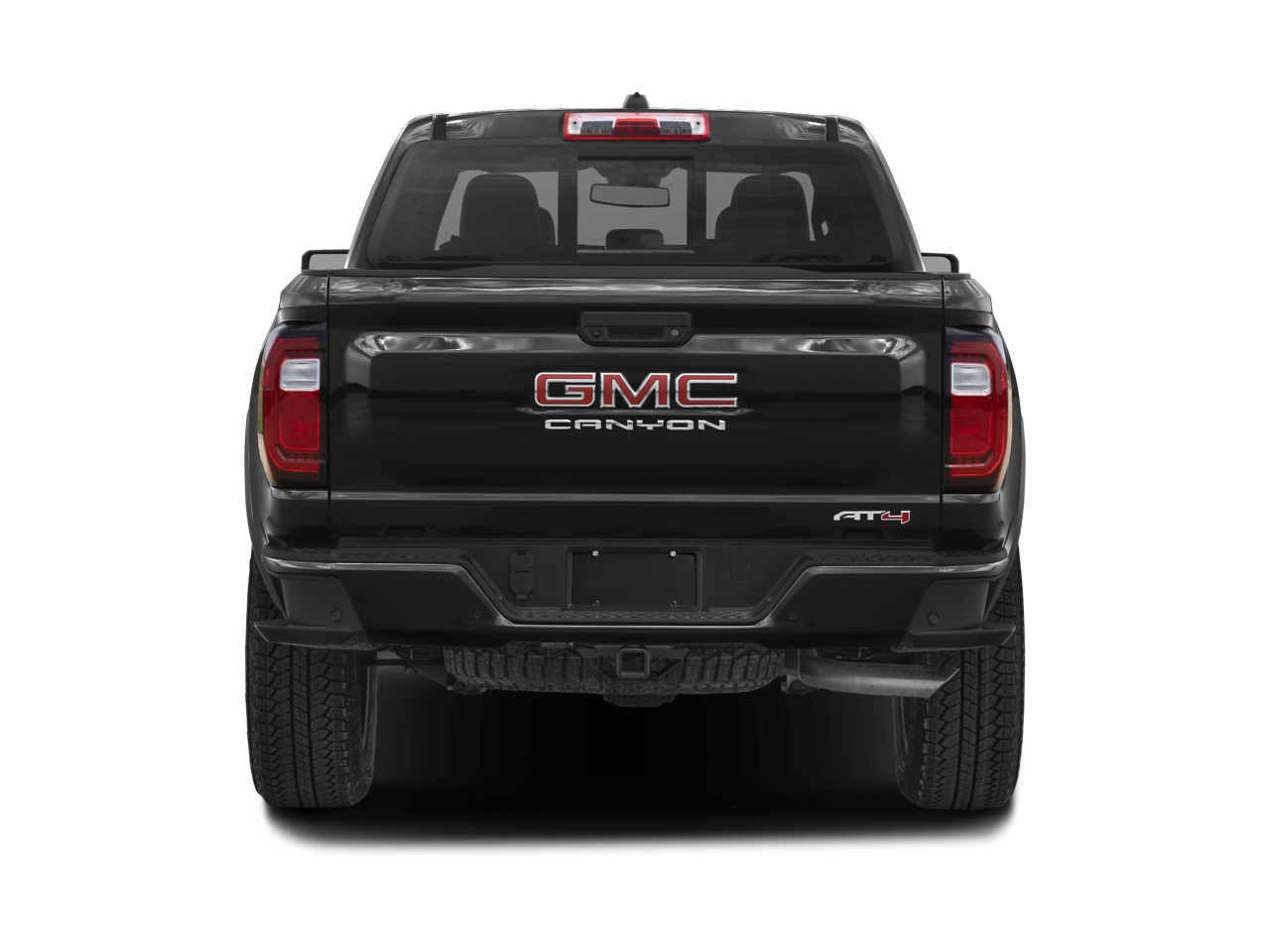

• Taillamps
• LED rear combination
• Off-Road Rocker Protection
• Black
• Glass
• deep-tinted
• Wheel
• spare
• 17 x 8 (43.2 cm x 20.3 cm) steel
• Door handles
• body-color
• Tires
• LT285/70R17C MT blackwall
• Headlamps
• LED projectors with Fade-on/Fade-off animation
• LED turn signals and Daytime Running Lamps
• Tailgate keyed cylinder lock
• Wheels
• 17 x 8 (43.2 cm x 20.3 cm) Black High Gloss Machined Finish Aluminum
• Tire
• spare LT285/70R17C MT blackwall
• Window
• rear-sliding
• manual
• Power outlet
• 120-volt rear of console
• Driver memory recalls driver presets for power driver seat and outside mirrors
• Seat adjuster
• driver 8-way power
• Air vents
• rear

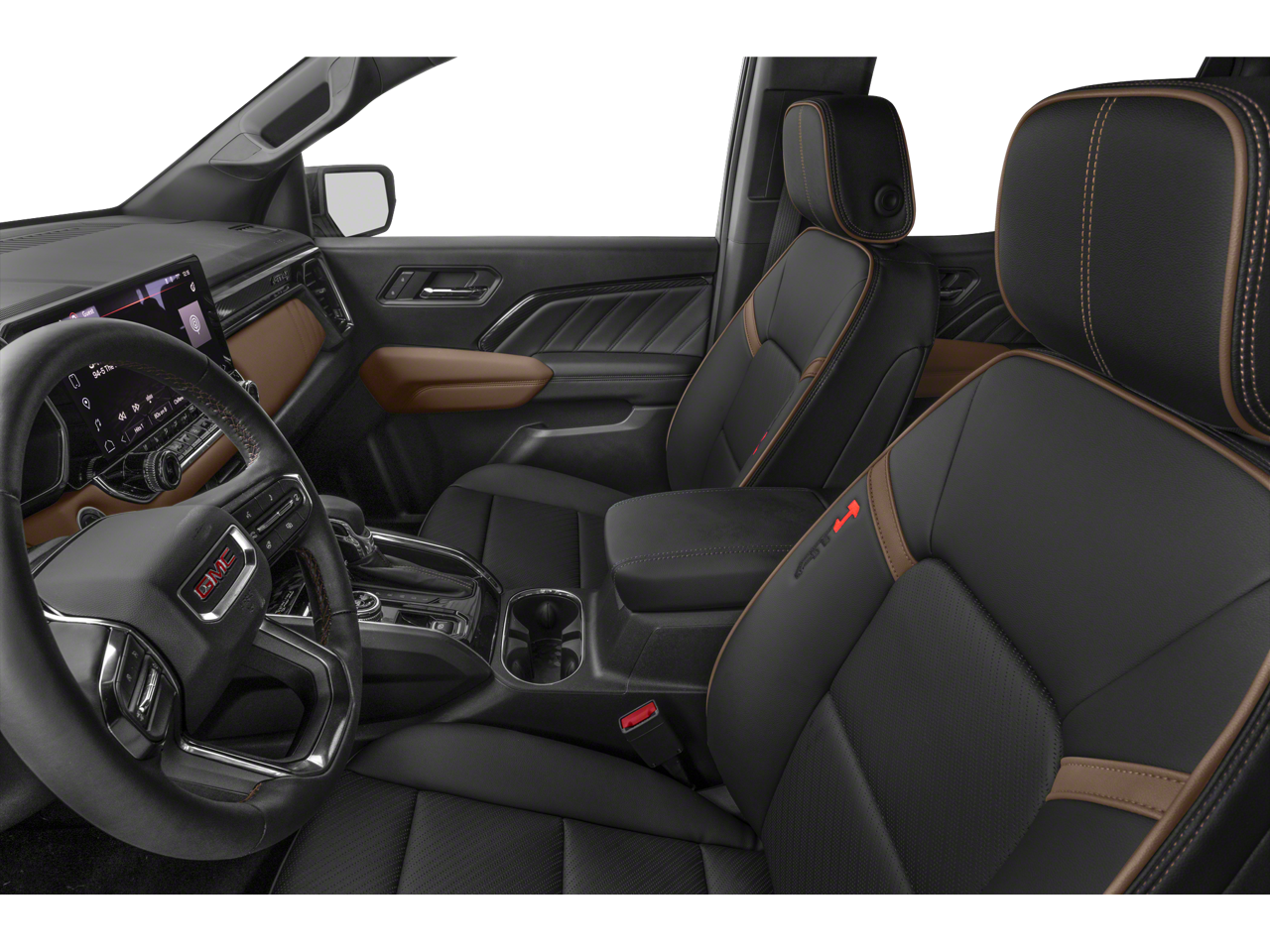

• Seat
• front bucket
• Window
• power with front passenger Express-Down

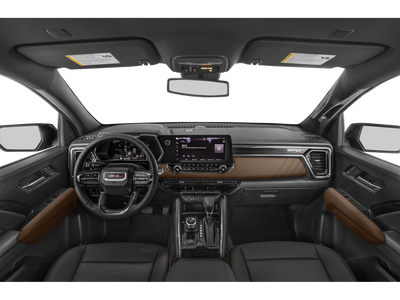

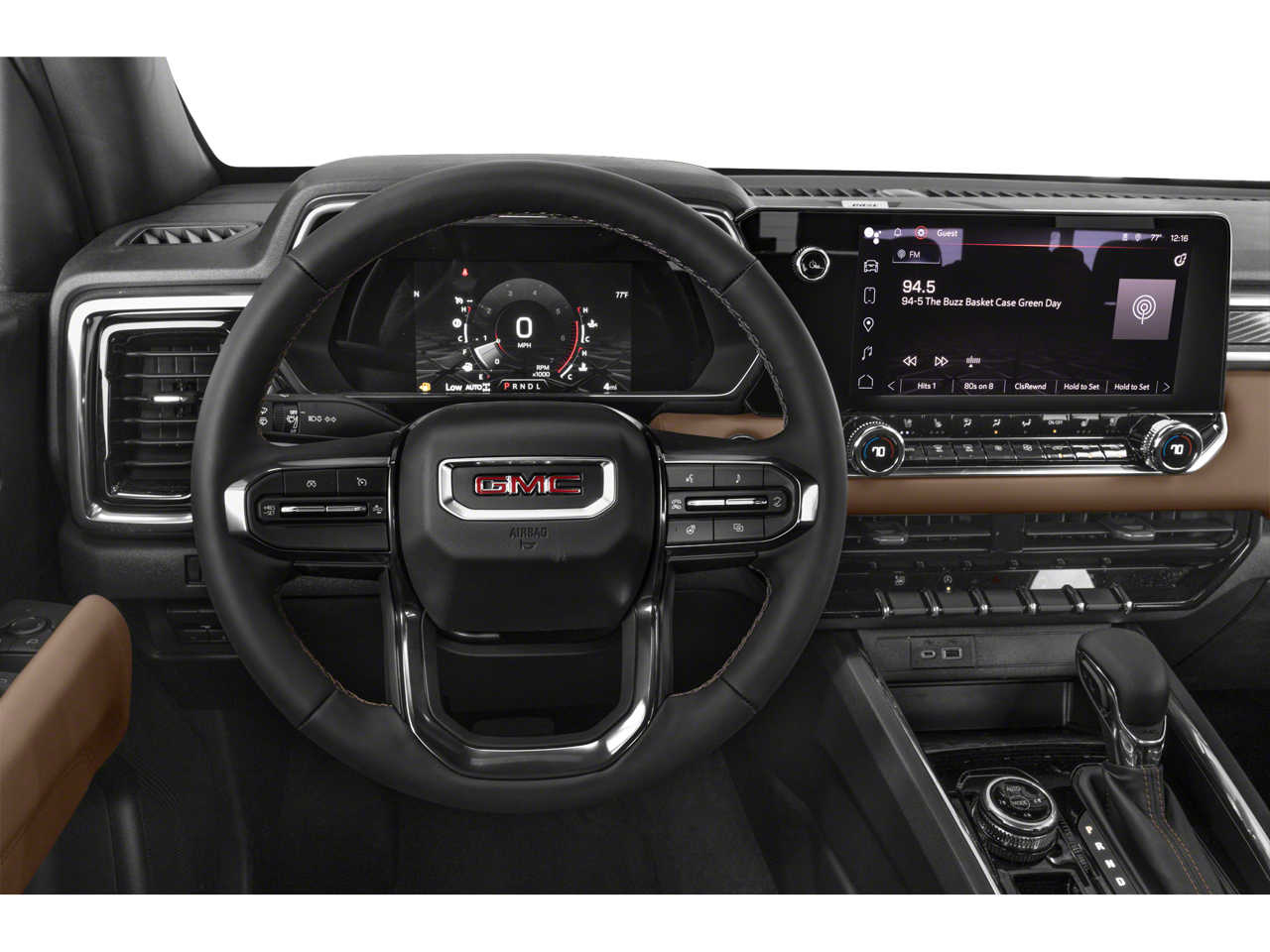

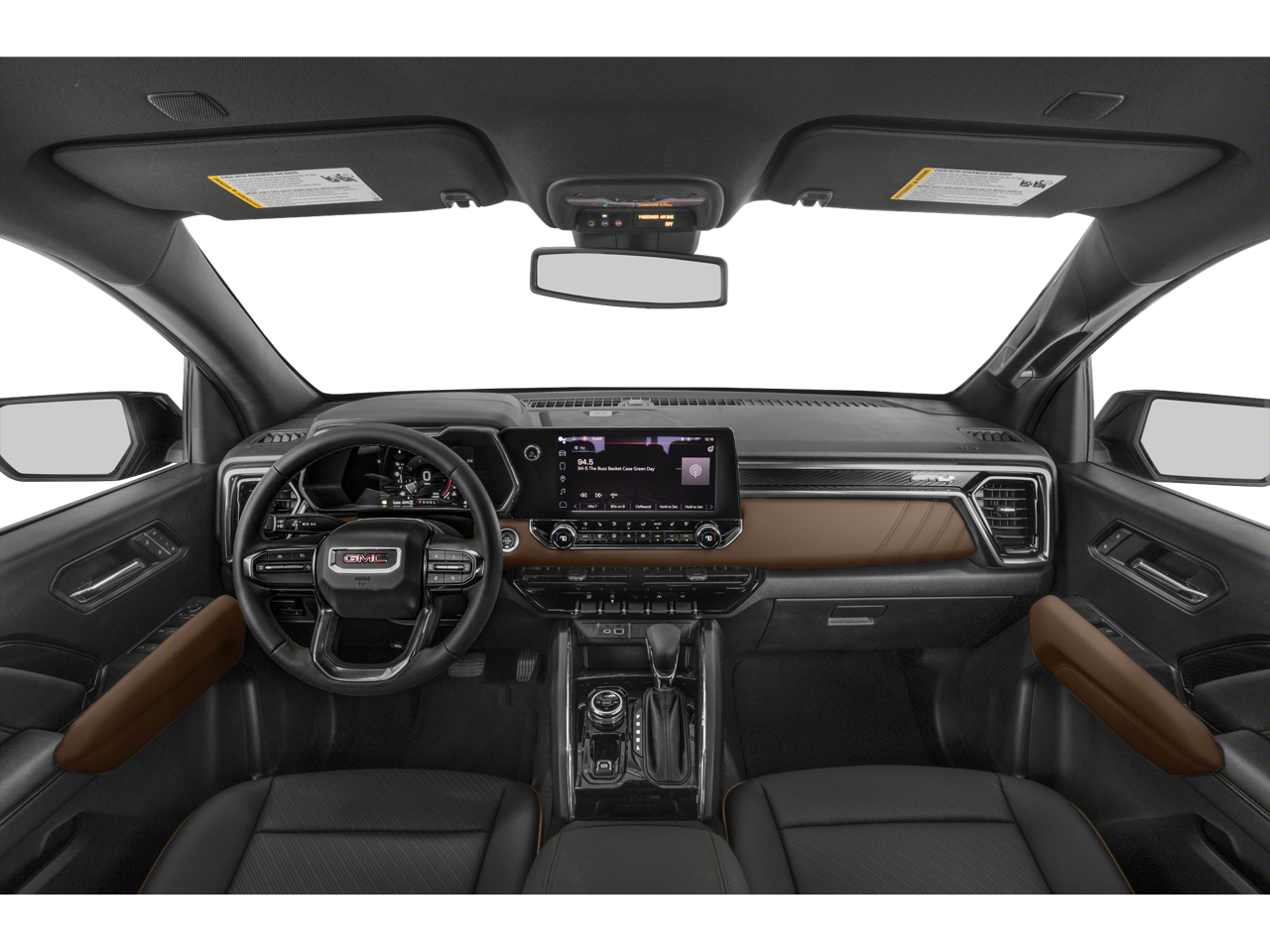

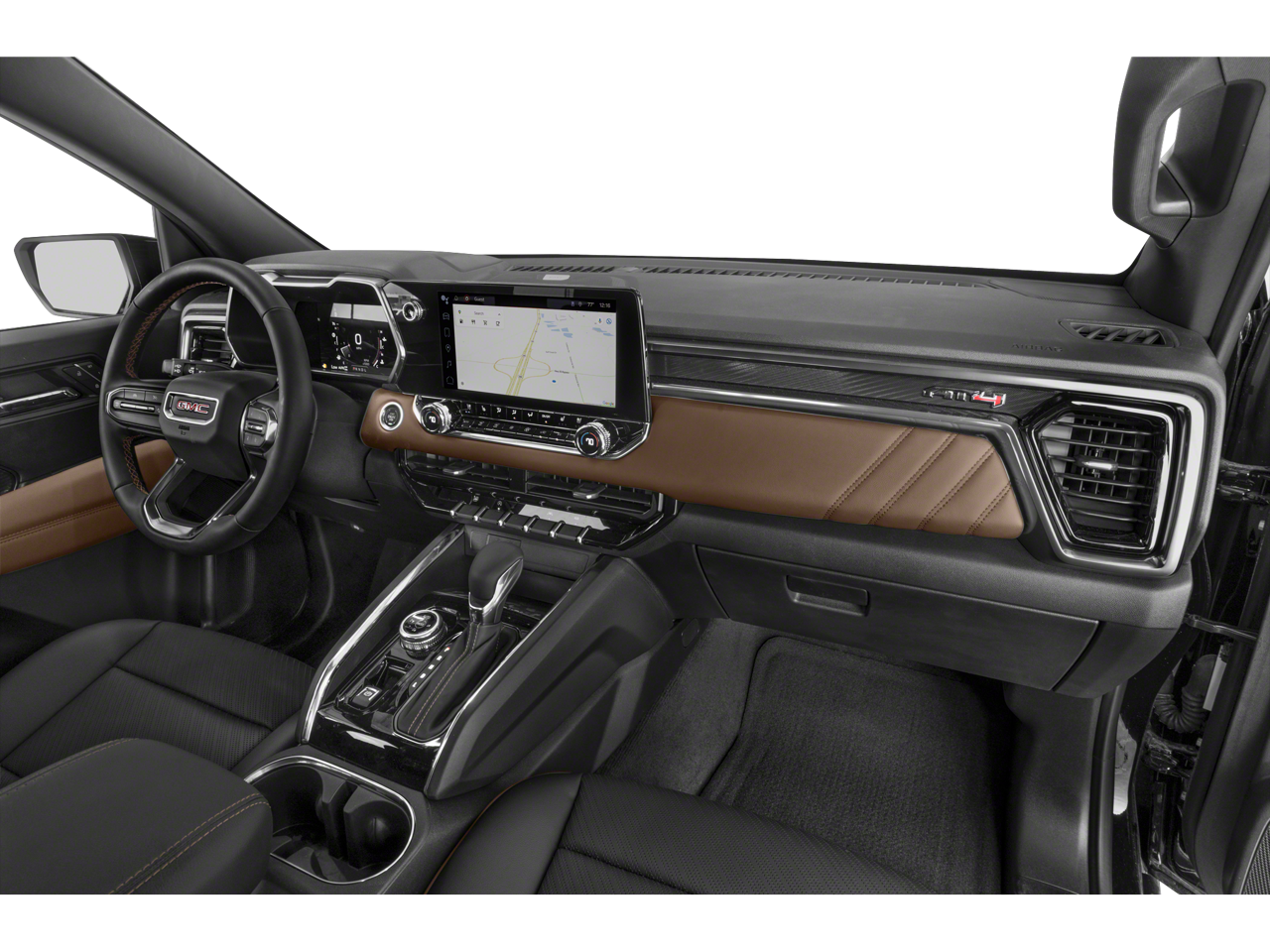

• Driver Information Center
• 11 diagonal fully-digital display

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 800
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3500
• Gross Axle Wt Rating - Rear (lbs): 3400
• Curb Weight - Front (lbs): 2725
• Curb Weight - Rear (lbs): 2140
• Gross Vehicle Weight Rating Cap (lbs): 6250
• Gross Combined Wt Rating (lbs): 11600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Maximum Trailering Capacity (lbs): 6000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3500
• Spring Capacity - Rear (lbs): 3400
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3500
• Axle Capacity - Rear (lbs): 3400
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.4 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.3 x - TBD -
• Tires
• Front Tire Order Code: QAF
• Rear Tire Order Code: QAF
• Spare Tire Order Code: RMR
• Front Tire Size: LT285/70R17C
• Rear Tire Size: LT285/70R17C
• Spare Tire Size: LT285/70R17C
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21.4
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 131.4
• Length, Overall (in): 213.2
• Width, Max w/o mirrors (in): 72.4 w/Mirrors Folded, 84.4 w/Mirrors
• Height, Overall (in): 81.6
• Overhang, Front (in): 34.5
• Overhang, Rear w/o bumper (in): 47.3
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 23.4
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.7
• Ground Clearance, Rear (in): 10.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.7
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 58.1
• Cargo Box Width @ Wheelhousings (in): 45.5
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 41.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.3
• Front Leg Room (in): 45.2
• Front Shoulder Room (in): 57.4
• Front Hip Room (in): 54.7
• Second Head Room (in): 38.3
• Second Leg Room (in): 34.7
• Second Shoulder Room (in): 56.1
• Second Hip Room (in): 53.1
• Summary

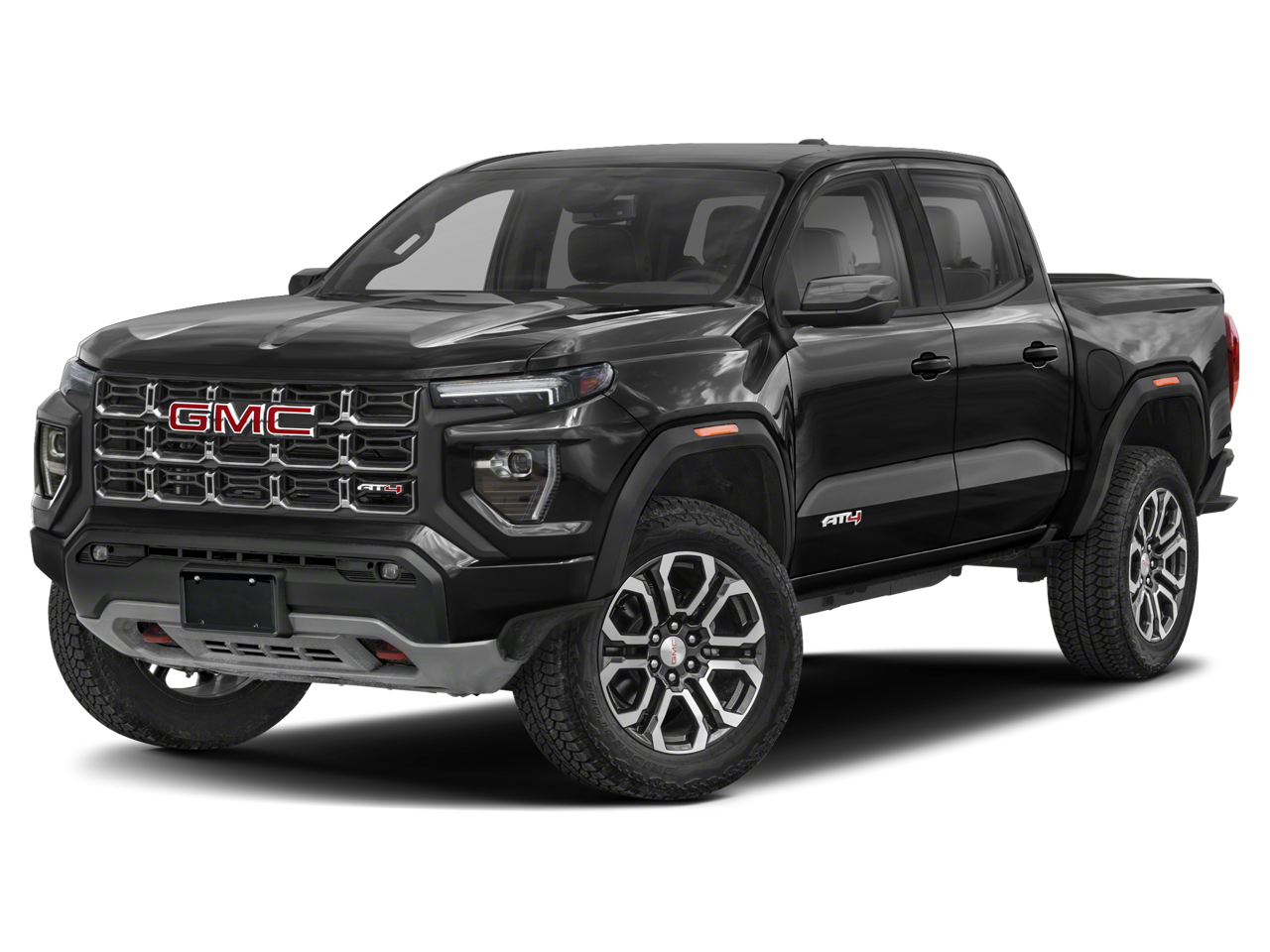

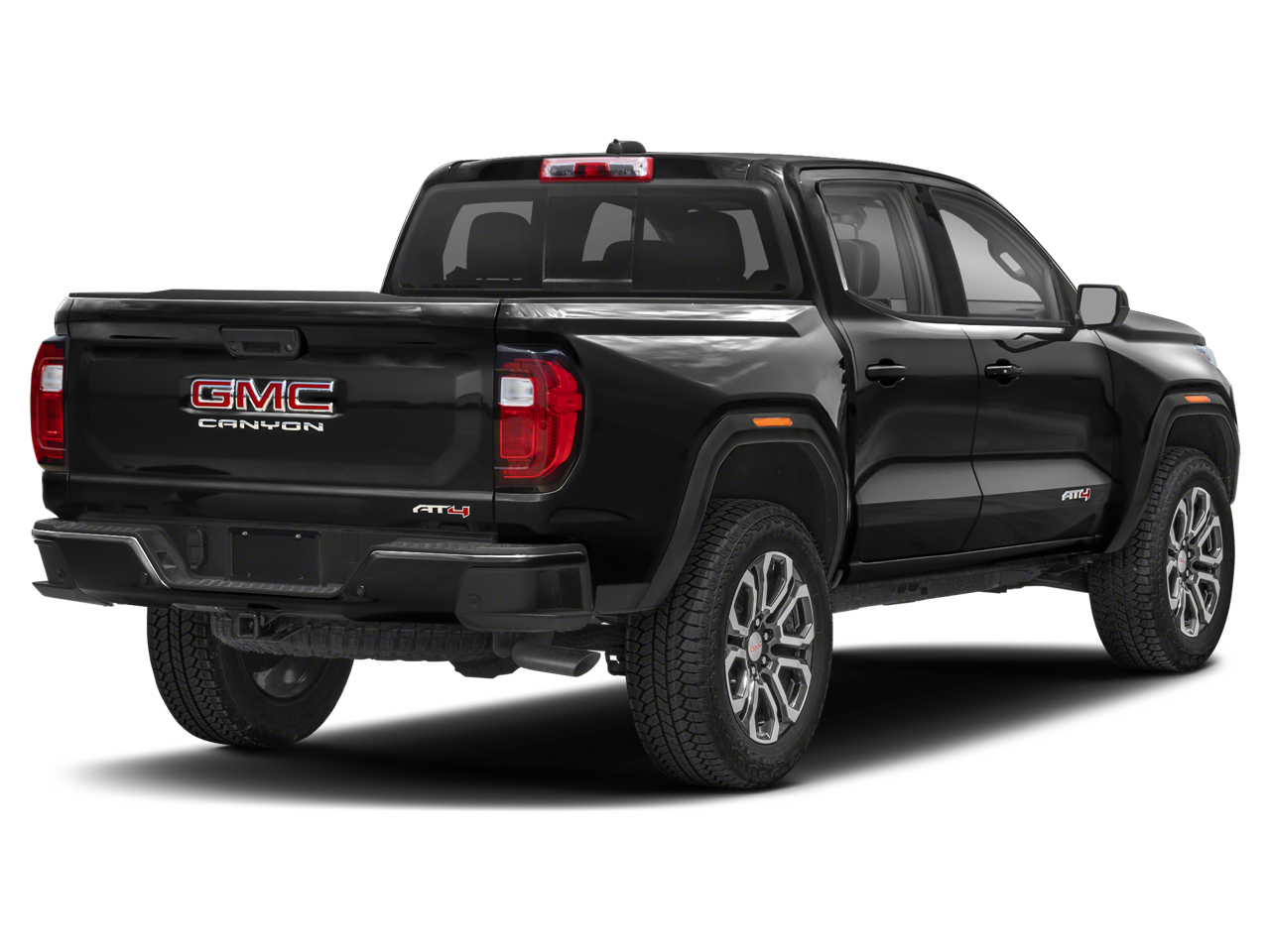

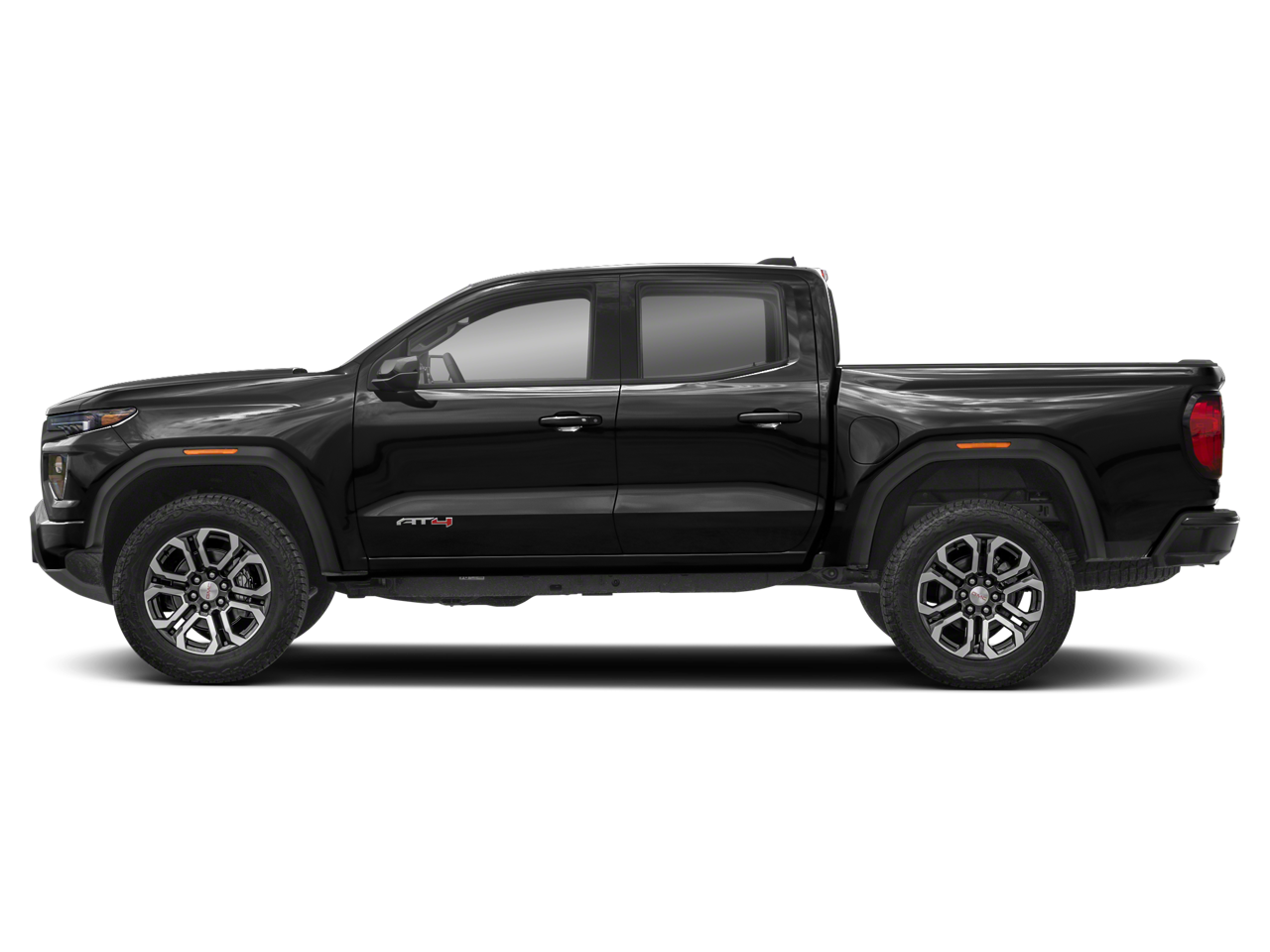

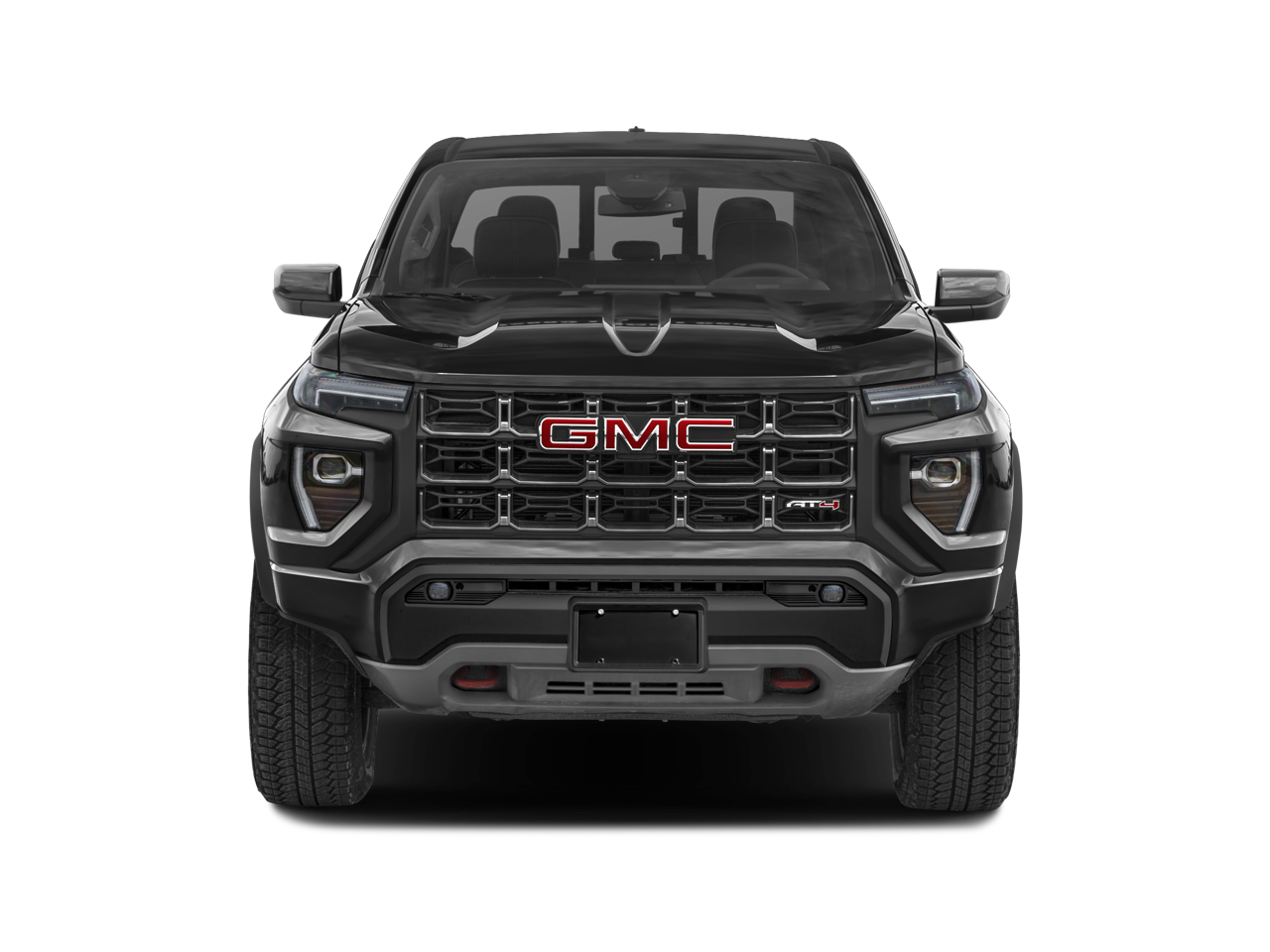

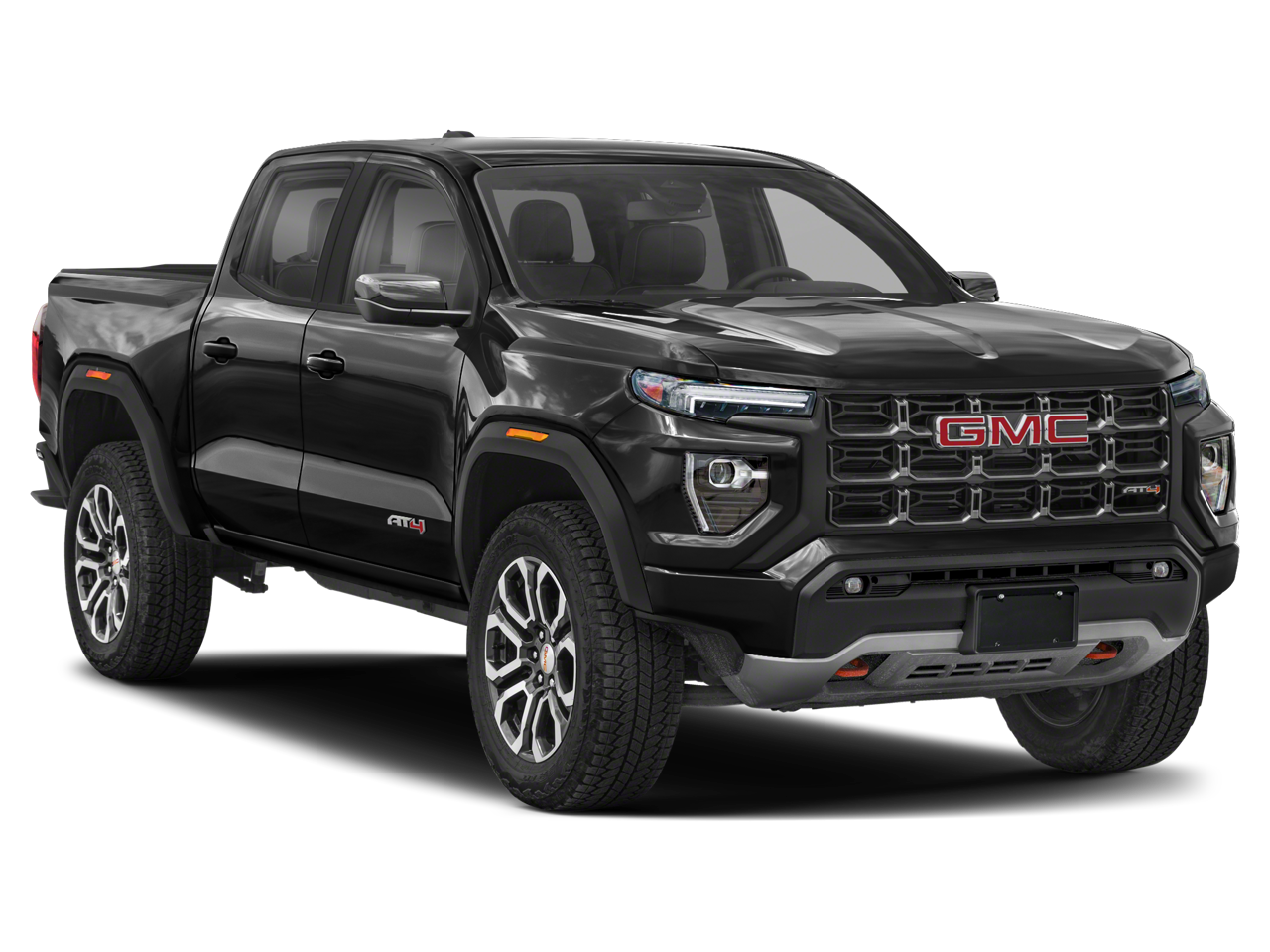

• Vehicle Name: GMC Canyon
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.1
