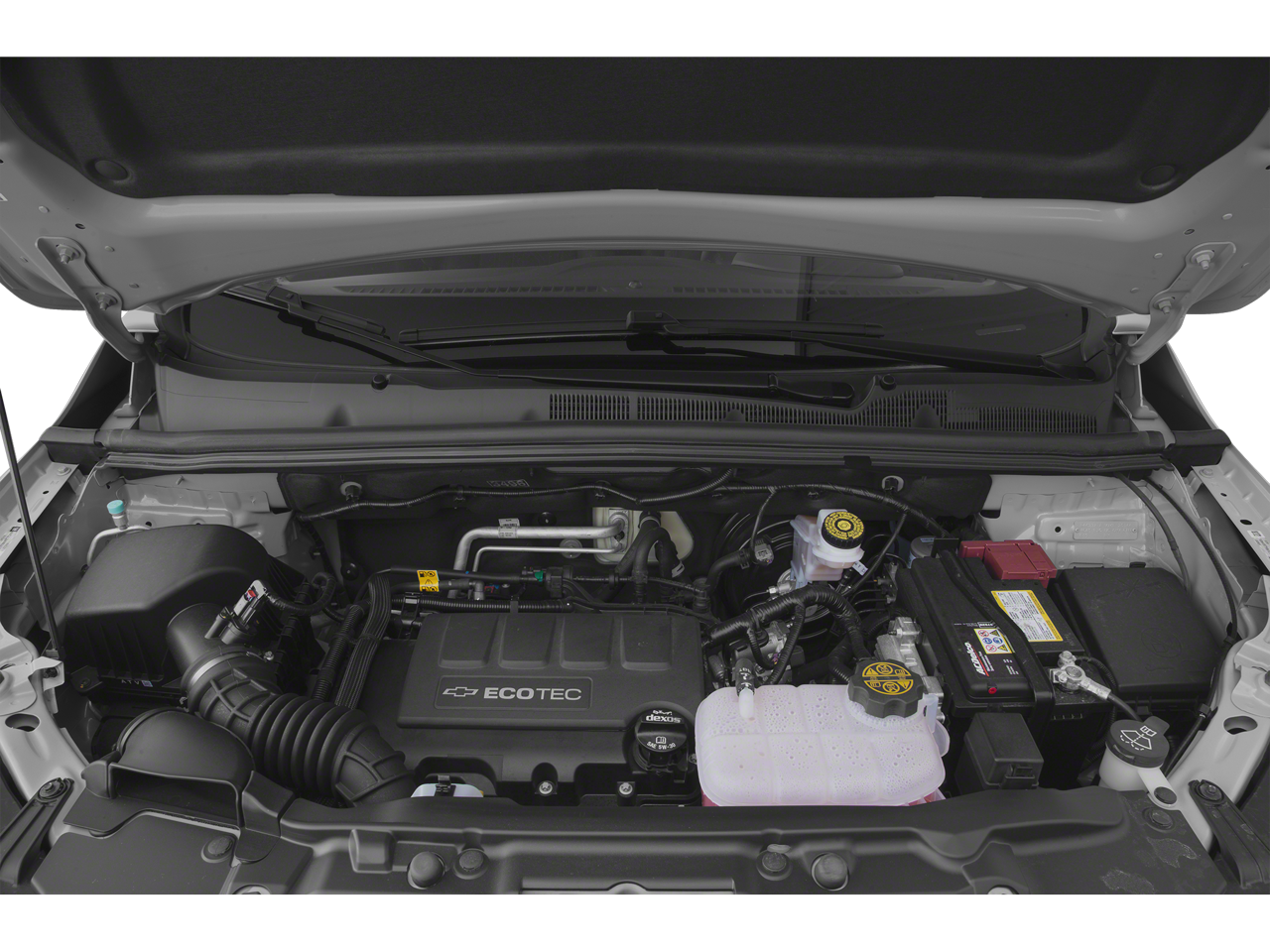

ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4-CYLINDER SEQUENTIAL MFI

• (138 hp [102.9 kW] @ 4900 rpm
• 148 lb-ft of torque [199.8 N-m] @ 1850 rpm) (STD)

• Audio system feature
• 6-speaker system
• Audio system

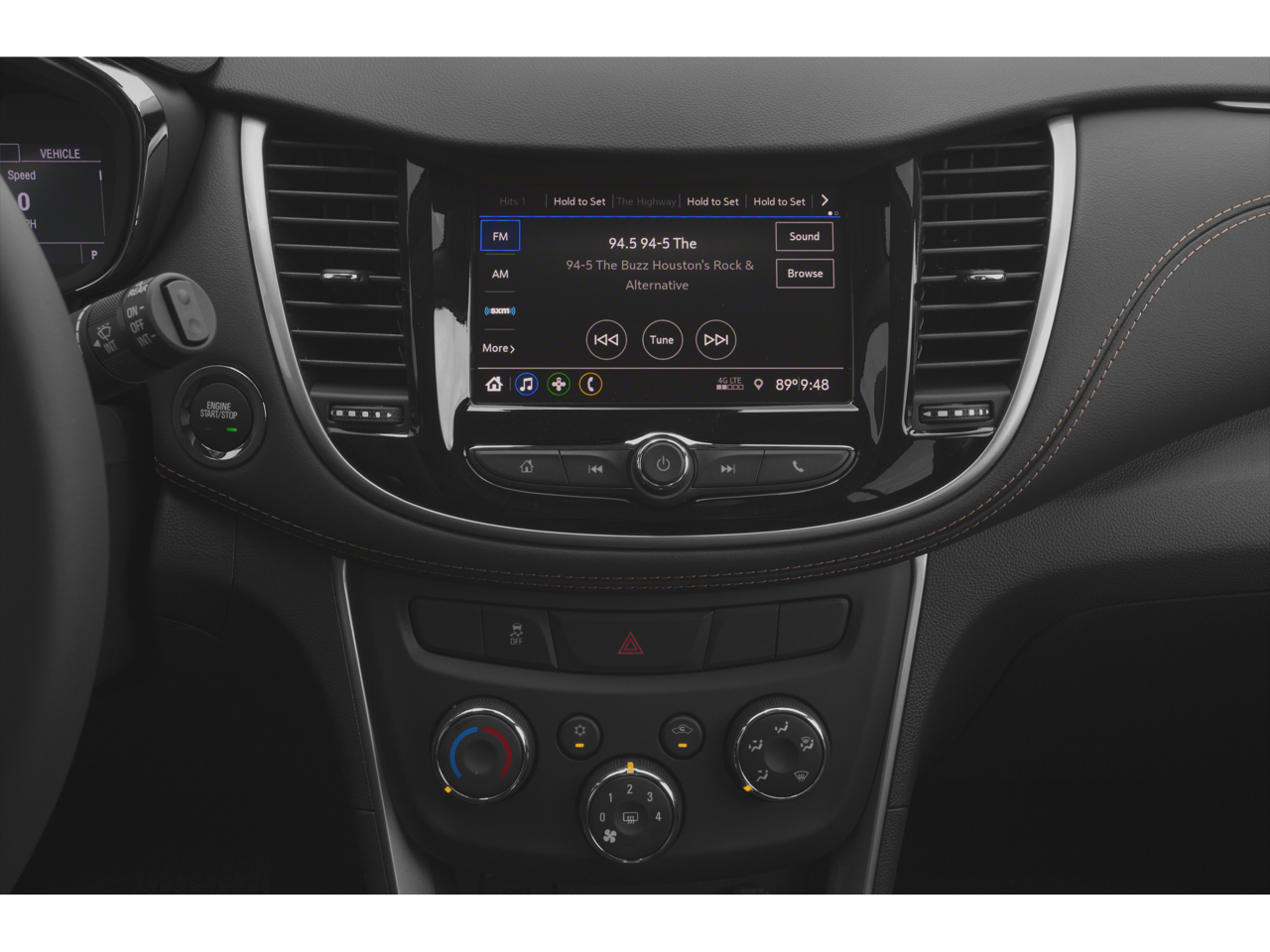

• Chevrolet Infotainment System with 7 diagonal color touch-screen
• AM/FM stereo voice pass-through technology
• includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone
• Audio system feature
• USB ports (2) with auxiliary input jack
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Door handles
• body-color
• Tires
• P205/70R16 all-season
• blackwall
• Mirrors
• outside heated power-adjustable
• body-color
• manual-folding
• Wheels
• 16 (40.6 cm) aluminum
• Windshield
• acoustic laminated
• Luggage rack
• side rails
• roof-mounted
• Wheel
• spare
• 16 (40.6 cm) steel
• Liftgate
• rear applique
• body-color
• Wiper
• rear intermittent
• Headlamps
• halogen projector type with automatic on/off
• Moldings
• beltline side glass (Chrome. Black when (WBL) Redline Edition is ordered.)
• Tire
• compact spare
• Windshield
• solar absorbing
• Glass
• deep-tinted
• rear windows and liftgate
• Wipers
• front intermittent
• Tail lamps
• sculpted with LED accent
• Lighting
• interior with front reading lights and dome light

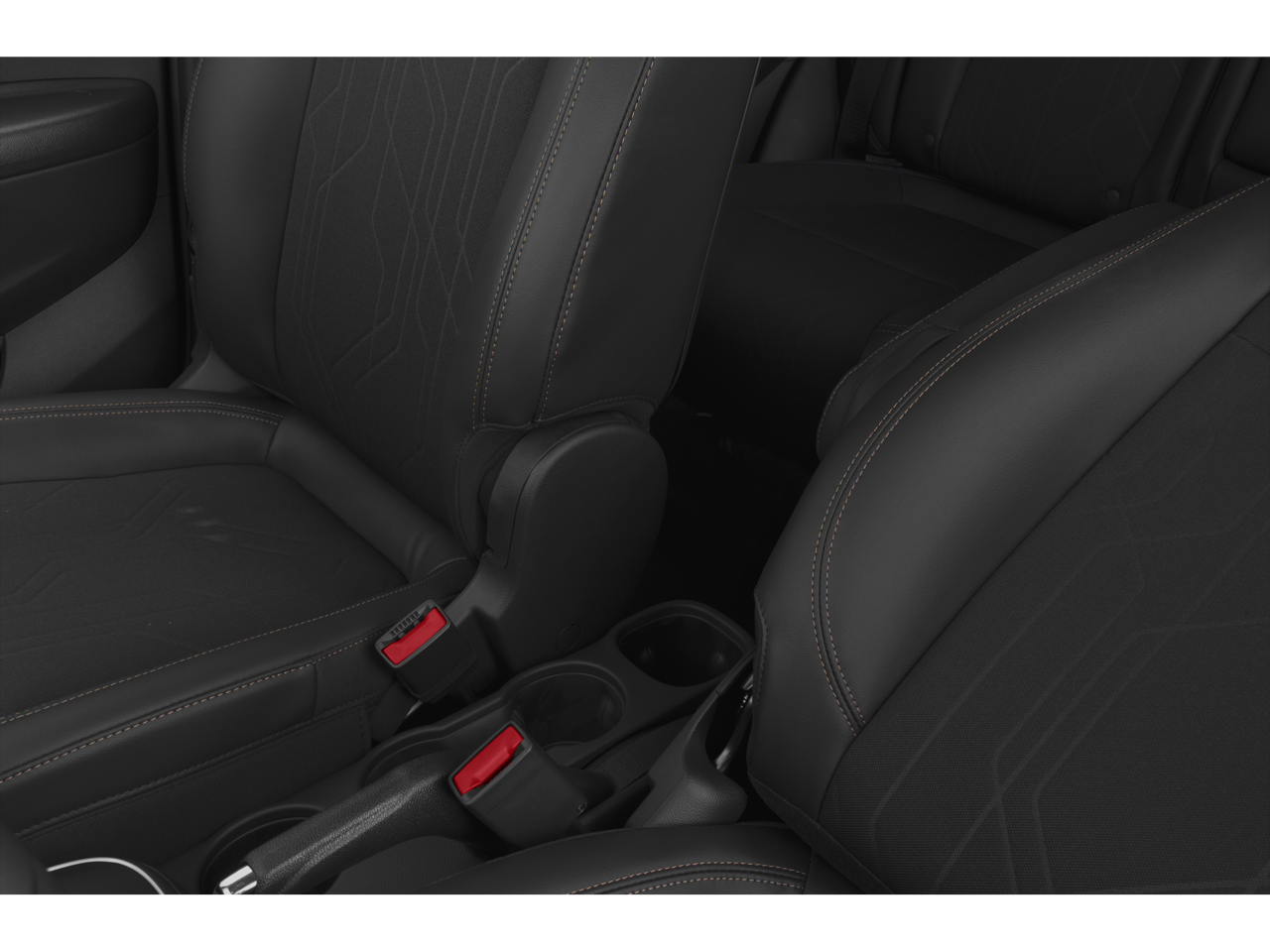

• Armrest
• driver seat
• Power outlet
• 110-volt
• located on rear of center console
• Shift knob
• satin silver and chrome
• Power outlet
• auxiliary
• 12-volt
• Lighting
• cargo area
• Floor mats
• color-keyed and carpeted front and rear
• Seatback
• front passenger flat-folding
• Defogger
• rear-window
• electric
• Cargo storage
• tray under rear floor
• Remote vehicle starter system
• Seat adjuster
• front passenger 2-way manual
• Air filter
• particle
• Map pocket
• driver seatback
• Seat adjuster
• driver 4-way manual
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

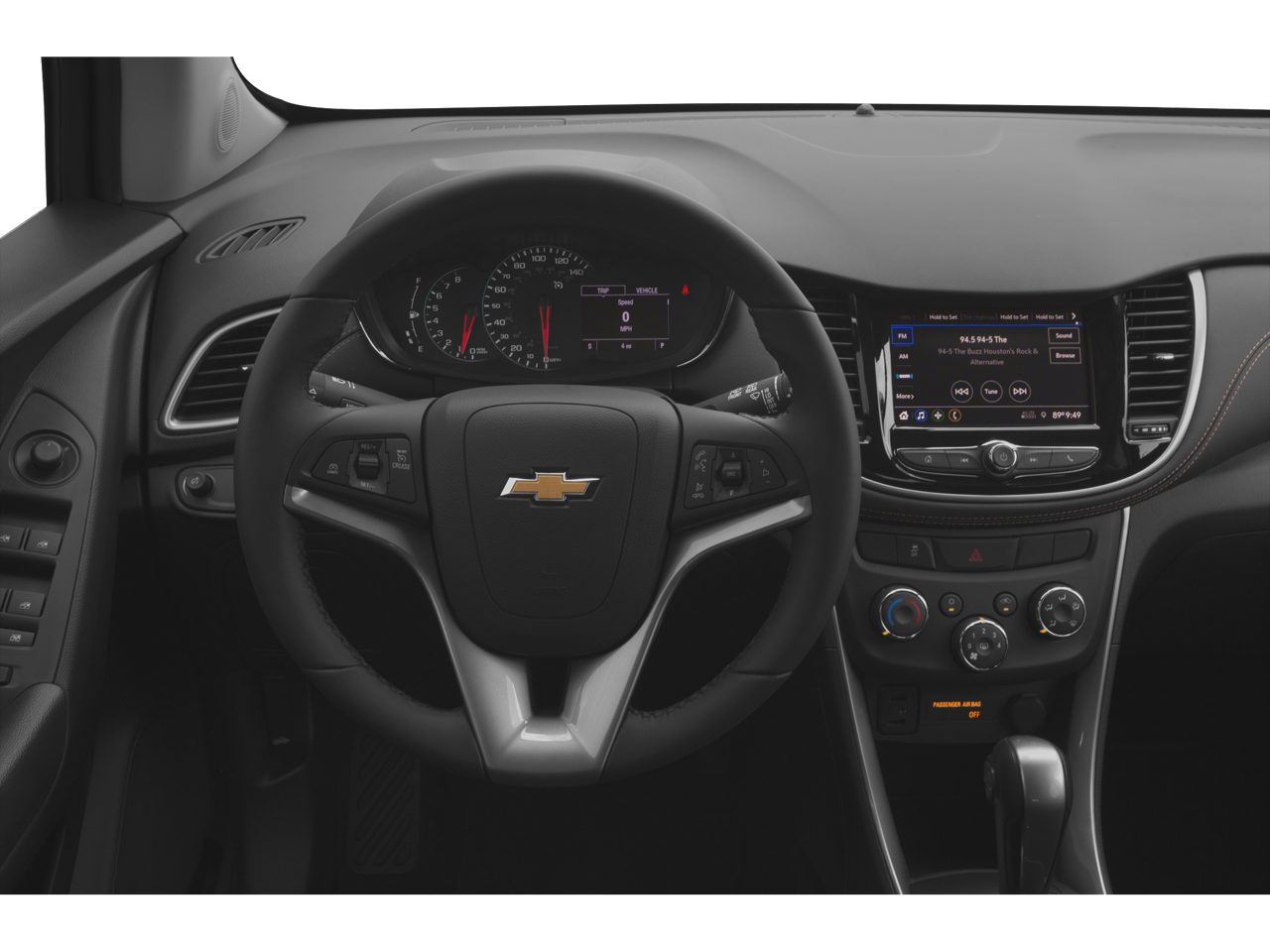

• Steering wheel controls
• mounted audio and phone interface controls

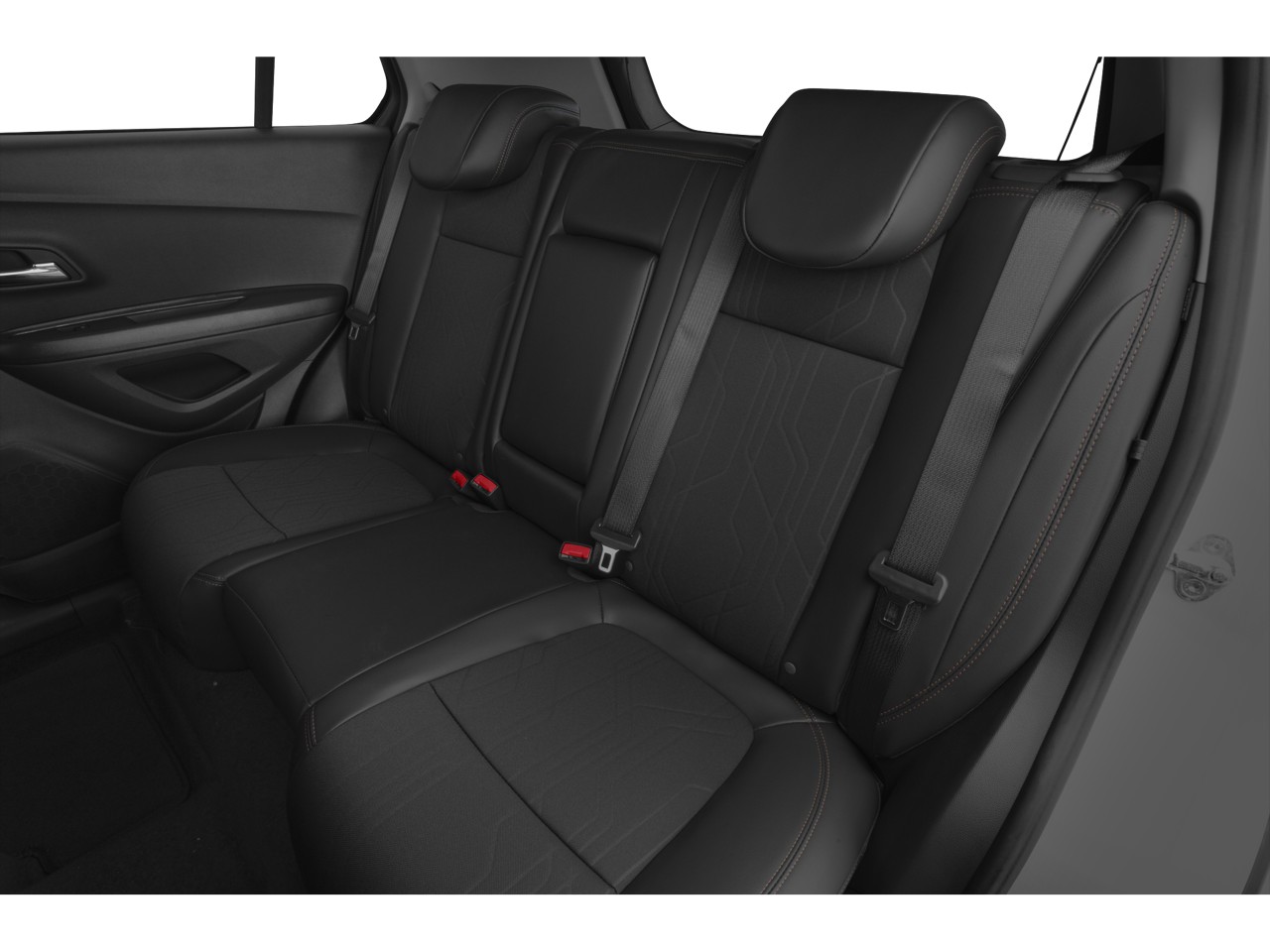

• Seat
• rear 60/40 split-bench
• folding
• Visors
• driver and front passenger vanity mirrors
• covered
• Steering column
• manual tilt and telescoping
• Keys
• (2) foldable
• Door locks
• power programmable

• Vehicle
• EPA Classification: Small Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 28
• EPA Fuel Economy Est - City (MPG): 26
• EPA Fuel Economy Est - Hwy (MPG): 31
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 130
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 3146
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Torsion Beam
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): - TBD -
• Tires
• Front Tire Order Code: RAJ
• Rear Tire Order Code: RAJ
• Spare Tire Order Code: - TBD -
• Front Tire Size: P205/70R16
• Rear Tire Size: P205/70R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 35.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14
• Exterior Dimensions
• Wheelbase (in): 100.6
• Length, Overall (in): 167.2
• Width, Max w/o mirrors (in): 69.9
• Height, Overall (in): 66.0
• Track Width, Front (in): 60.6
• Track Width, Rear (in): 60.6
• Min Ground Clearance (in): 6.2
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 57.0
• Cargo Area Length @ Floor to Seat 2 (in): 29.3
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 31.8
• Cargo Volume to Seat 1 (ft³): 48.4
• Cargo Volume to Seat 2 (ft³): 18.7
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 92.8
• Front Head Room (in): 39.6
• Front Leg Room (in): 40.8
• Front Shoulder Room (in): 54.1
• Front Hip Room (in): 51.7
• Second Head Room (in): 38.8
• Second Leg Room (in): 35.7
• Second Shoulder Room (in): 52.8
• Second Hip Room (in): 50.7
• Summary
• Vehicle Name: Chevrolet Trax
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.3
