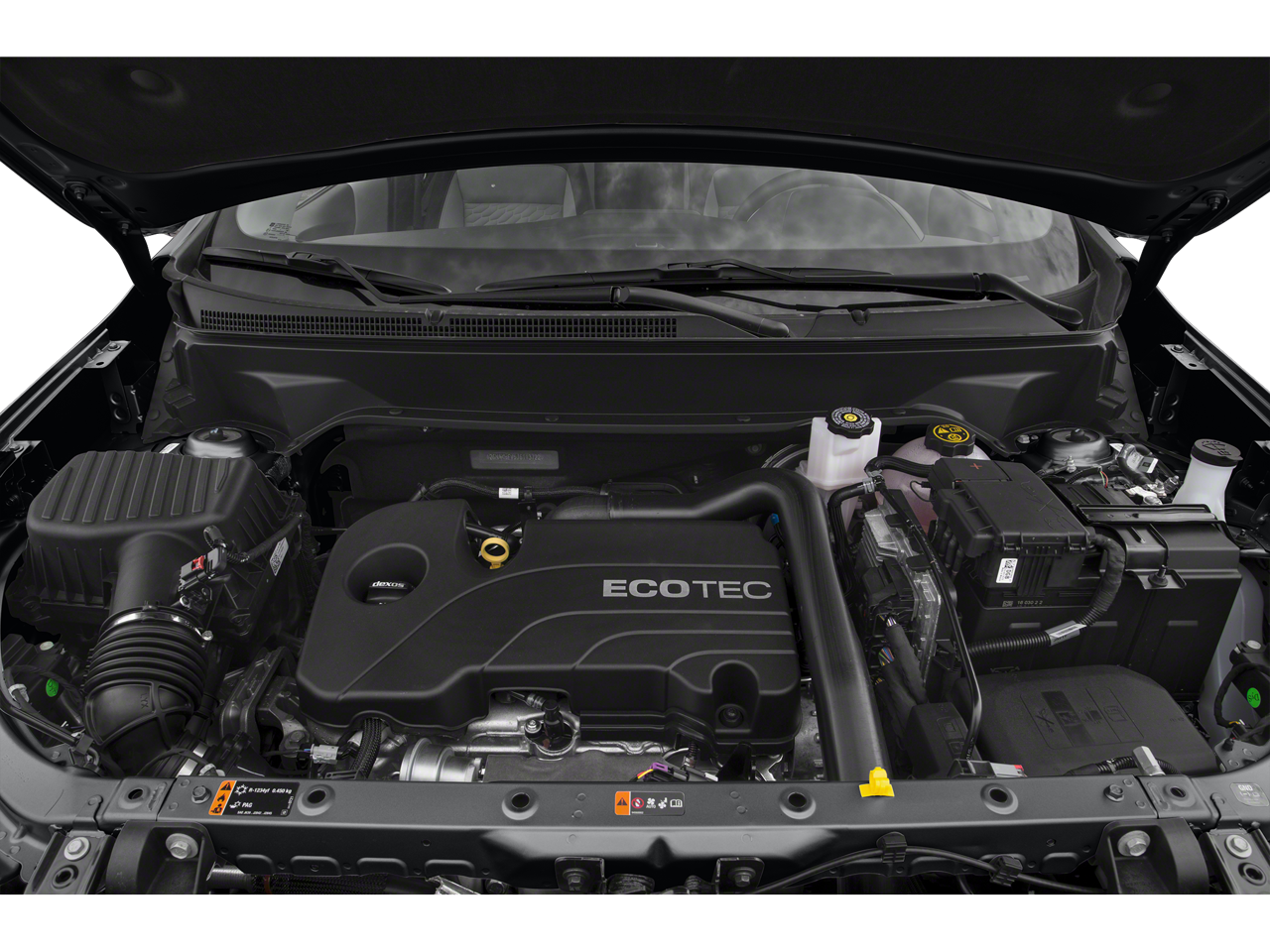

ENGINE, 1.5L TURBO DOHC 4-CYLINDER, SIDI, VVT

• (170 hp [127.0 kW] @ 5600 rpm
• 203 lb-ft of torque [275.0 N-m] @ 2000 - 4000 rpm) (STD)

• Antenna
• roof-mounted (Black.)
• Audio system feature
• 6-speaker system
• Noise control system
• active noise cancellation

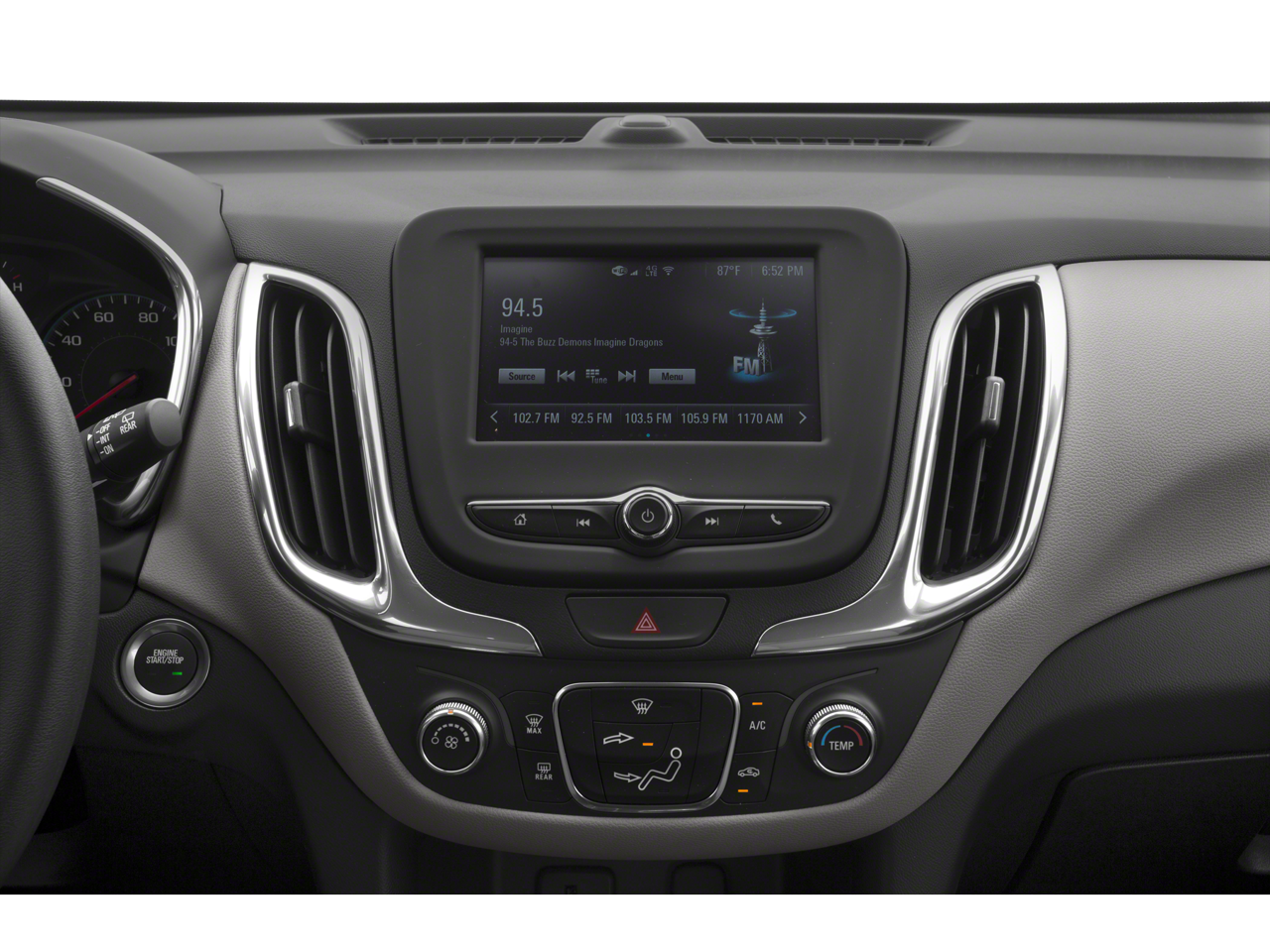

• Audio system
• Chevrolet Infotainment 3 system
• 7 diagonal color touchscreen
• AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• Apple CarPlay and Android Auto capable.
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system (Go to my.chevrolet.com/learn to find out which phones are compatible with the vehicle.)
• Headlamp control
• IntelliBeam auto high beam
• Trim
• Black lower window
• Wheels
• 17 (43.2 cm) aluminum
• Headlamps
• halogen composite
• Headlamp control
• automatic on and off with automatic delay

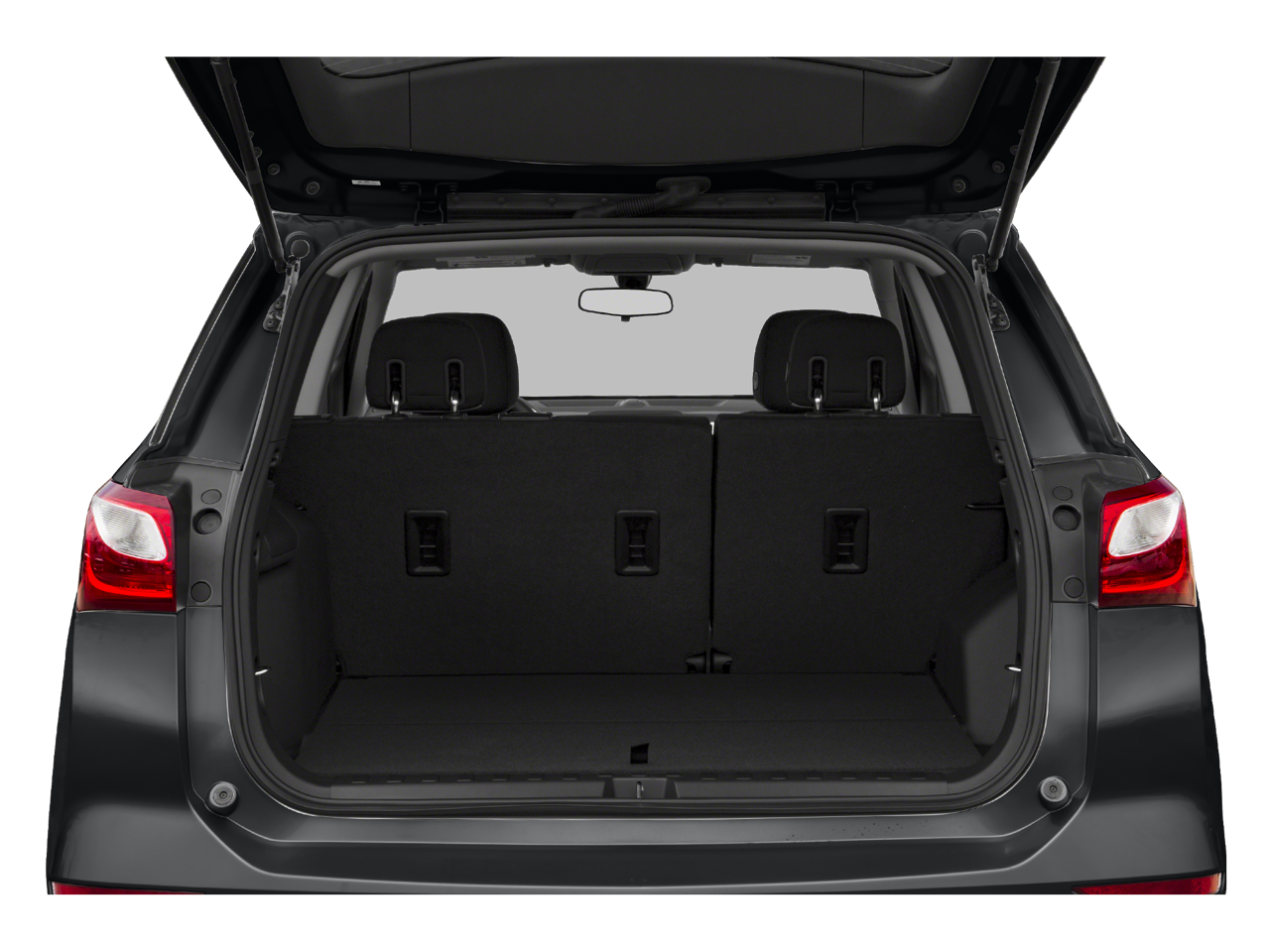

• Liftgate
• rear manual
• Wheel
• spare
• 16 (40.6 cm) steel
• Tires
• P225/65R17 all-season blackwall (FWD only.)
• Door handles
• body-color
• Mirror caps
• Black
• Mirrors
• outside heated power-adjustable
• manual-folding
• Glass
• acoustic
• laminated windshield
• Tire
• compact spare
• T135/70R16 blackwall
• Glass
• solar absorbing
• light
• Active Aero Shutters
• Display
• driver instrument information enhanced
• monochromatic
• Power outlet
• front auxiliary
• 12-volt
• Steering wheel controls
• audio
• phone interface and driver information center controls

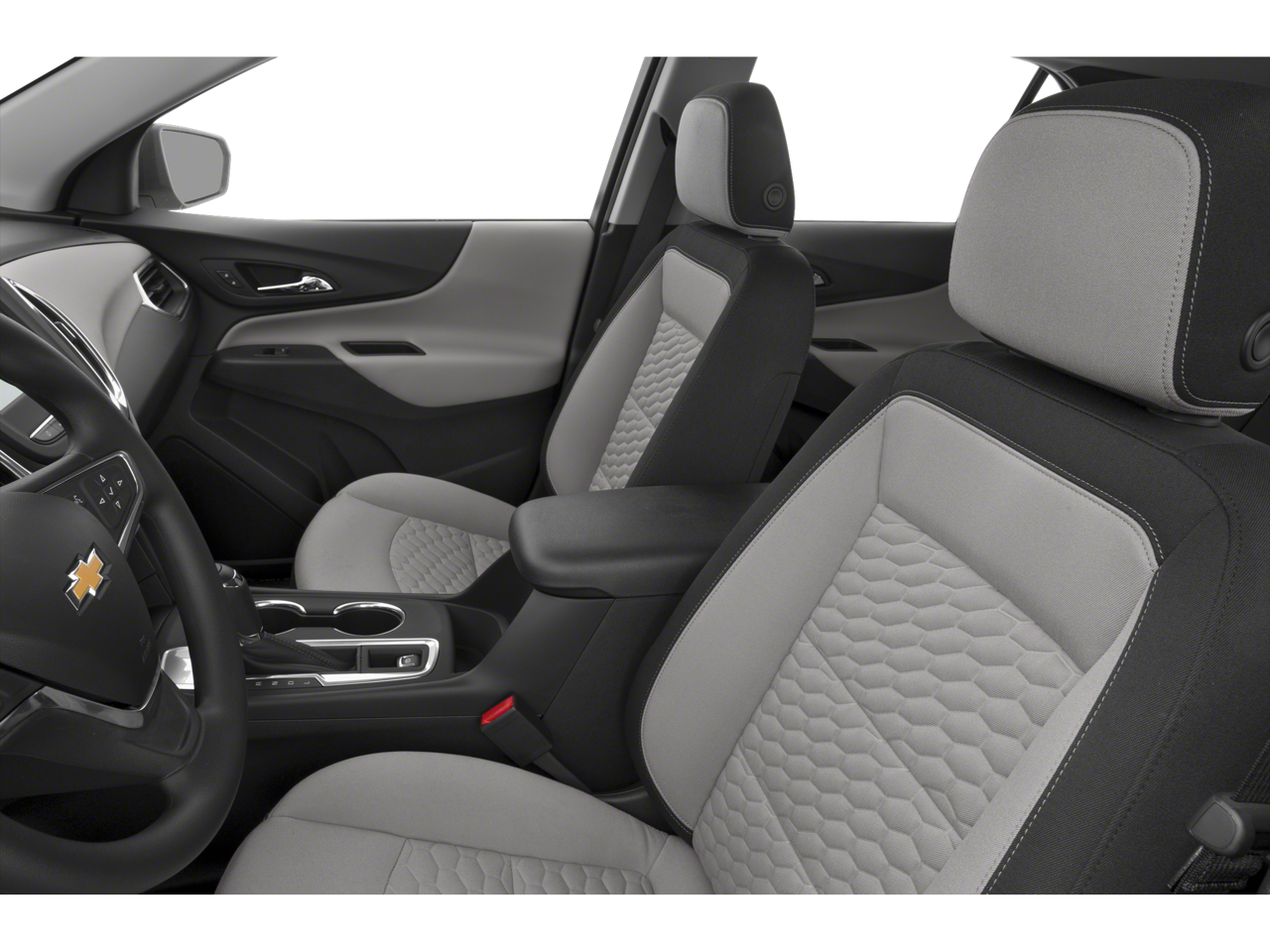

• Seat adjuster
• front passenger 4-way manual
• Defogger
• rear-window electric
• Theft-deterrent system
• unauthorized entry
• Assist handle
• driver
• Keyless Open includes extended range Remote Keyless Entry with lock and unlock feature

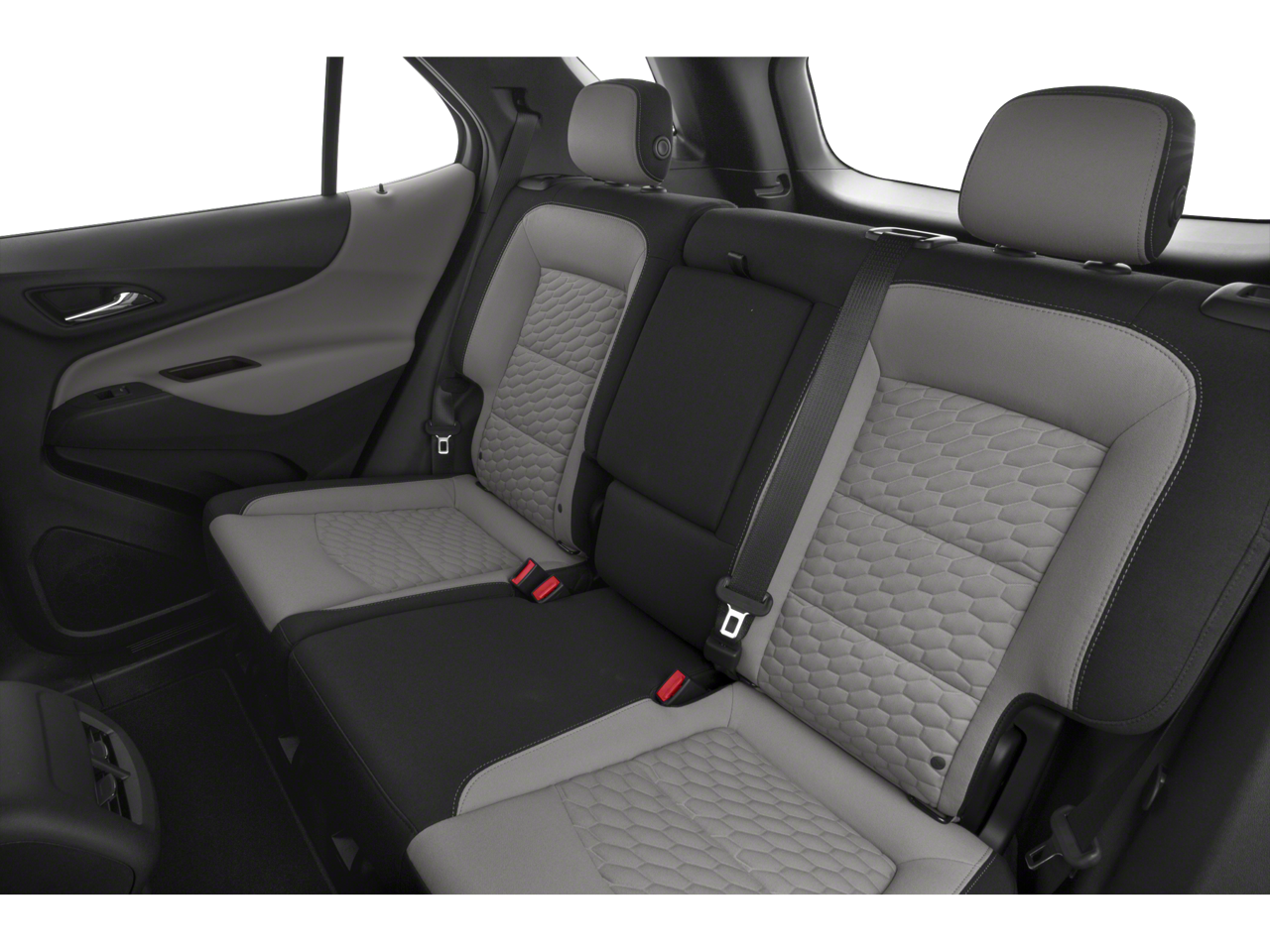

• Seat trim
• Premium Cloth
• Power outlet
• cargo area auxiliary
• 12-volt
• Mirror
• inside rearview manual day/night
• USB charging-only ports
• 2

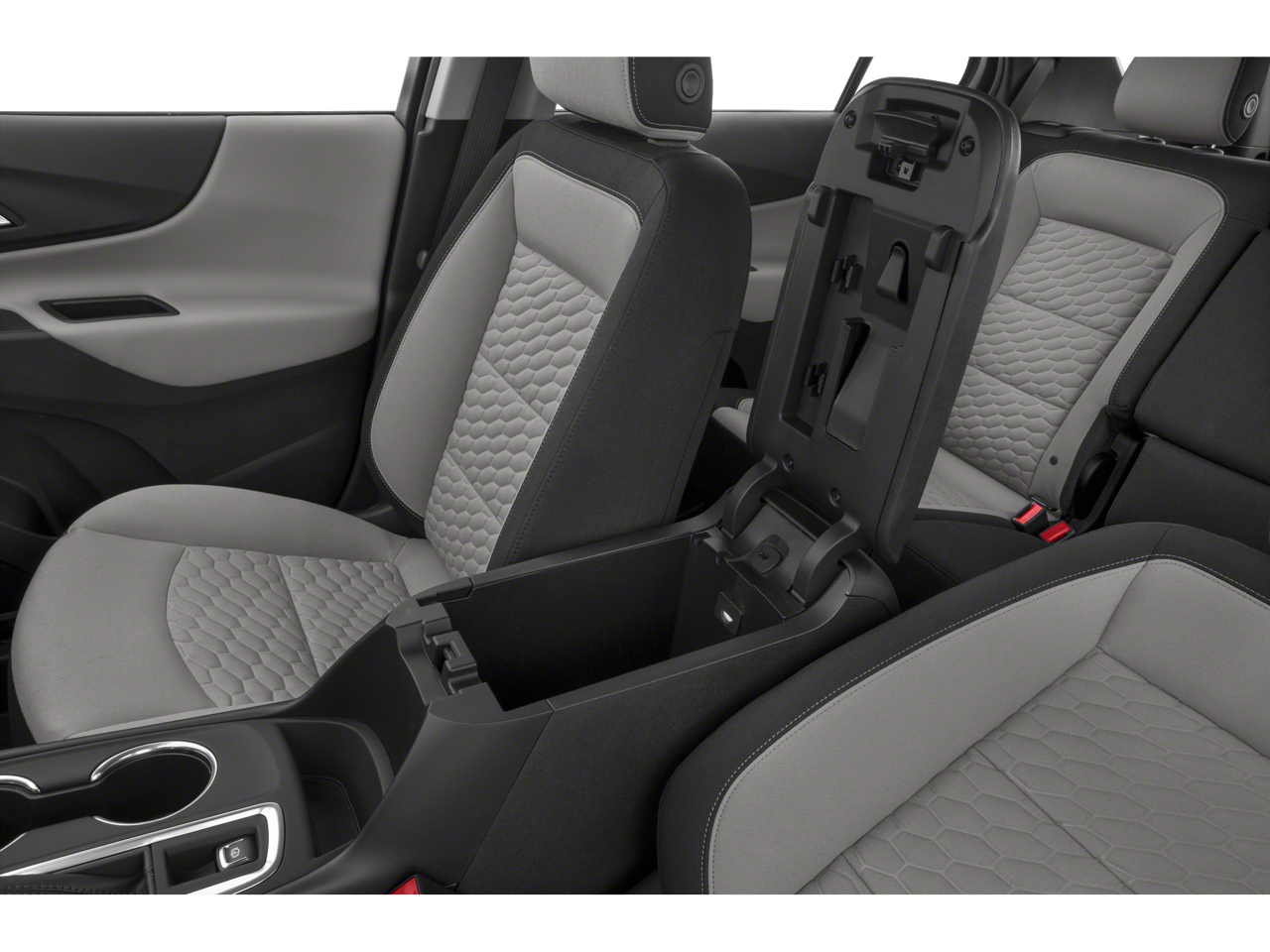

• located in the rear of the floor console
• Door locks
• power with lock-out protection
• Window
• power with driver Express-Up and Down
• Floor mats
• carpeted rear
• Remote panic alarm
• USB ports
• 2
• with auxiliary input jack
• located in front center stack storage area

• Vehicle
• EPA Classification: 2WD Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 28
• EPA Fuel Economy Est - City (MPG): 26
• EPA Fuel Economy Est - Hwy (MPG): 31
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 3274
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 150
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Four-Link
• Suspension Type - Front (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.8 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 11.3 x - TBD -
• Tires
• Front Tire Order Code: 5CX
• Rear Tire Order Code: 5CX
• Spare Tire Order Code: RJA
• Front Tire Size: P225/65R17
• Rear Tire Size: P225/65R17
• Spare Tire Size: T135/70R16
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 16 x -TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 37.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14.9
• Exterior Dimensions
• Wheelbase (in): 107.3
• Length, Overall (in): 183.1
• Width, Max w/o mirrors (in): 72.6
• Height, Overall (in): 65.4
• Track Width, Front (in): 62.2
• Track Width, Rear (in): 62.2
• Min Ground Clearance (in): 7.6
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 63.9
• Cargo Volume to Seat 2 (ft³): 29.9
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 103.5
• Front Head Room (in): 40
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 57.2
• Front Hip Room (in): 54.2
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.9
• Second Shoulder Room (in): 55.5
• Second Hip Room (in): 51.7
• Summary

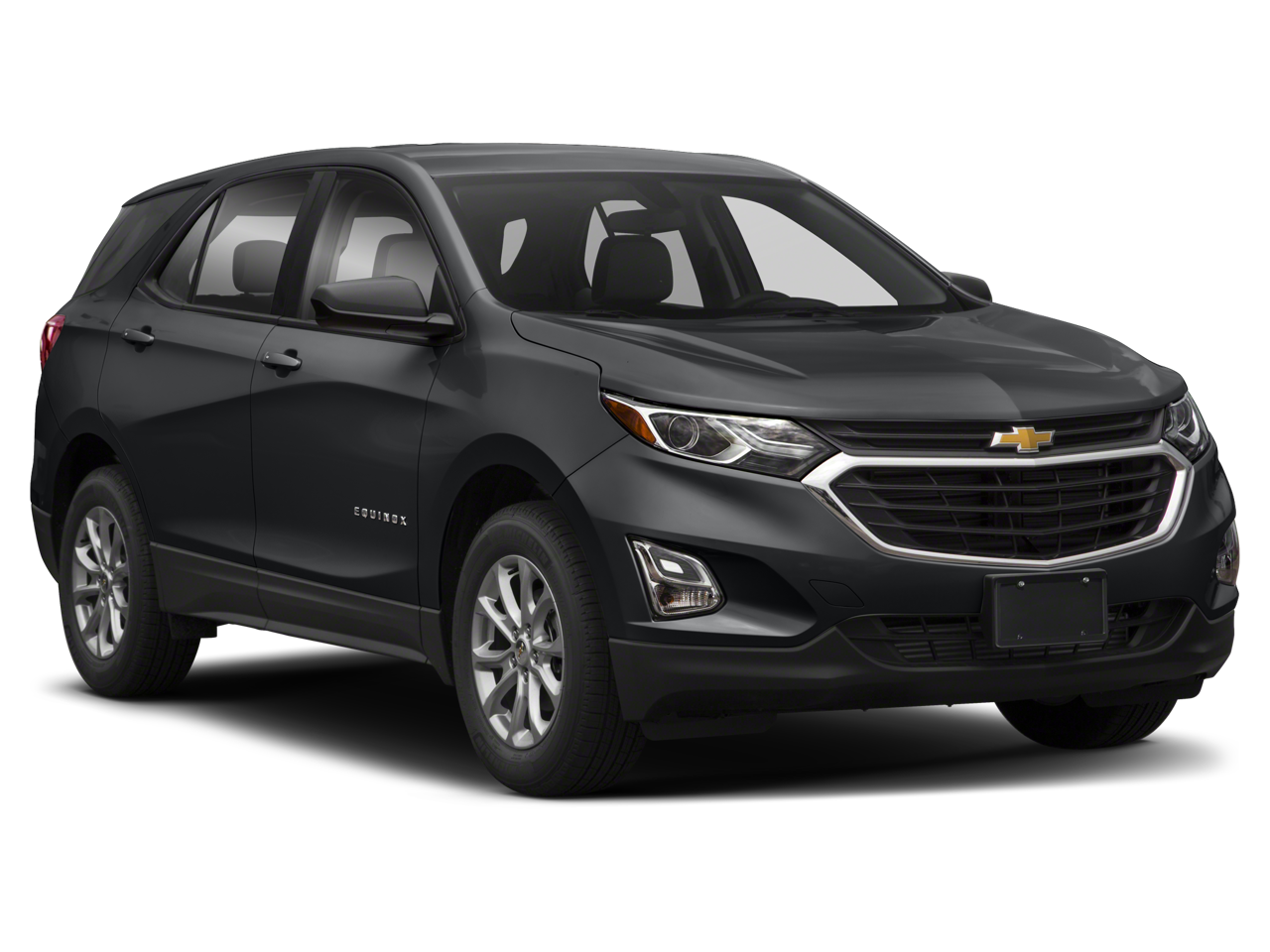

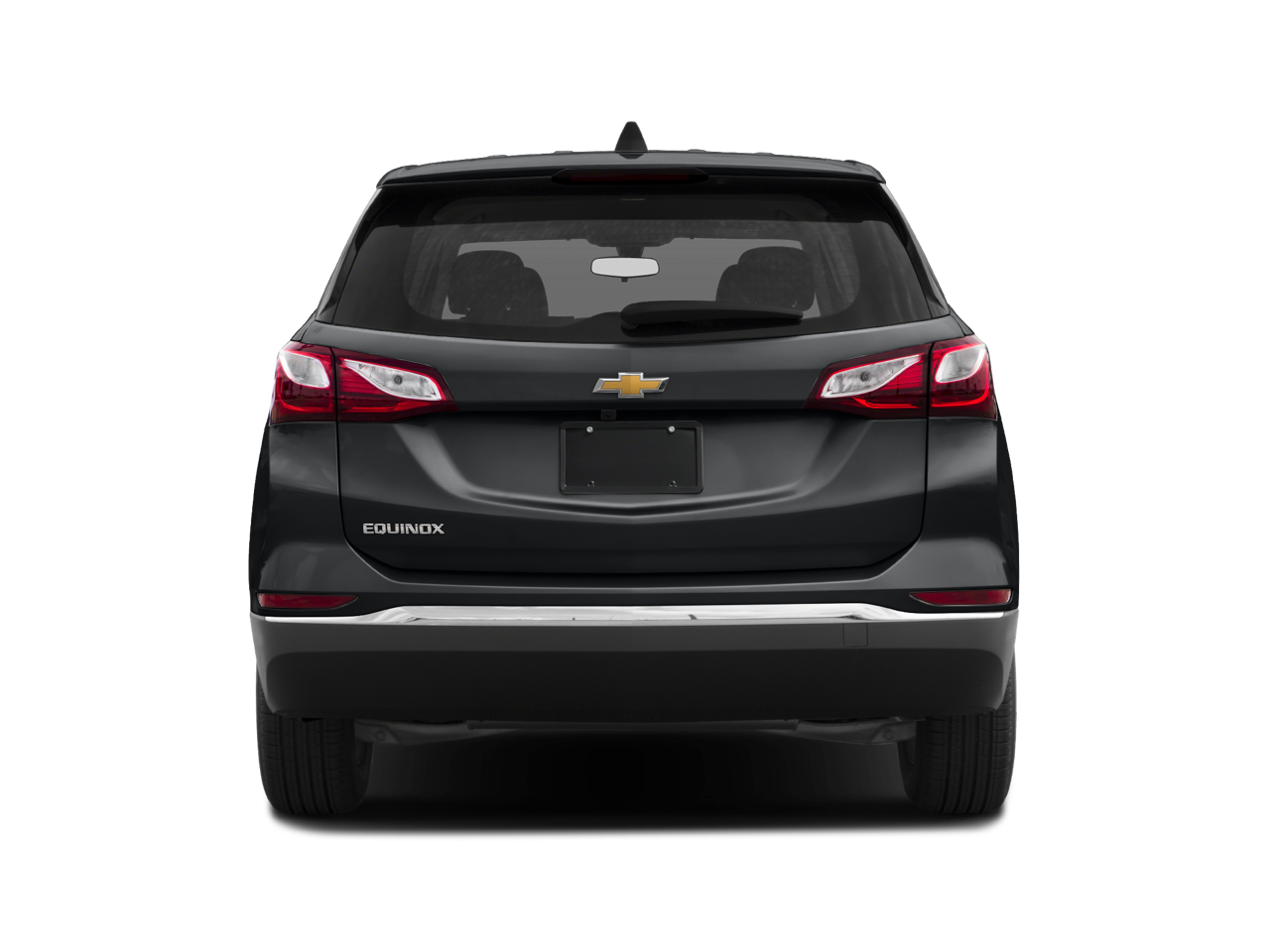

• Vehicle Name: Chevrolet Equinox
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.3
