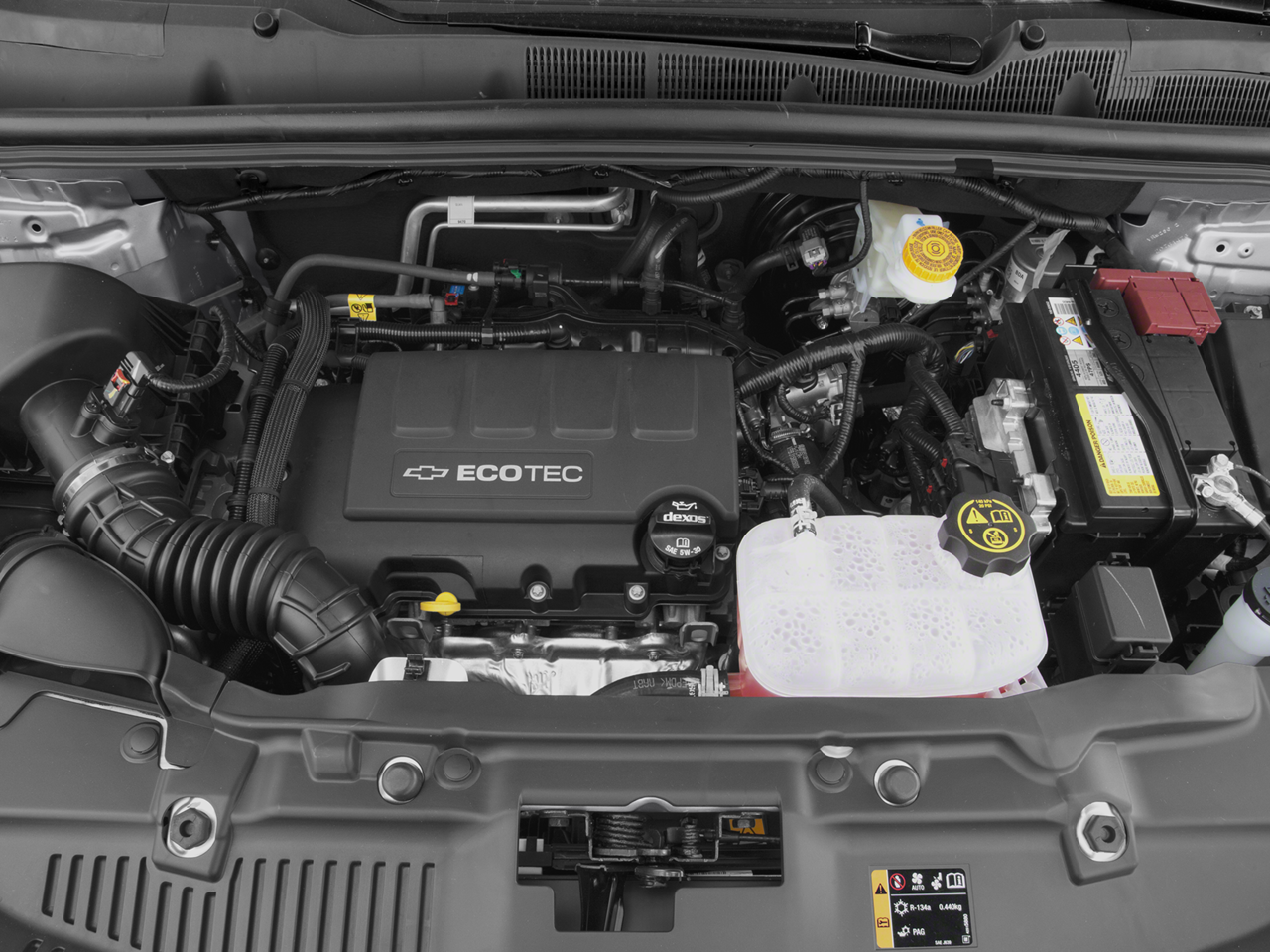

ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4-CYLINDER SEQUENTIAL MFI

• (138 hp [102.9 kW] @ 4900 rpm
• 148 lb-ft of torque [199.8 N-m] @ 1850 rpm) (STD)

• OnStar 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• includes OnStar Data Trial for 3 months or 3GB (whichever comes first) (Visit www.onstar.com for coverage map
• details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data. Available Wi-Fi requires compatible mobile device
• active OnStar service and data plan. Data plans provided by AT&T.)
• Audio system feature
• 6-speaker system
• Audio system

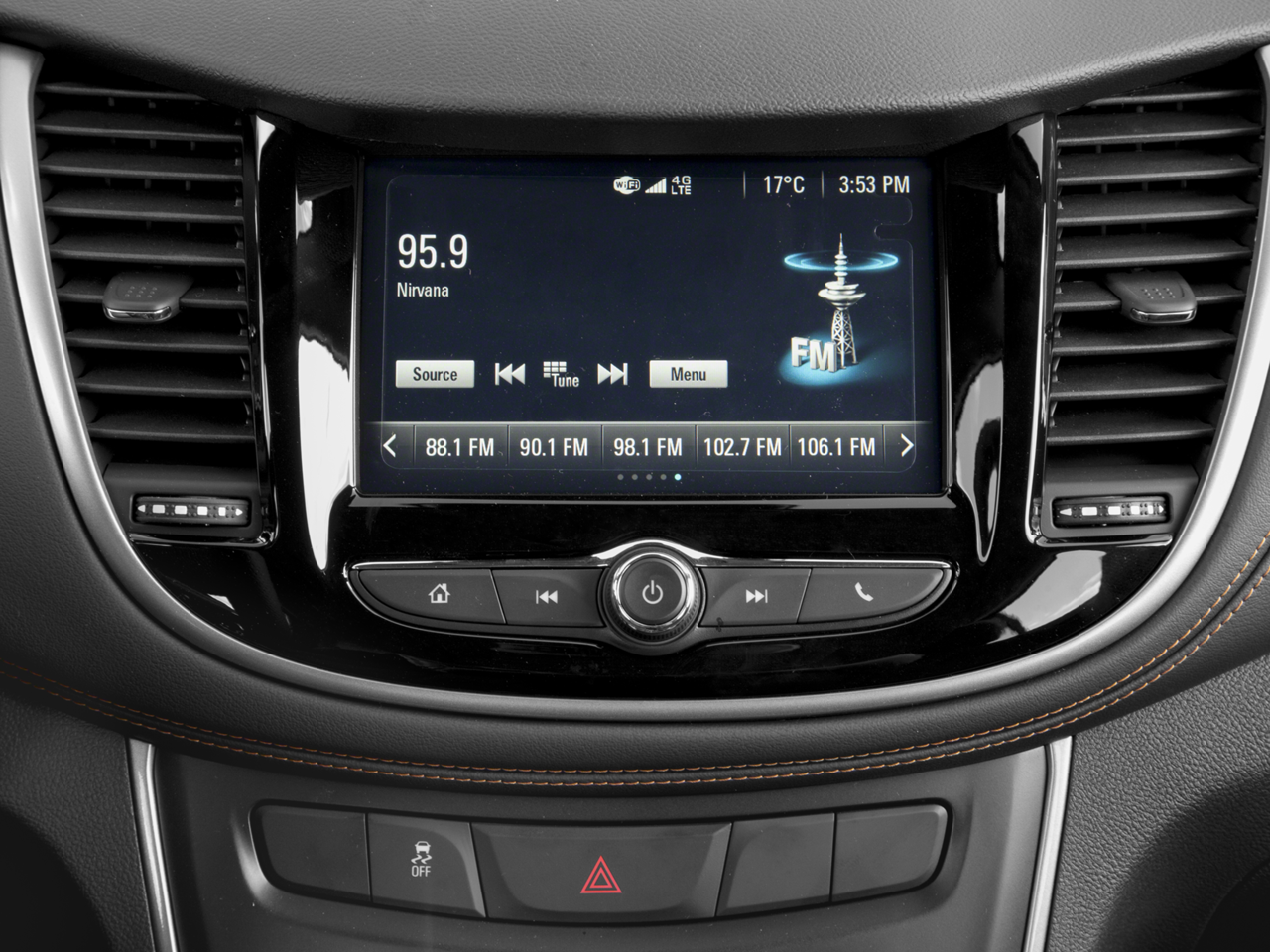

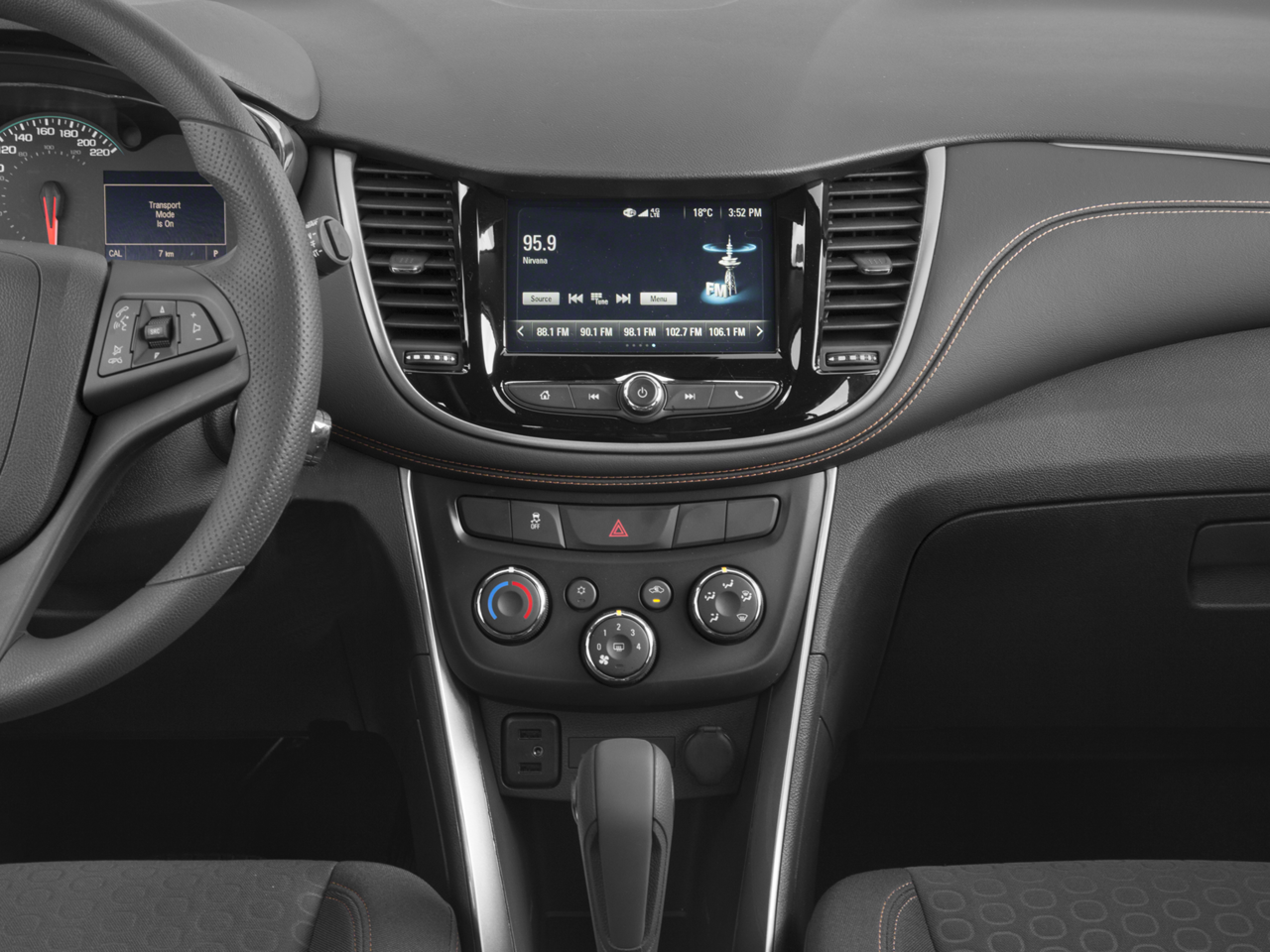

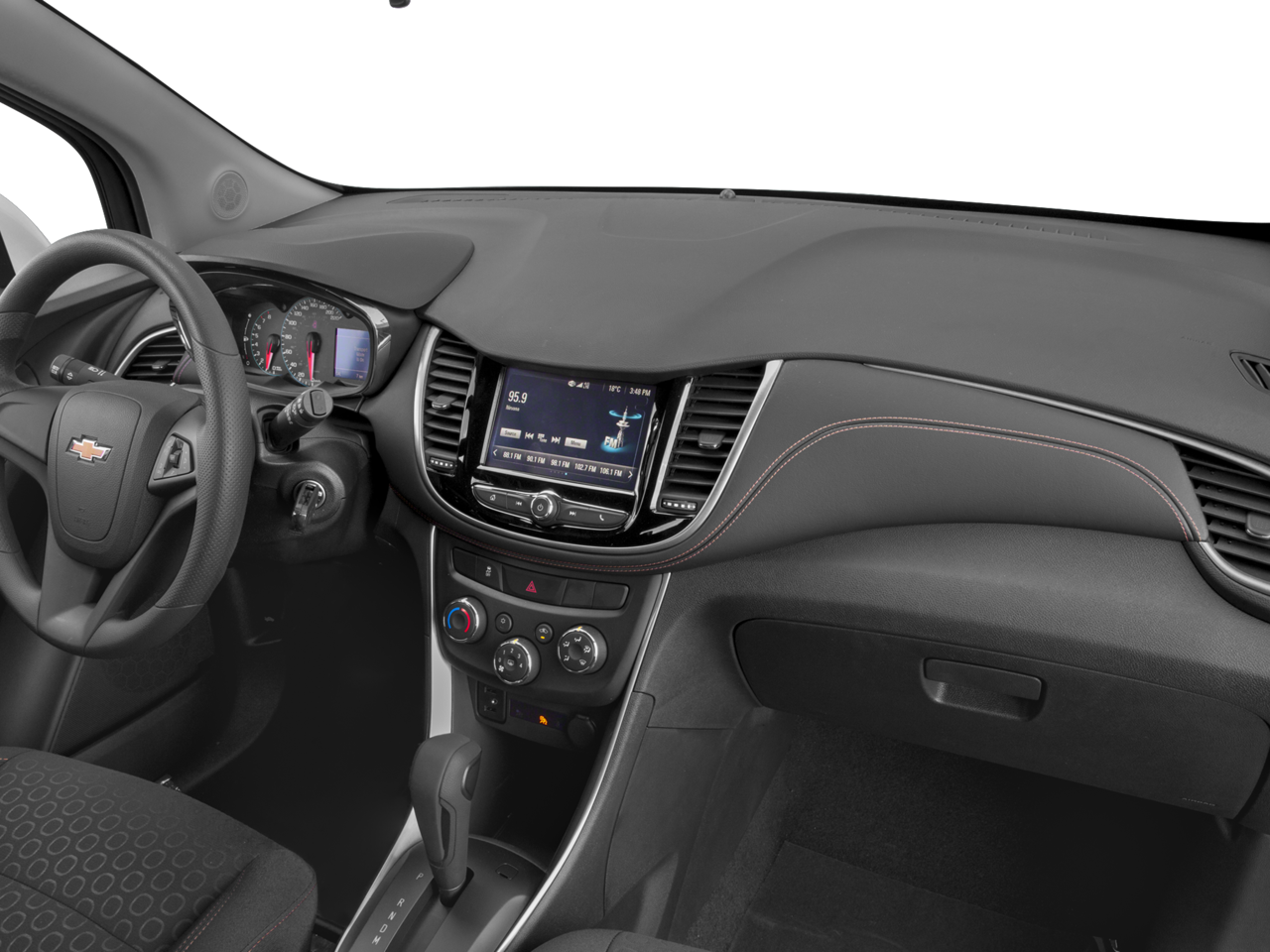

• Chevrolet MyLink Radio with 7 diagonal color touch-screen
• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone
• Audio system feature
• USB ports (2) with auxiliary input jack
• Mirrors
• outside power-adjustable
• body-color
• manual-folding with Black base
• Windshield
• solar absorbing
• Tire
• compact spare
• Windshield
• acoustic laminated
• Wheel
• spare
• 16 (40.6 cm) steel
• Wiper
• rear intermittent
• Wipers
• front intermittent

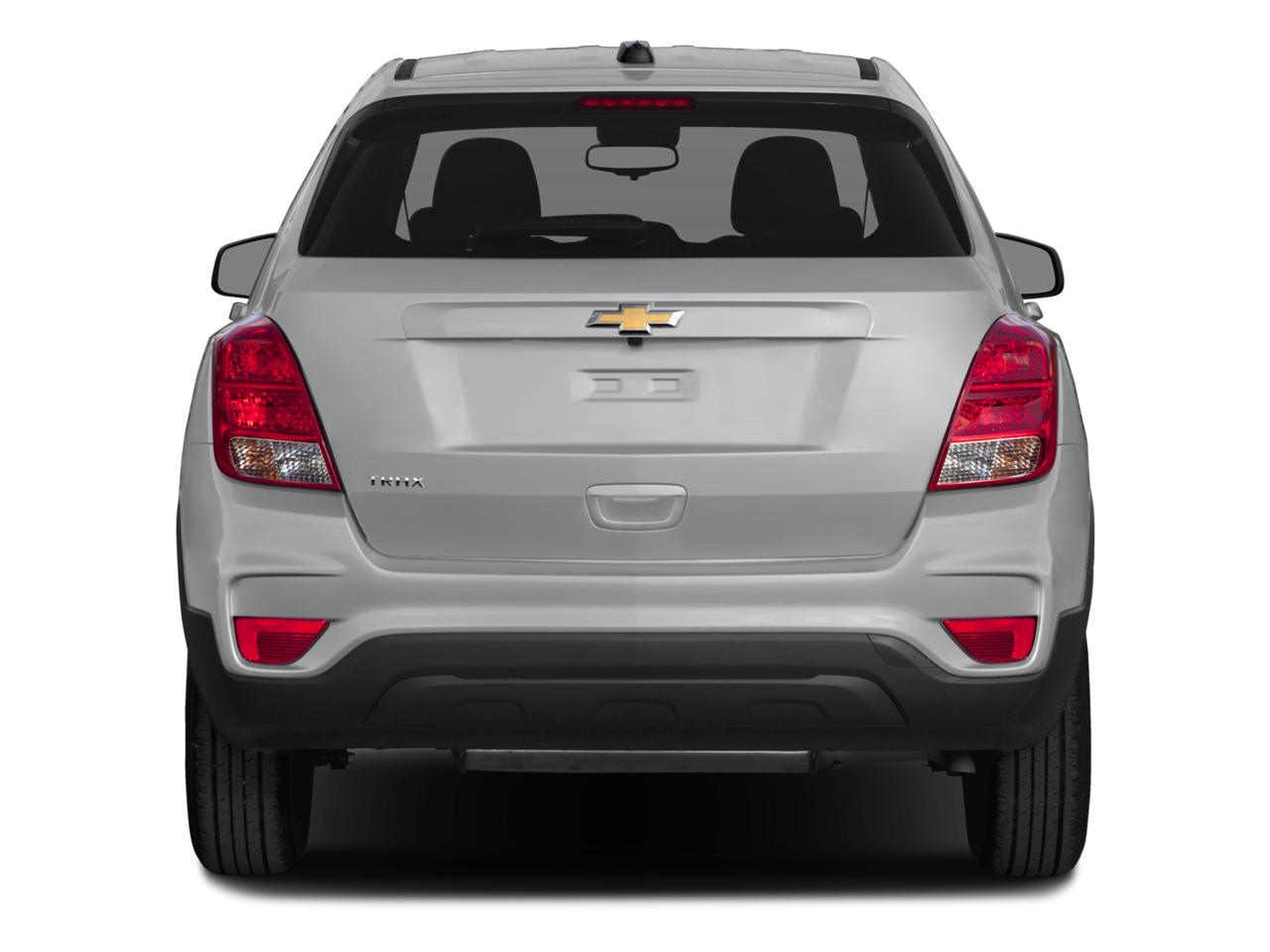

• Tail lamps
• sculpted

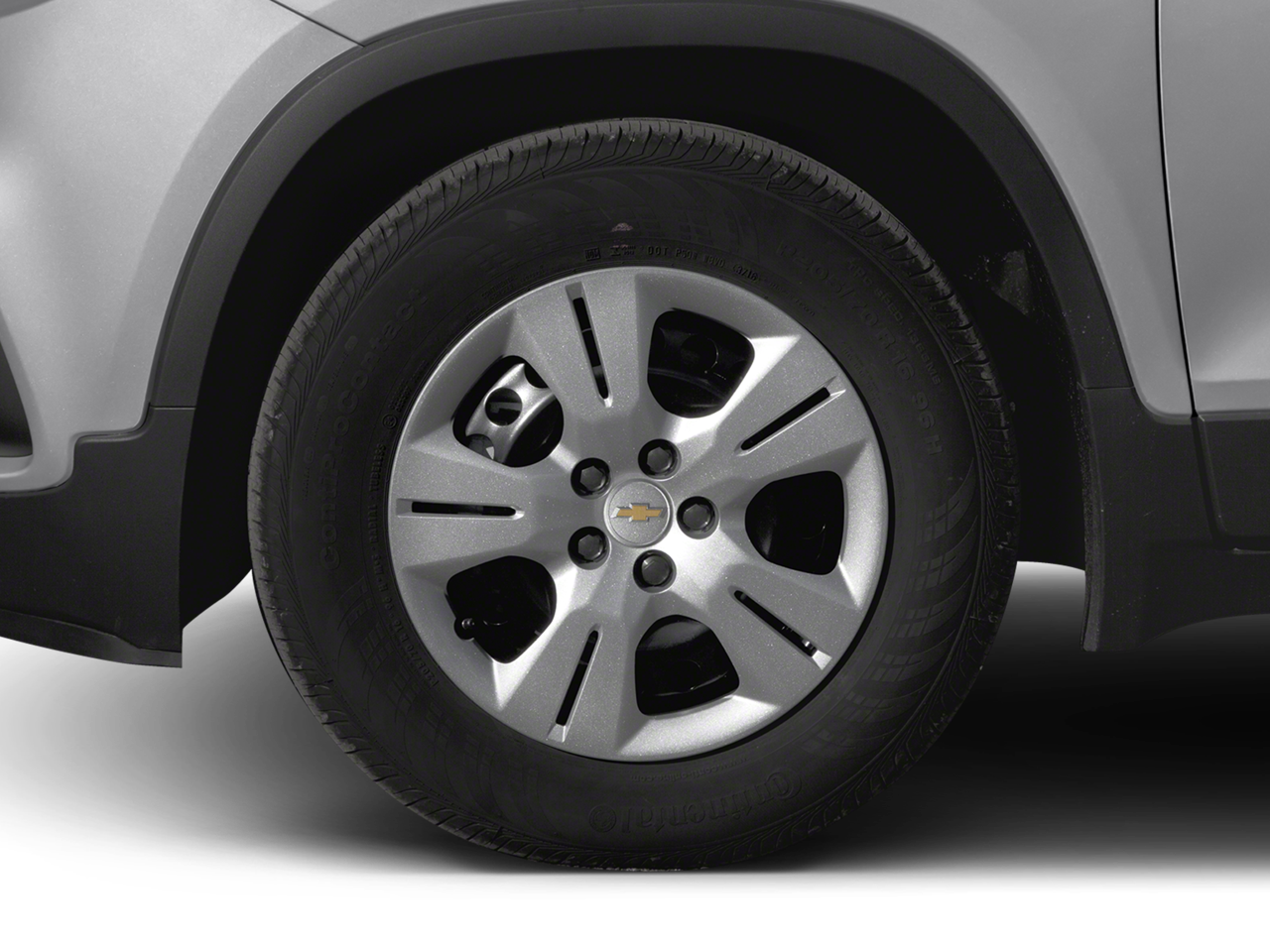

• Wheels
• 16 (40.6 cm) aluminum

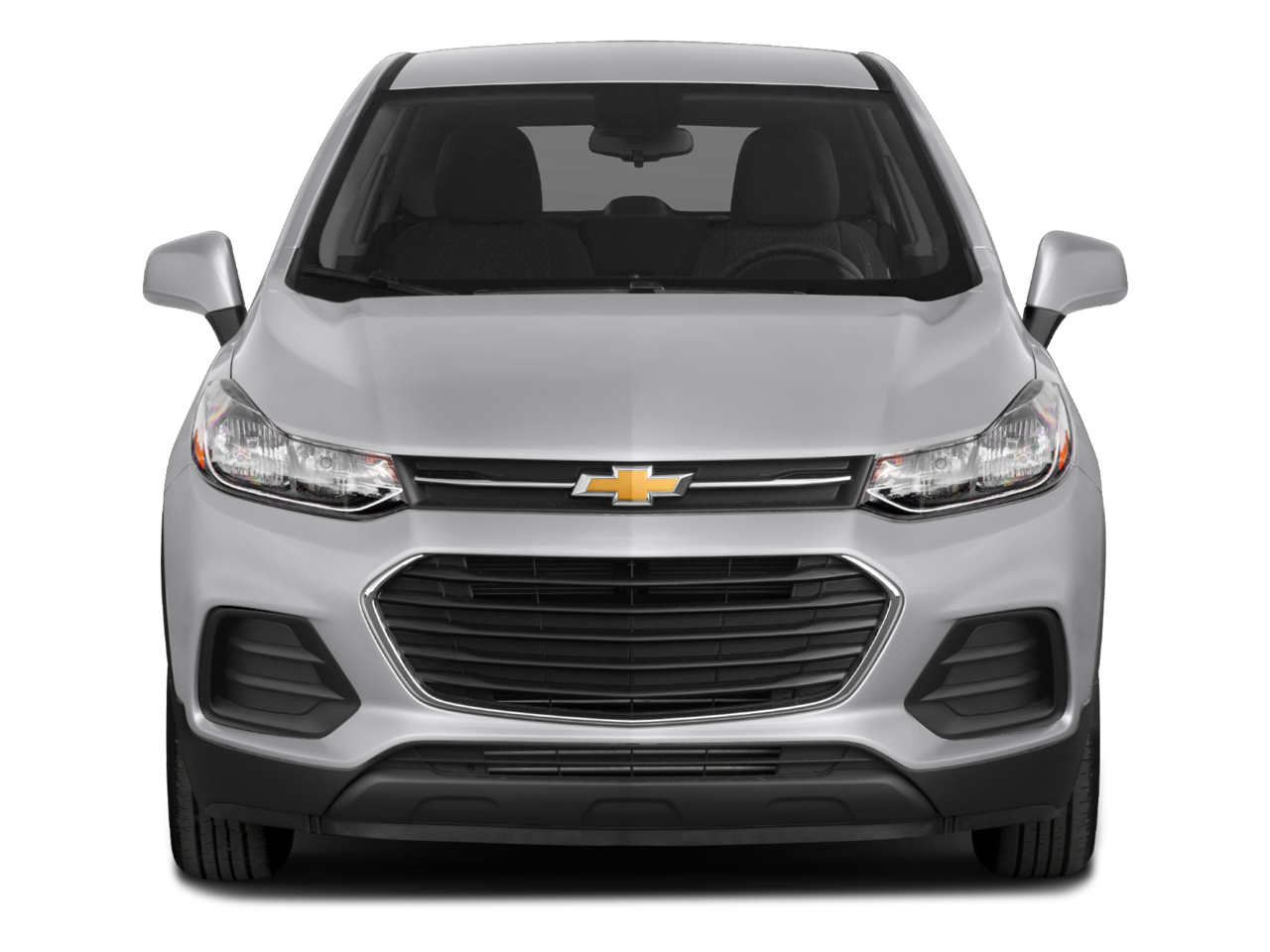

• Headlamps
• halogen reflector with automatic exterior lamp control
• Moldings
• beltline side glass (Black.)
• Tires
• P205/70R16 all-season
• blackwall
• Door handles
• body-color
• Glass
• solar absorbing
• Mirror
• inside rearview manual day/night
• Compass display located in the Driver Information Center

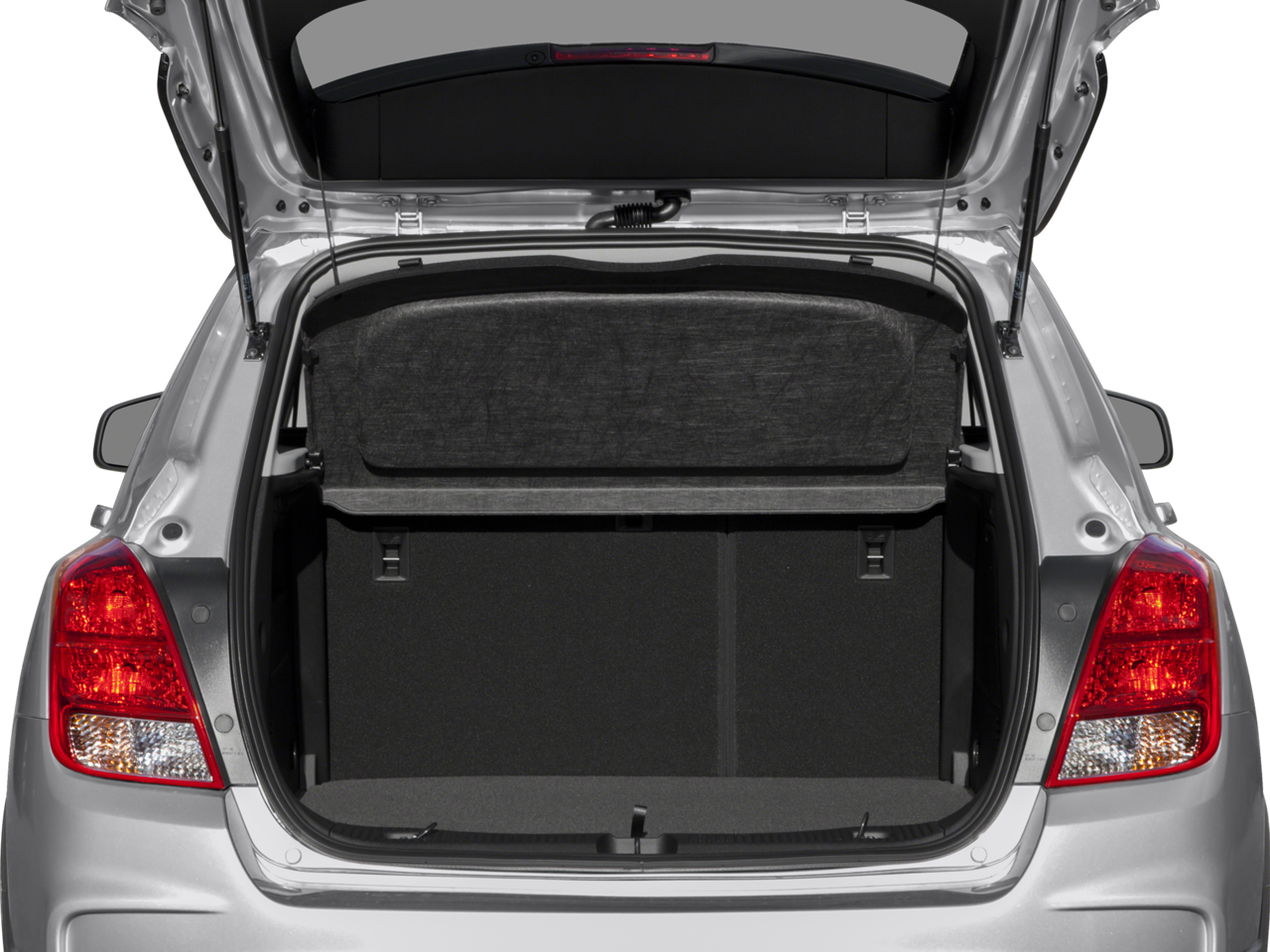

• Cargo security cover
• rigid
• removable

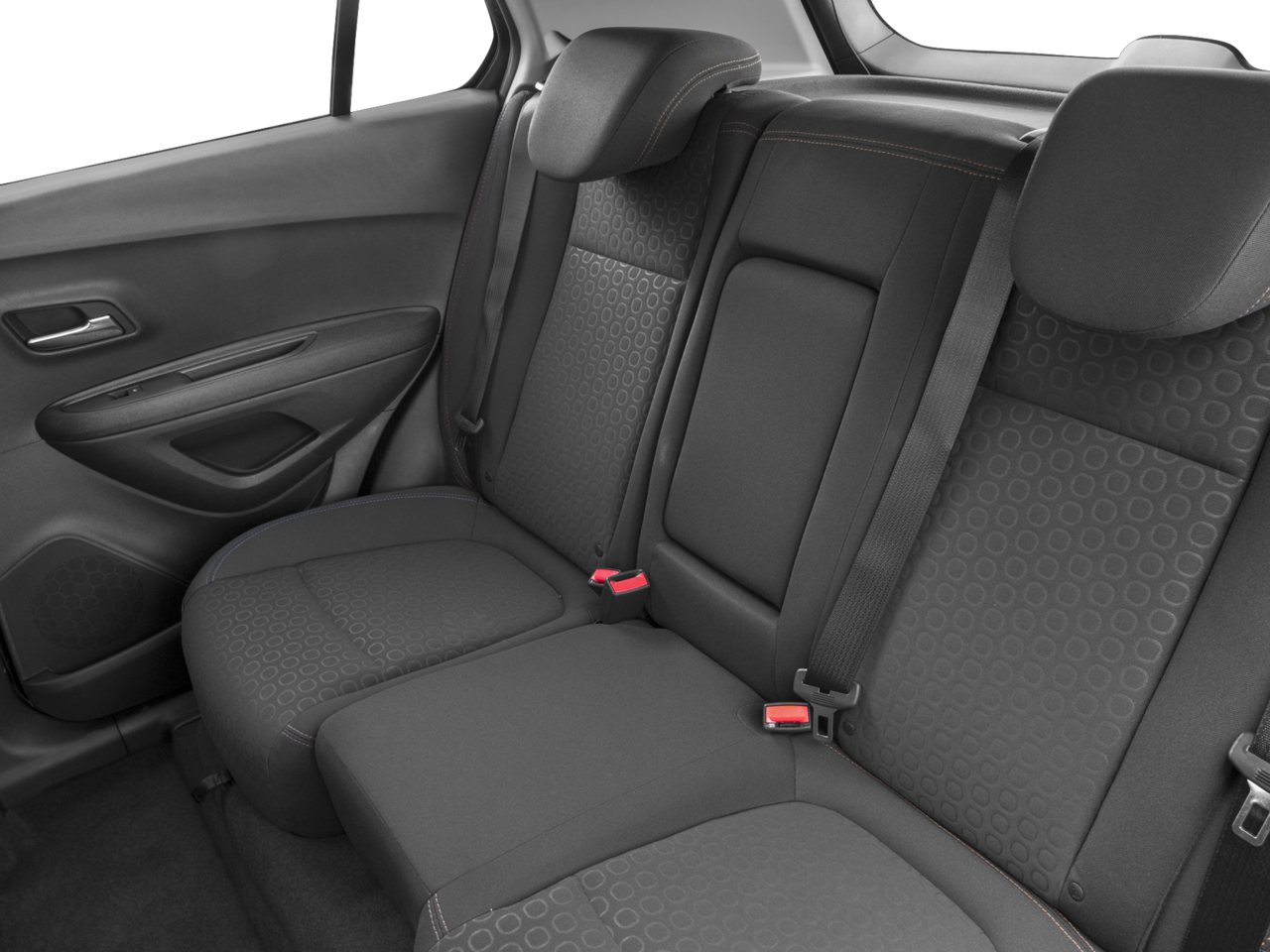

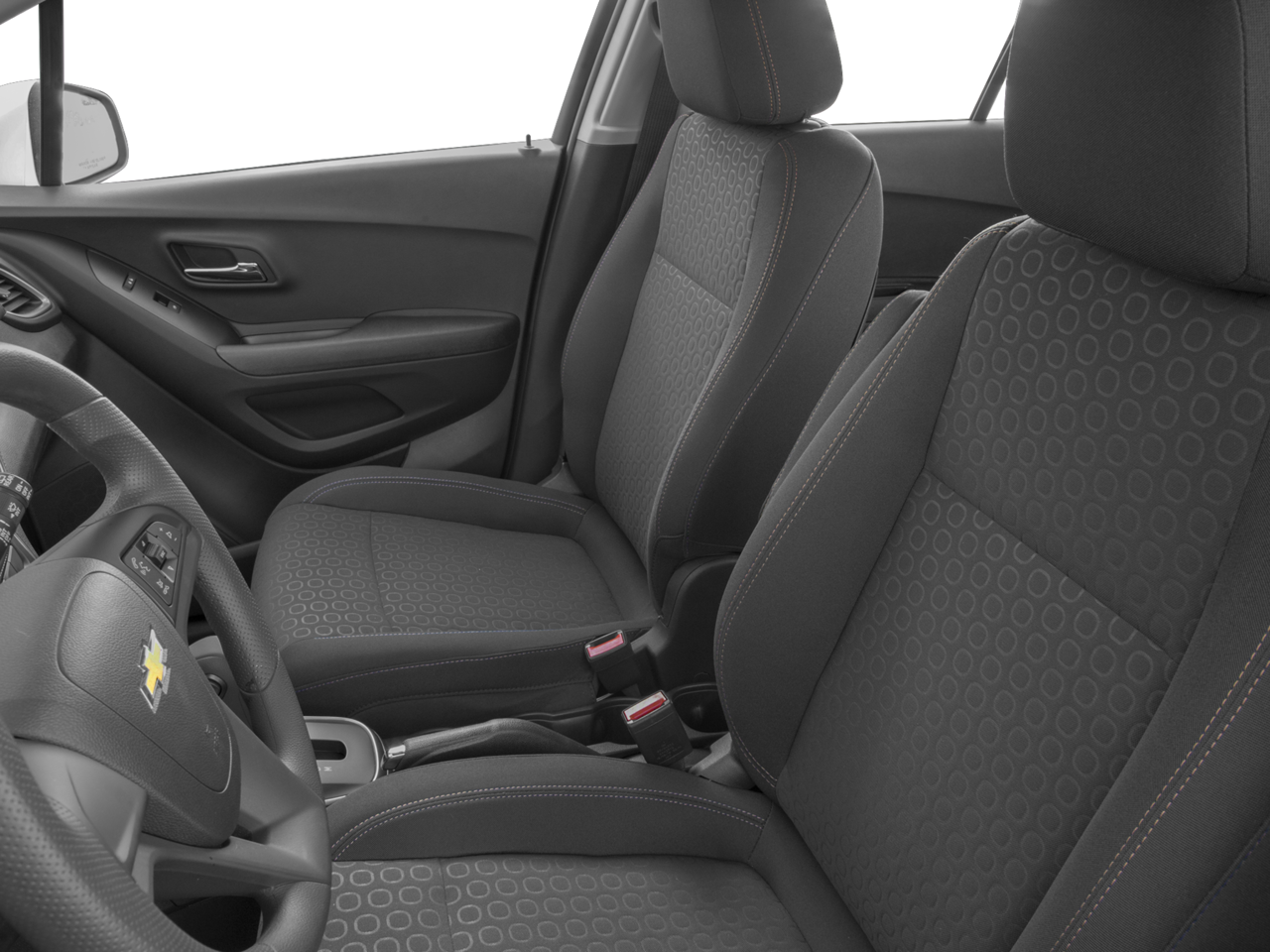

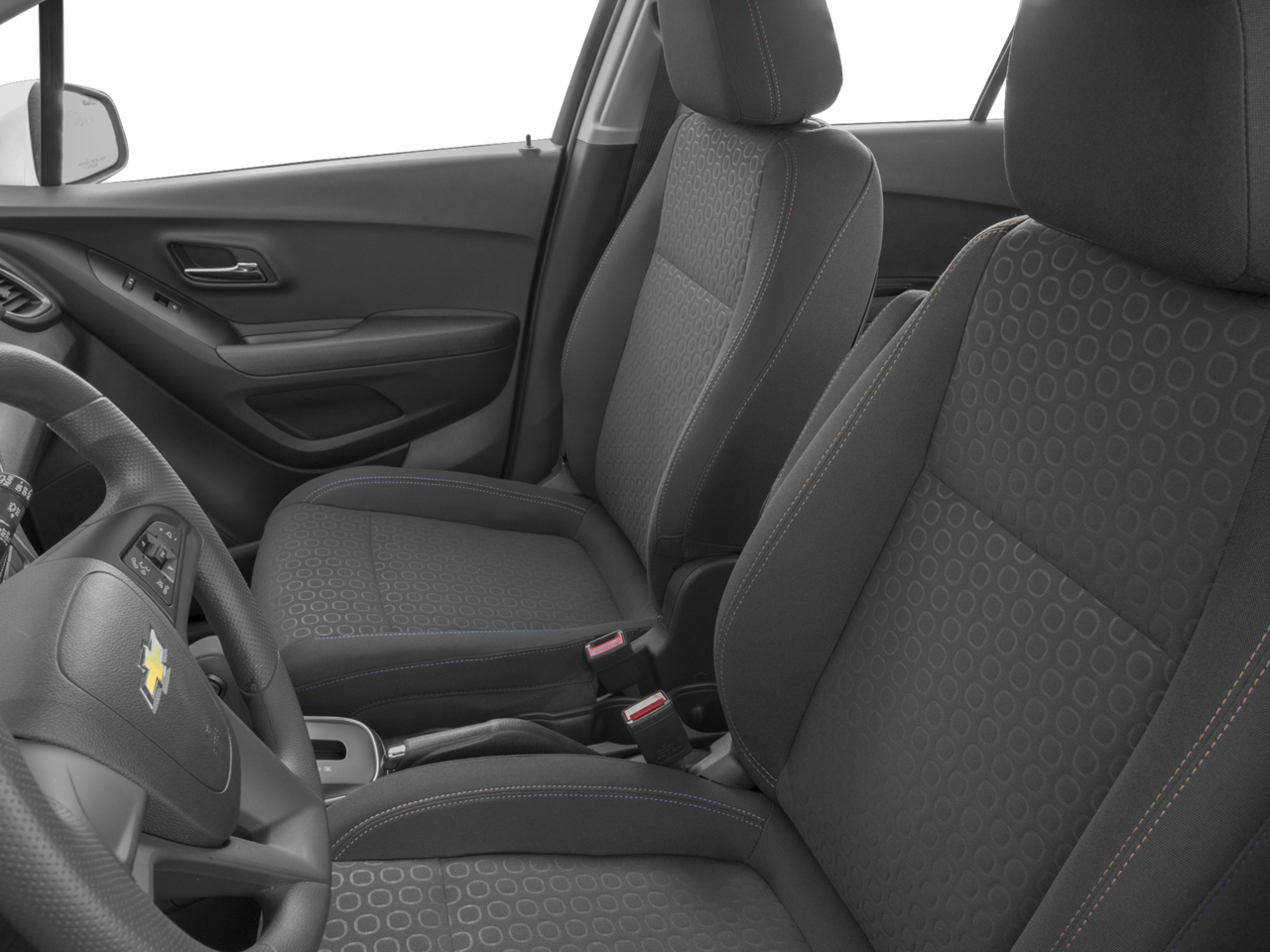

• Seat
• rear 60/40 split-bench
• folding
• Lighting
• cargo area
• dome
• Heater duct
• rear
• floor
• Air conditioning
• single-zone manual
• Cargo tie downs
• 4
• Floor mats
• color-keyed and carpeted front and rear
• Seat adjuster
• driver 4-way manual
• Seat adjuster
• front passenger 2-way manual
• Door locks
• power programmable
• Power outlet
• auxiliary
• 12-volt
• Map pocket
• driver seatback

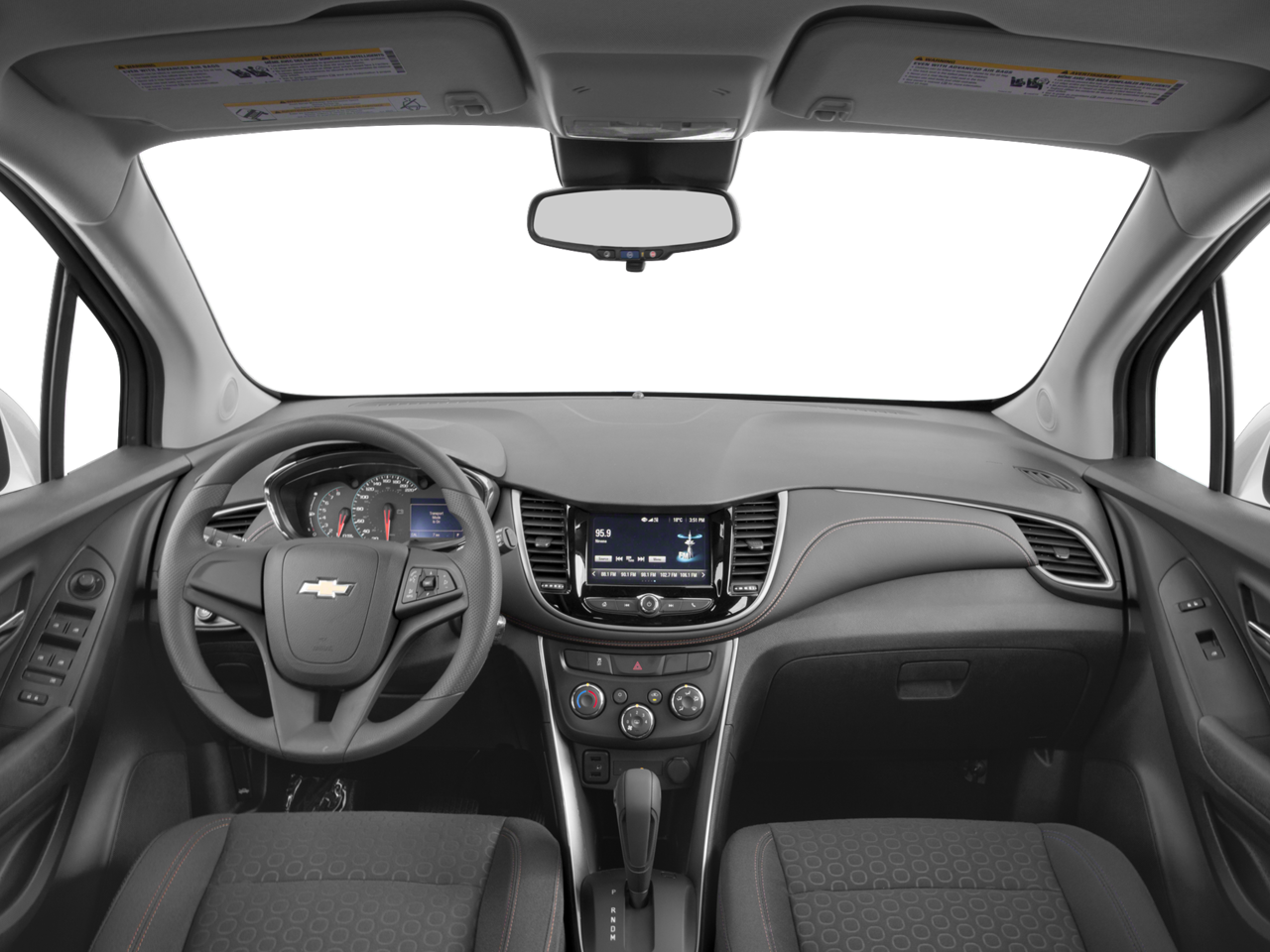

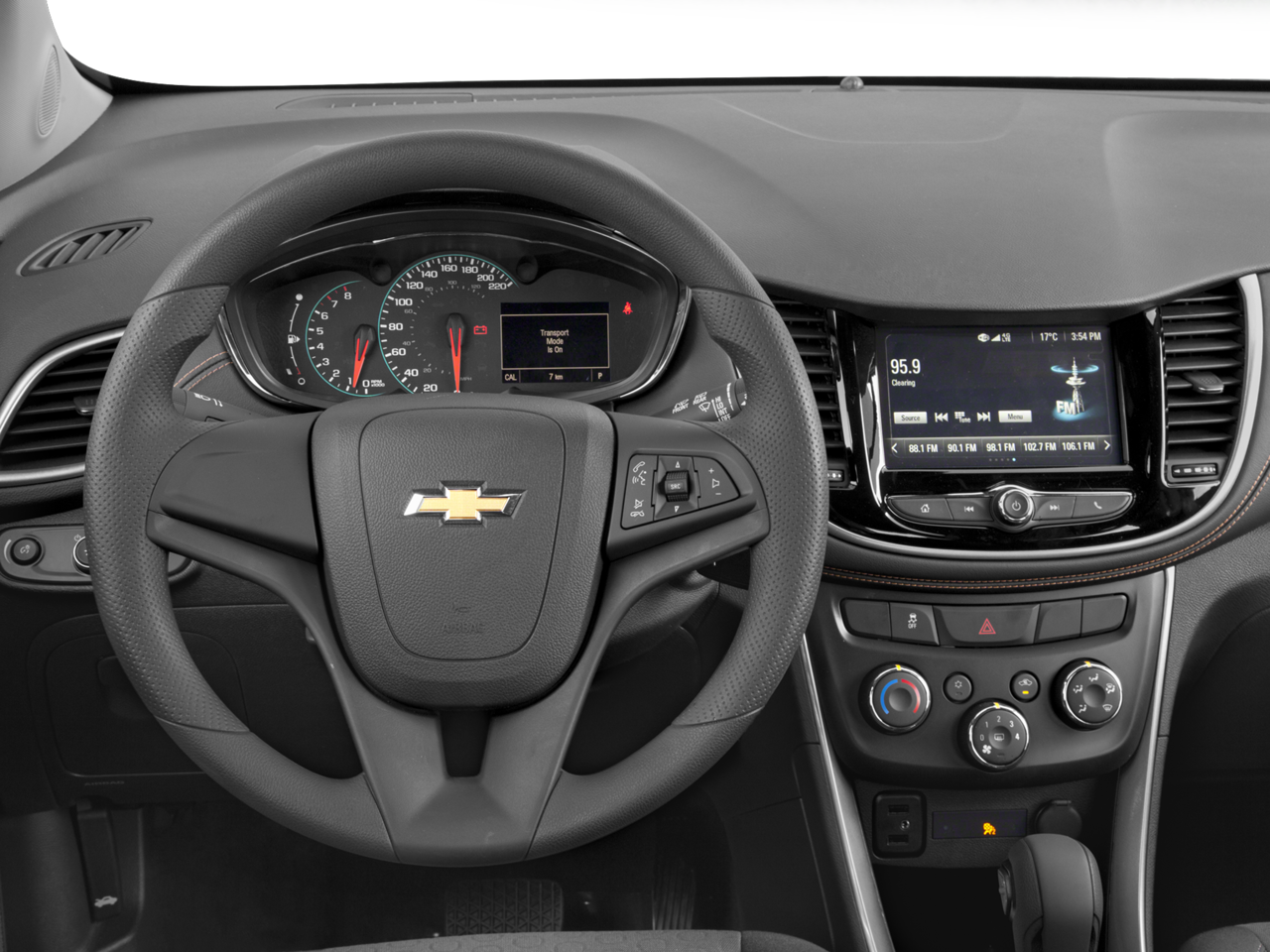

• Instrumentation with analog tachometer; digital speedometer
• odometer
• trip odometer and fuel gauge

• Vehicle
• EPA Classification: Special Purpose
• Mileage
• Fuel Economy Est-Combined (MPG): 27
• EPA Fuel Economy Est - City (MPG): 24
• EPA Fuel Economy Est - Hwy (MPG): 30
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 130
• Cooling System
• Total Cooling System Capacity (qts): 6.9
• Weight Information
• Base Curb Weight (lbs): 3208
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Torsion Beam
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.8 x 1.0
• Rear Brake Rotor Diam x Thickness (in): 10.6 x 0.5
• Tires
• Front Tire Order Code: RAJ
• Rear Tire Order Code: RAJ
• Front Tire Size: P205/70R16
• Rear Tire Size: P205/70R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: 16.1
• Lock to Lock Turns (Steering): 2.7
• Turning Diameter - Curb to Curb (ft): 36.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14.0
• Exterior Dimensions
• Wheelbase (in): 100.6
• Length, Overall (in): 167.6
• Width, Max w/o mirrors (in): 69.9
• Height, Overall (in): 64.8
• Track Width, Front (in): 60.6
• Track Width, Rear (in): 60.6
• Min Ground Clearance (in): 6.2
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -

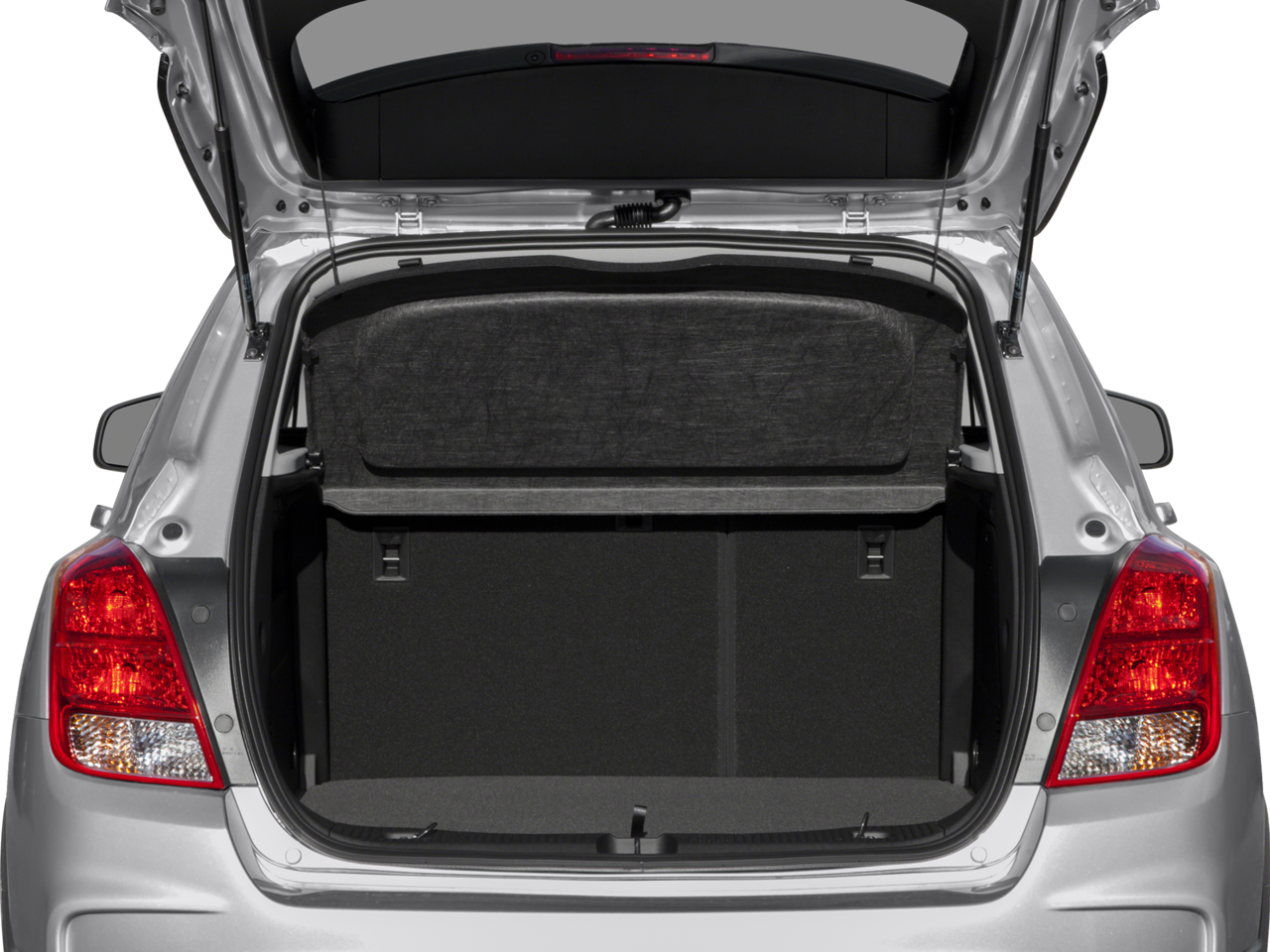

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 57.0
• Cargo Area Length @ Floor to Seat 2 (in): 29.3
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 31.8
• Cargo Volume to Seat 1 (ft³): 48.4
• Cargo Volume to Seat 2 (ft³): 18.7
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): - TBD -
• Front Head Room (in): 39.6
• Front Leg Room (in): 40.8
• Front Shoulder Room (in): 54.1
• Front Hip Room (in): 51.7
• Second Head Room (in): 38.8
• Second Leg Room (in): 35.7
• Second Shoulder Room (in): 52.8
• Second Hip Room (in): 50.7
• Summary

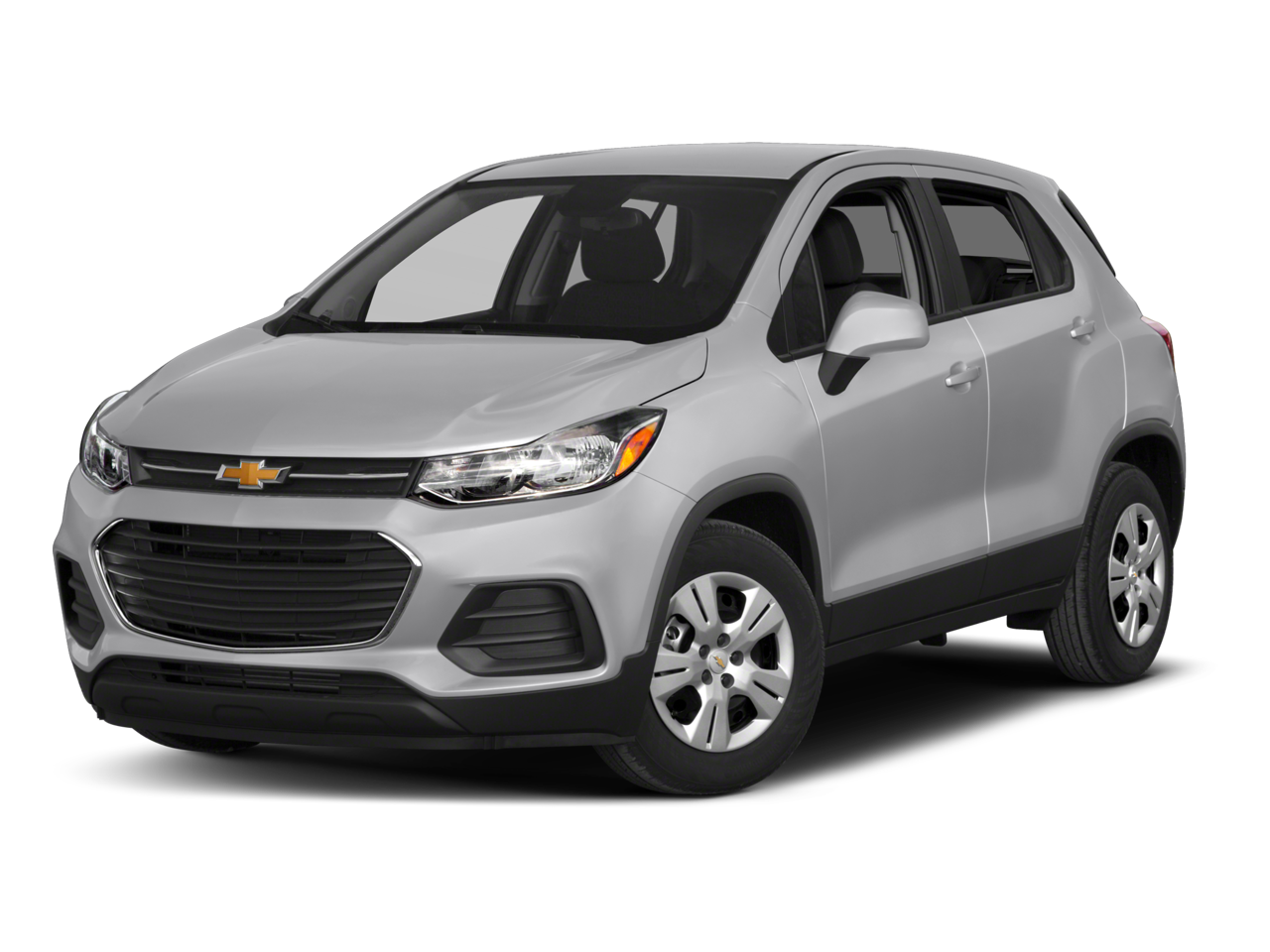

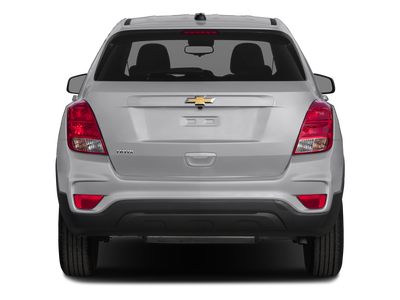

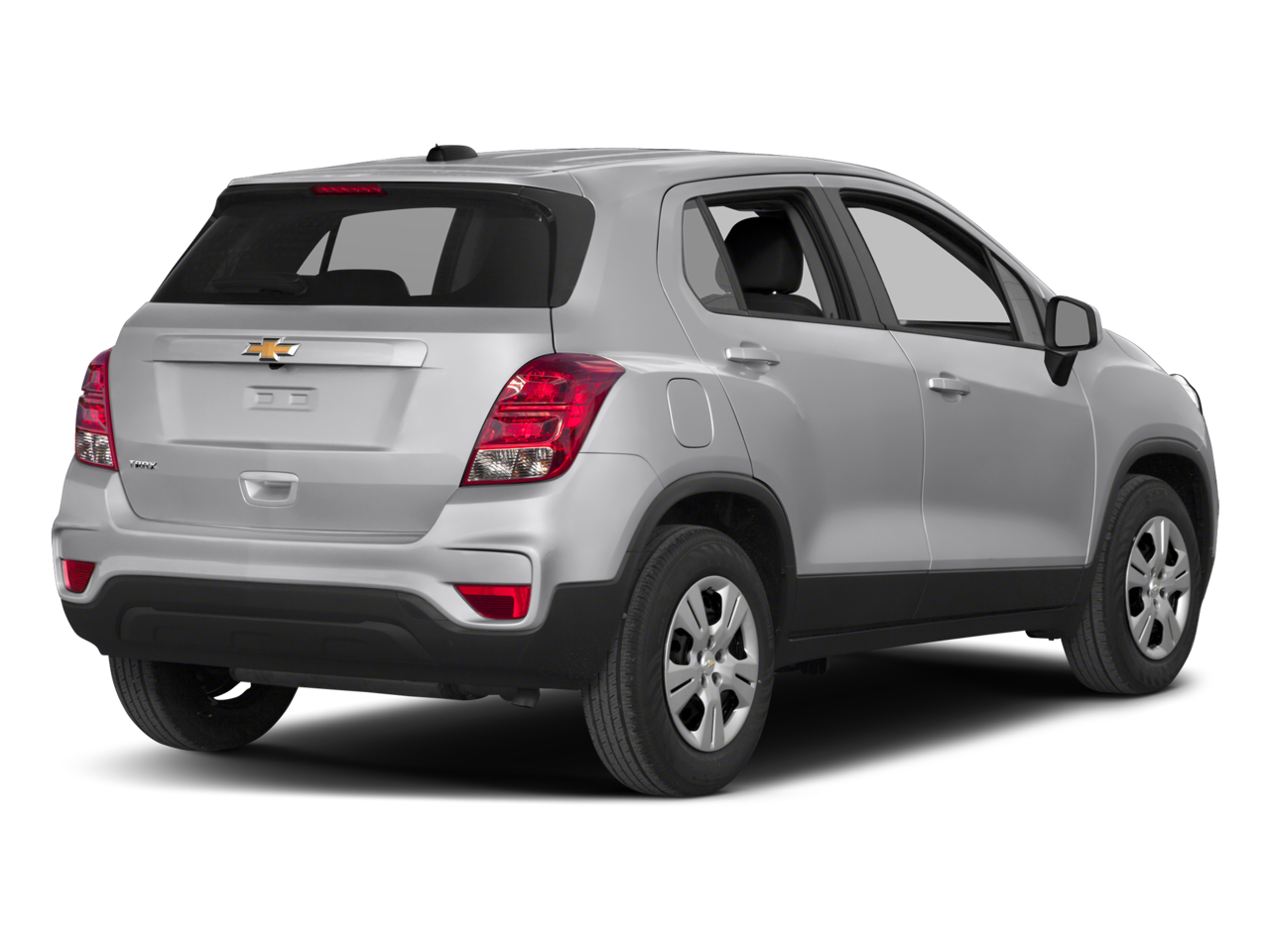

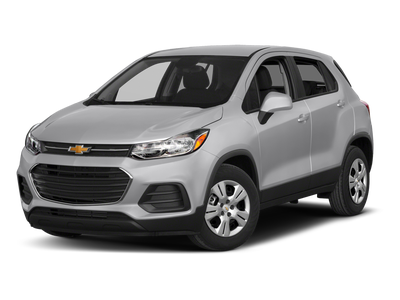

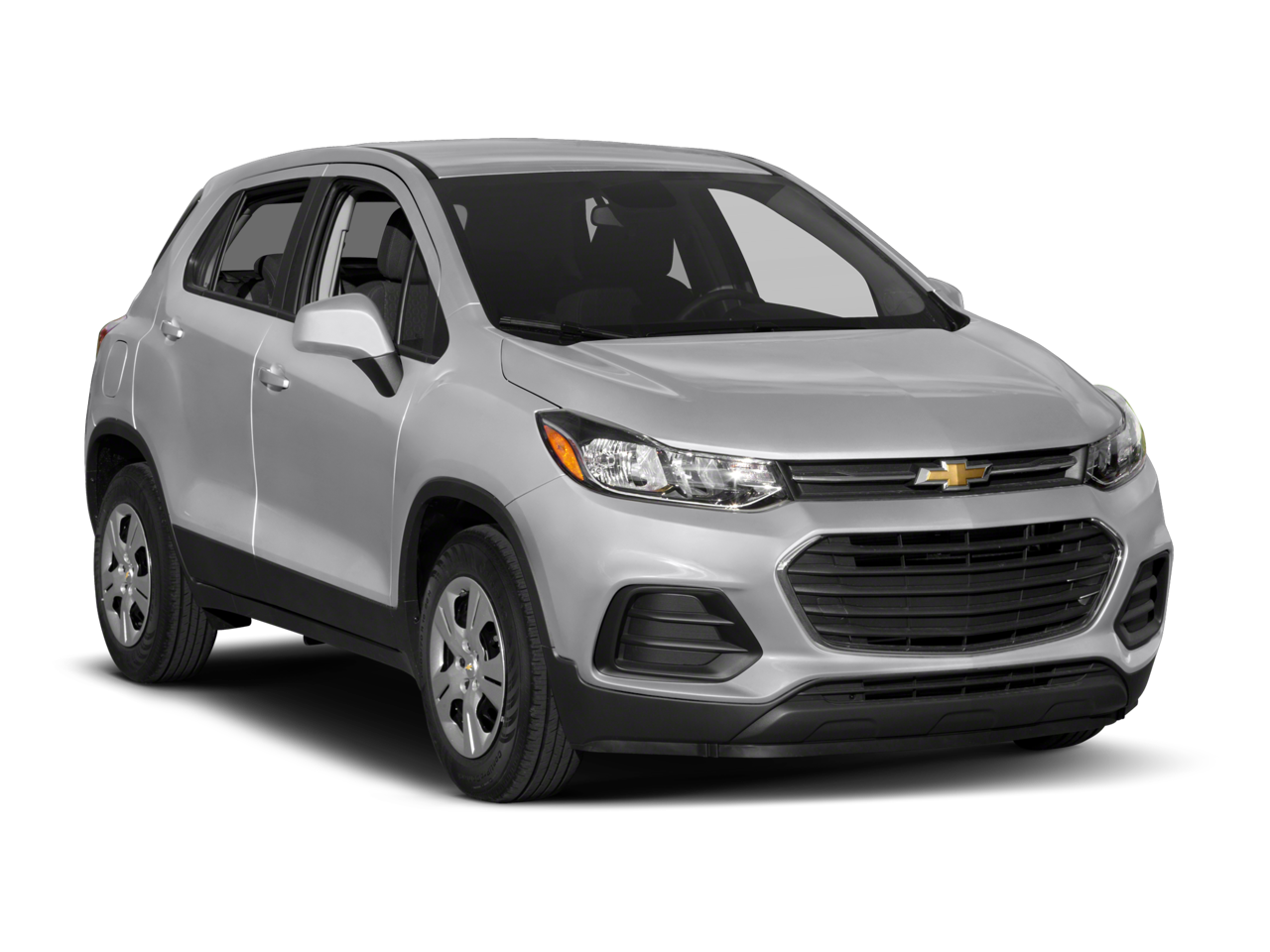

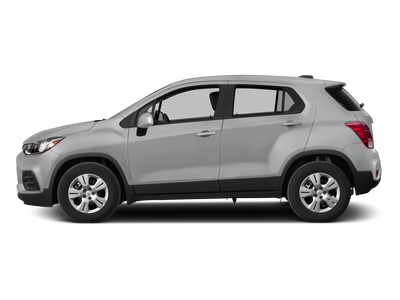

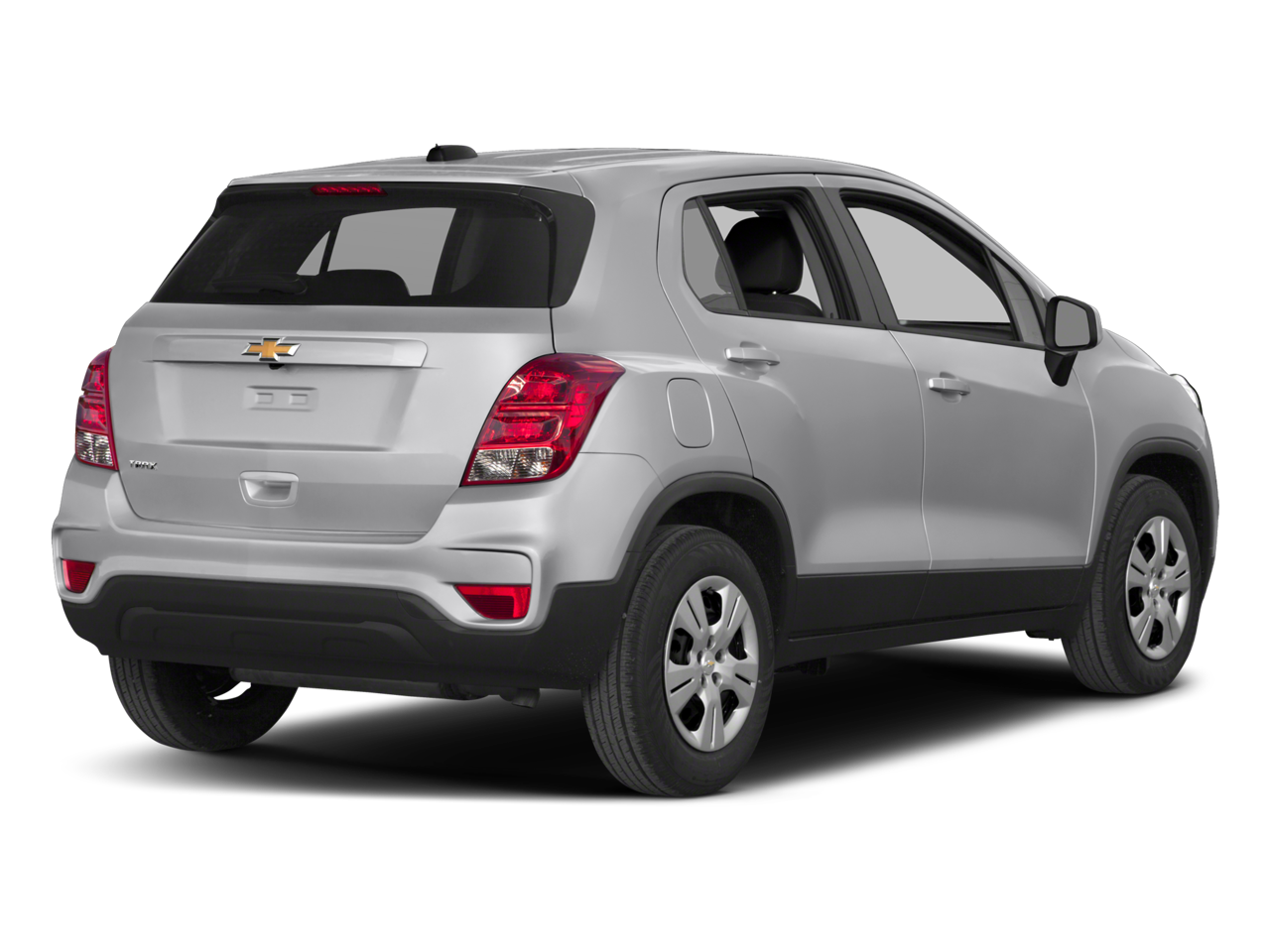

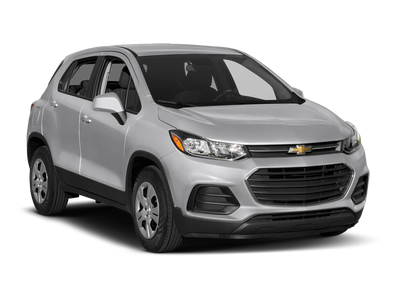

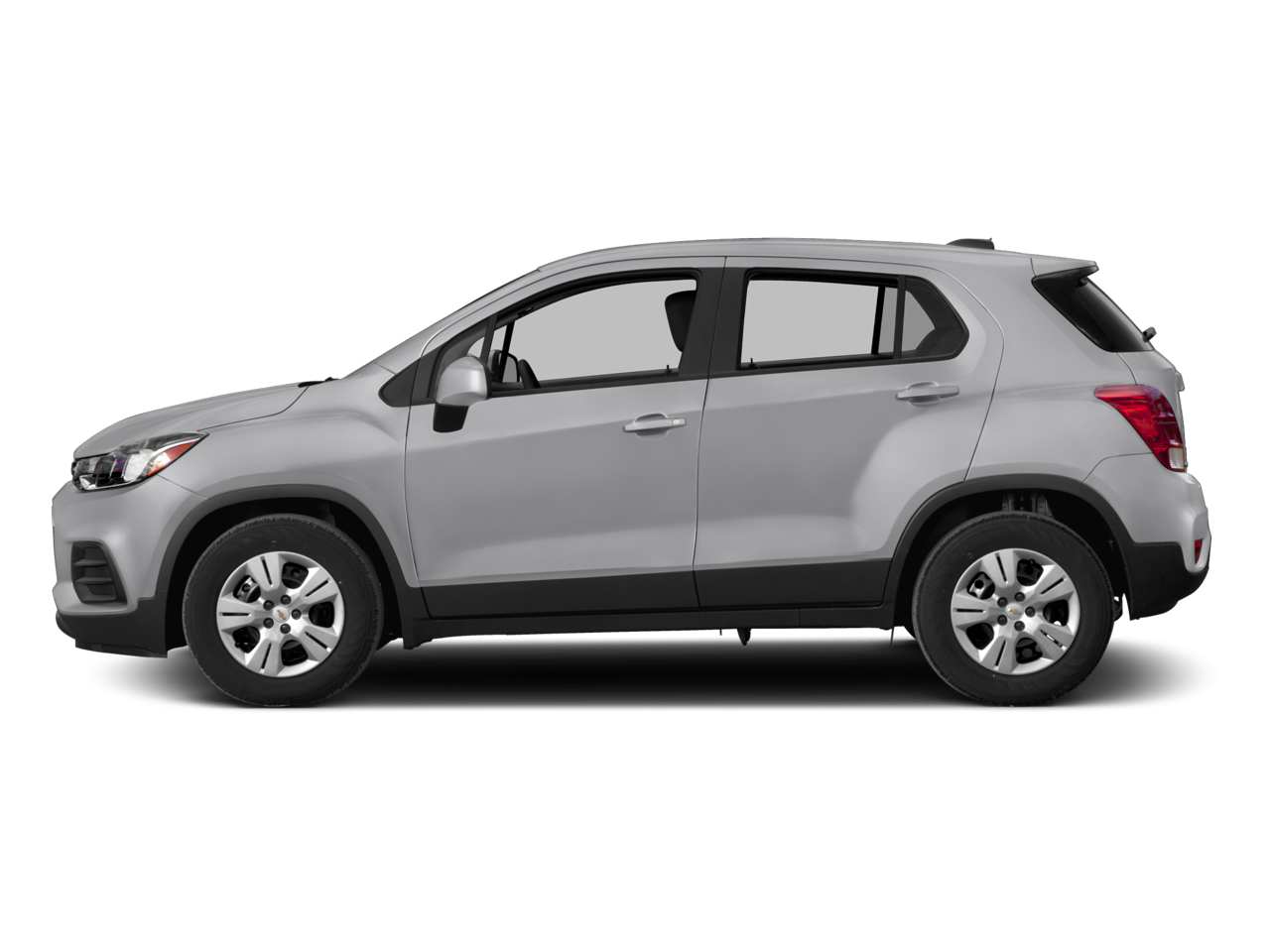

• Vehicle Name: Chevrolet Trax
• Body Style: Sport Utility Vehicle
• Emissions
• EPA Greenhouse Gas Score: 6
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.5
